10A/20A Charge Current Micro Power Inverter for Home Use

Name: 10A/20A Charge Current Micro Power Inverter for Home Use
Brand: all-electronics-online.com
SKU: 673031185
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	EP1000 500VA-2000VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
With AVR:	Max Current: (10A/20A)
Input Range:	90-280VAC
DC Input:	12V/24V
Output Wave:	Modified Sine Wave
Gw:	2.8kg
Frequency:	High Frequency
Charge Function:	Three Steps Intelligent Charging Control
Display:	LCD Display
PCB Board:	Double Layers
Name:	10A/20A Charge Current Micro Power Inverter for Ho
Phase:	Single
Power Source:	Electric Power
Brand:	Must/OEM

Product Description

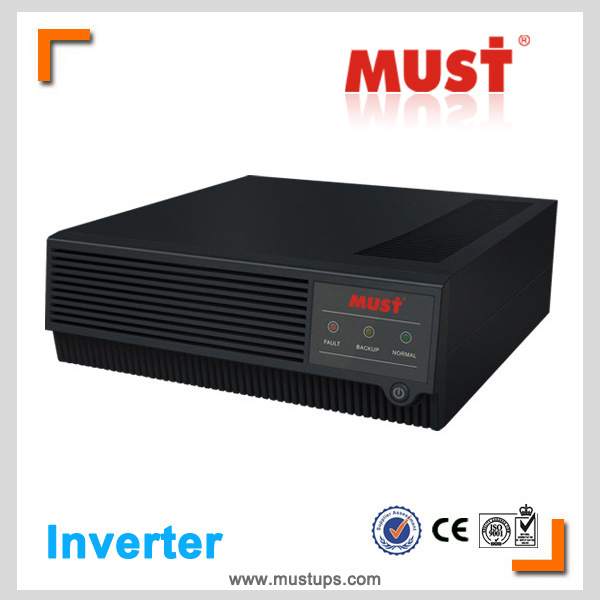

10A/20A Charge Current Micro power inverter for home use

1. Features
The EP1000 series converts DC power into AC power.With a continuous output and compact design,the units sideal for running TVs,Stereos,Laptop and computers and other home appliancies .EP1000 serie will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.

Super efficient, DC to AC conversion, minimizing charging losses
nput voltage range selection option
Fully automatic start operation
High frequency technology
Compact size and light weight
Provides critical overload protection
Eco-friendly & non-polluting (green device)
Advanced technology optimizes battery life

Model	EP1000	P500VA	P1000VA	P2000VA
Capacity	VA/W	500VA / 300W	1000VA/600W	2000VA /1200W
Input	Phase	Single
	Voltage	110 / 120VAC or 220 / 230 / 240VAC
	Voltage Range	90 - 145VAC or 170-280VAC ( Narrow Range )
		50-145VAC / 90-280VAC (Wide Range)
Output	Phase	Single
	Voltage	120VAC or 230VAC
	Voltage Regulation(Batt. Mode)	+10% ~ 18%
	Frequency	50Hz or 60Hz
	Frequency Regulation (Batt. Mode)	+/- 0.1 Hz
	Output Waveform (Batt. Mode)	Square Modified Sine wave
Power Factor	P.F.	0.6
Battery	Charger Current	10Amp + / - 1Amp		10 Amp + / - 1Amp
	Floating Voltage	13.7V + / - 0.2V		27.4V + / - 0.4V
	Overcharge Protection	14.5V +/- 0.3V charger stops and fault		29V +/- 0.6V charger stops and fault
Transfer Time	Typical	8ms
Efficiency	AC to AC	>95%
	DC to AC	>80%
Indicator	AC Mode	Green LED lighting
	Battery Mode	Yellow LED lighting
	Battery Charging Mode	Green LED flashing every 2 seconds
	Overload	Red LED flashing every 0.5 second
	Fault	Red LED lighting
Audible Alarm	Low Battery at Battery Mode	Sounding every 2 seconds
	Overload	Sounding every 0.5 second
	Fault	Continuing sounding
Protection	Full Protection	Deep Discharge, Overcharge, and Overload protection
Physical	Dimension (DWH) mm	224 X 255 X 80
	Net Weight (kg)	1.7 for 500VA / 300W
Environment	Operating Environment	0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing)
	Noise Level	Less than 45dB

Pls kindly contact Vena Tang

Shenzhen Must Power Limited established in 2010, with the headquarter in Hongkong, which is a professional hi-tech enterprise specialized in UPS, Power Inverter, Solar Power, VRLA Battery development, manufacturing, sales and after-service.

Our comprehensive product lines include:
Off-line UPS, line interactive UPS, On-line UPS, Solar inverter, Power inverters, Stabilizers and Solar battery.

Most of products from MUST applied with CE, FCC certificates. The main markets are Ukraine, Russia, Vietnam, Thailand, Pakistan, India, etc. Must Power Limited is one of the authorized suppliers for China Citic Bank, Ministry of Information Industry of China, Ministry of Power Industry of China, Ministry of Transportations of China.

With an excellent R & D team formed by over 30 engineers and a skilled, dedicated workforce, together 10, 000 square meter in-house manufacturing facilities in Guangdong China, Shenzhen Must Power Limited has innovated, developed and improved the products to meet the demands of customers and keep pace with changing demands of the industries. With 'close to customer' notion, we have aligned most of its resources to support our Original Equipment Manufacturer (OEM) customers, and work with our customers as power partners. Our mission is to be the best supplier of power solutions, and to accomplish this, we will continue to tailor products for market needs while maintaining high quality, integrated customer service and prompt delivery.
