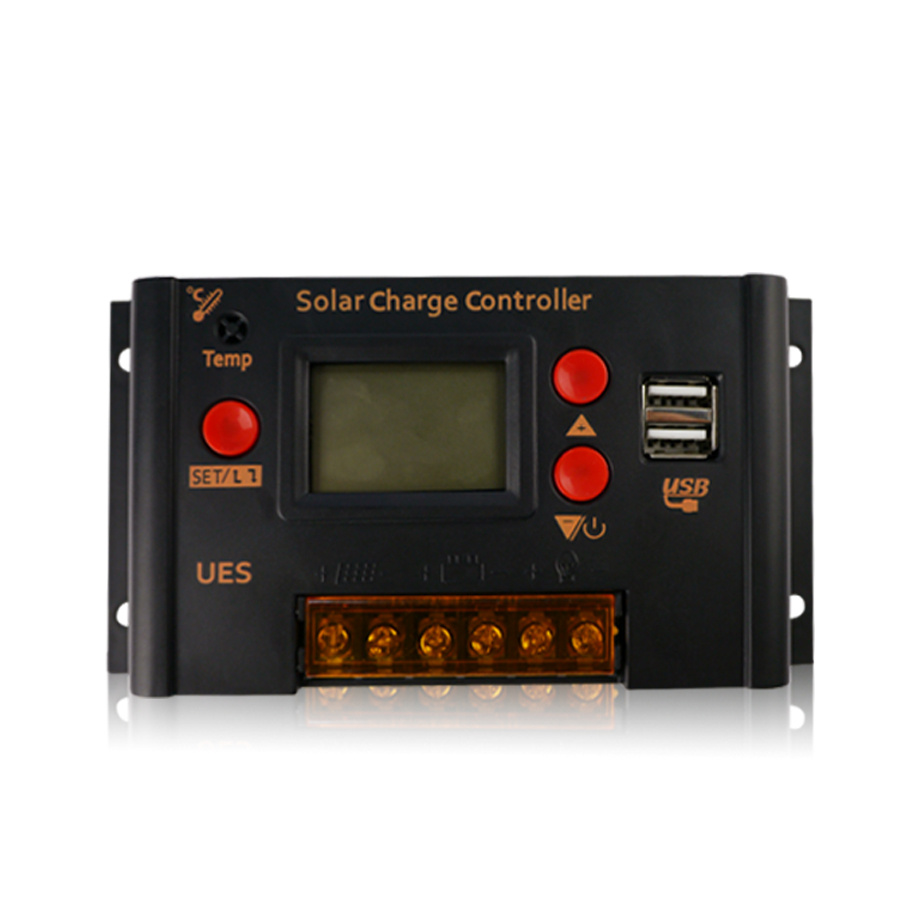

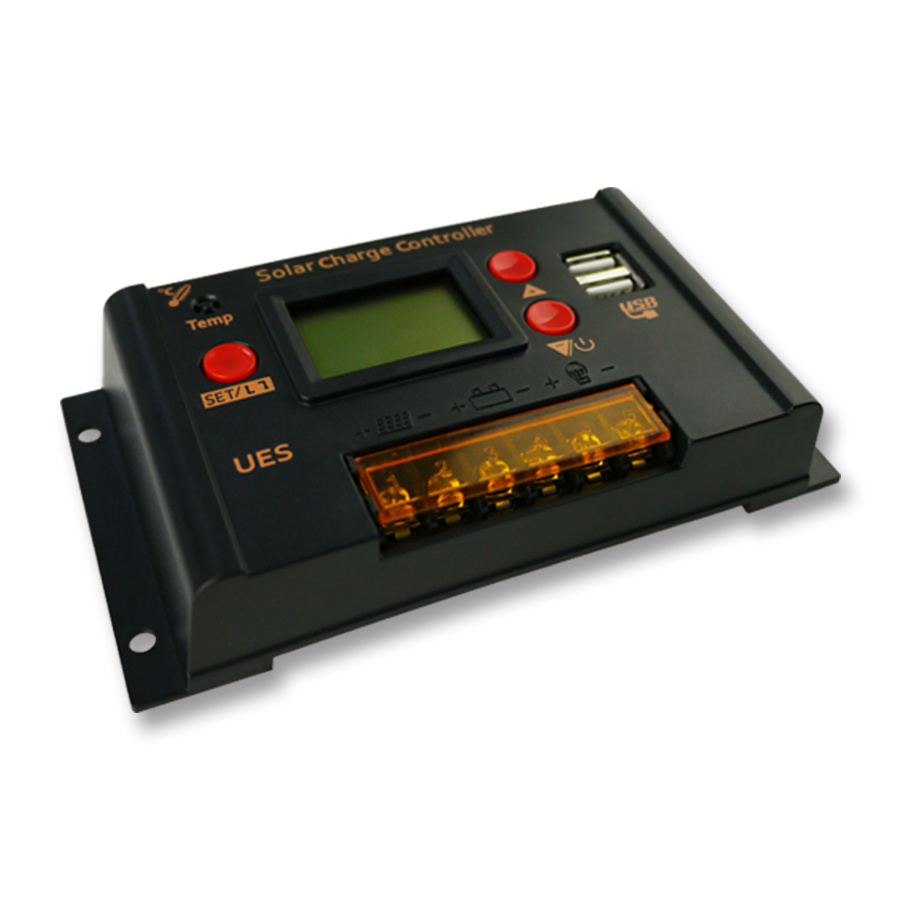

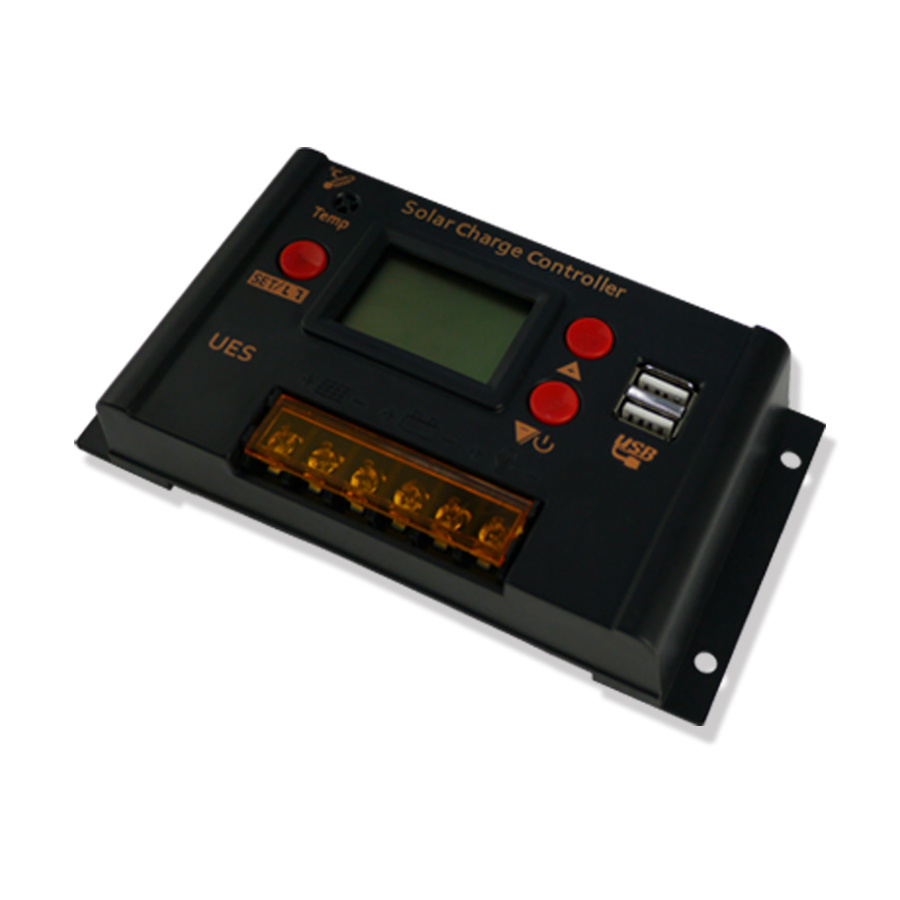

10A/20A Intelligent, Multi-Functional Solar Charge and Discharge Controller

10A/20A Intelligent, Multi-Functional Solar Charge and Discharge Controller
Price: US $ 8.38-9.98/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: UES-2410/2420
Application: Special Equipment
Signal Transmission: IR Remote Control
Certification: CE
Universal: Universal
Transmission Distance: <50m
Voltage: 12V
Material: Plastic
Type: Electric
Battery Type: No

Product Description

1. Product Introduction

       UES series solar charge controller is a kind of intelligent, multi-functional solar charge and discharge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.
This controller has the following features:
Visual LCD graphic symbolBrief key operation
Automatic identification system voltage levelIntelligent PWM charge mode
Automatic temperature compensationMultiple selection of battery
Adjustable charge-discharge control parametersSettable operating modes of loads
Accumulated function of charge and discharge ampere hoursBattery over temperature protection
Battery low voltage protectionBattery reverses polarity protection
Overload & short circuit protectionWith Dual USB 5V output


2. Specification

ModelUES-2410UES-2420
Max. charge current10A20A
Max. discharge current10A20A
Max. solar panel input voltage≤55V
Rated voltage12V/24V auto work
Stop charge voltage14.7V/29.4V
Low voltage recovery12.2V/24.4V
Low voltage protection10.5V/21.0V
USB output voltage/current5V 2A
CharacteristicNo load loss:≤10mA; Temperature compensation:-3mV/cell/ºC
Operation temperature-20ºC~60ºC
Dimension of controller152×80.2×30mm (L*W*H)
Package size163×95×40mm (L*W*H)
Weight200g
*Parameters may be customized by customers.
