| Prod Model: |
KSD301(manual/reset) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

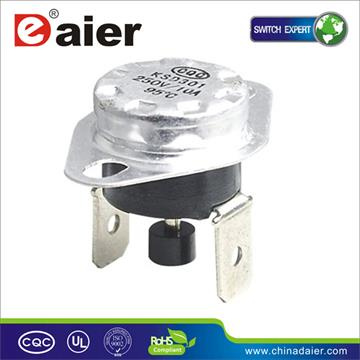

10A 250V Ksd301 Water Heater Thermostat |
| Current: |
10/15 |
| Voltage: |
250VAC |
| Form: |
No/Nc/Manual Reset |
| Conpose: |
Manual/Reset/Electric |
| MOQ: |
4000PCS/Cuton |
| Kg: |
22.4kgs/4000PCS |
| Scope Of Trial: |
Generators, Motor, Electric Appliance and So on |
| Fress Sample: |
Yes |
| OEM: |
Yes |
| Usage: |
Air Purifier |
| Certification: |
CCC |
| Control Type: |
Mechanical |
| Type: |
Temperature Controller |
| Material: |
Aluminium |
| Display Type: |
No |
| Brand: |
Daier |
Product Description
10A 250V KSD301 Water Heater Thermostat--10A 250V KSD301 Water Heater Thermostat,when the temperature was raised to set the operating temperature, the bimetal moves to cut off the working status through a transmission mechanism; When the temperature drops below the set reset temperature, the bimetal reset, returned to work state through a transmission mechanism,.--Insulation, good moisture resistant, suitable for general contact temperature and ambient temperature, widely applied in temperature control and overheating protection appliances, use of stable performance.Advantage| NO.1 | Good quality! |
| NO.2 | 10 years manature! |
| NO.3 | Many types of circuit breaker switch we can supply |
| NO.4 | High quality, competitive price, great service! |
| NO.5 | The best indicator light at the best price! |

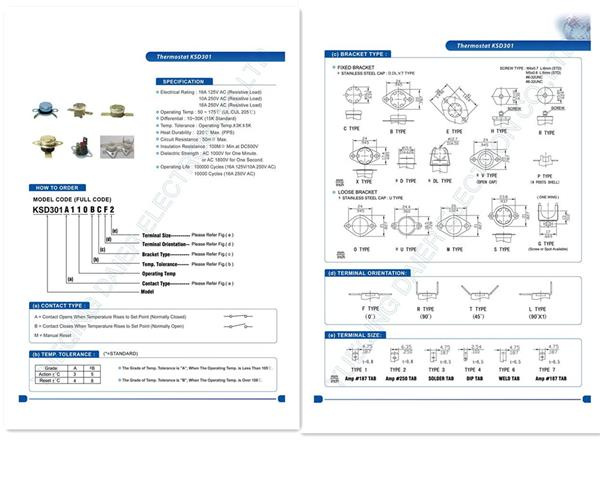

The Basic Technical Parameters | Electrical Rating | 16A 125VAC(Resistive Load)
10A 125VAC(Resistive Load)
16A 125VAC(Resistive Load) |
| Operating Temp | 50~175C(UL,CUL 205C) |
| Differential | 10~30K(15K Standard) |
| Temp.Tolerance:Operating Temp | ±3K±5K |
| Heat Durability | 220C Max.(PPS) |
| Circuit Resistance | 50MΩ Max |
| Insulation Resistance | 100MΩ Min .at DC200V |
| Dielectic Strength | AC 1000 for 1 Minute Or AC 1800V For 1 Second |
| Operating Life | 100000 Cycles(16A 250VAC/10A 250VAC)
10000 Cycles(16A 250VAC) |
Main Technical Parameters| Experimental Current | Starting Condition | Experimental Time | Expect Result |
| 1In | Cold Start | 1h | Not Trip |
| 1.5In | Followed The Experiment | t<=1h | Trip |
| 2In | Cold Start | (t1)2s≤t≤60s(t2) | Trip |
| 6In | Cold Start | (t3)0.1s≤t≤2ss(t4) | Trip |
| 10In | Cold Start | (t5)0.02s≤t≤0.5s(t6) | Trip |

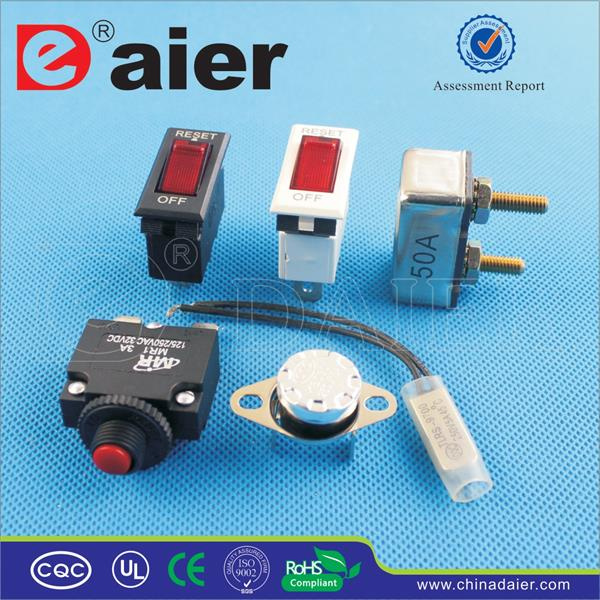

PRODUCT SHOW
SHIPPING && PAYMENTPackaging Detail: Ship worldwide by sea,by air or by express like DHL, UPS, TNT, FEDEX,CHINA POST
Payment Detail: Paypal, T/T, Western union, MoneyGram, or other methods.
COMPAY INFORMATIONDaier Electronics Co.,ltd is a professional manufacturer of electromechanical switches in Yueqing, China. Our factory covers an area of over 5,000 square meters, having a total staff of over 200 members. We are engaged in producing 9 categories and about 4,000 models of switches,indicator,sockets,plugs,guitar parts and so on. With a principle of being creative, advancedand honest, we are always improving our products and services to better satisfy you customers.
OUR SERVICE
Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP.
Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Free sample is available!
If you need any parts, please kindly send us your drawing or sample for quotation.
