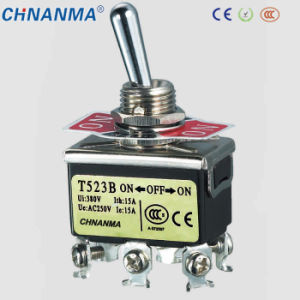

10A 250VAC /15A 125VAC Double Pole Double Throw Electric Toggle Switch 125V for Coffee Maker Switch Nt-23b

Name: 10A 250VAC /15A 125VAC Double Pole Double Throw Electric Toggle Switch 125V for Coffee Maker Switch Nt-23b
Brand: all-electronics-online.com
SKU: 728261982
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 2.3-2.55/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NT-23B

Product Description

Adopt thermoplastic crust,compact construction,and simple installation;
May install the protecting cap,can against oiland dustproof;
Hand reset and automatic reset for flexible choice;
Widely used in electrical equioment,automatic machine communication equipment
and ilstrument,electro tool etc.

Specification

Item		Data
Rating load		15A/250VAC,25A/250VAC MTS:6A/125,250V
Operating frequency		30 times/min
Insulation resistance		100MΩ(above)DC500V
Contact resistance		25MΩ(initial value)
Withstand voltage	Non-connection wire	1000VAC
Vibration	Every terminal	1500VAC
Impact	Durable	10-55Hz amplitude 1.5mm
	Misoperation	1000m/s2
Life	Electrial	100,000 above
	Mechanical	500,000 above
Protection degree		IP40
Operating temperature		-25~+80ºC
Operating humidity		<85%

Application Attentions

According to the difference of load and current value,rated load should be faken note.Current value of this series is 10A and 15A;
When transporting and moving,pls take note of the short circuit or open circuit may happen in internal wiring;
Pls take note of the leve of protection when used in water,oil and dug dust. This series has protective tupe and unprotective type;
The immediate cause for broken is stress and attack, pls. pay attention;
Warning mark "Danger! High Voltage" and "Take note" remind us pay attention to personnel safely and correctly operation.

Product Description

Current: 10A and 15A
Movement way: Fixed type and spring return type (both single-throw and double-throw can return)
Terminal block:screw terminal and solder terminal(tab terminal also can be used)
Rainproof cap,water-proof and oil-proof,it is suitable for full series products

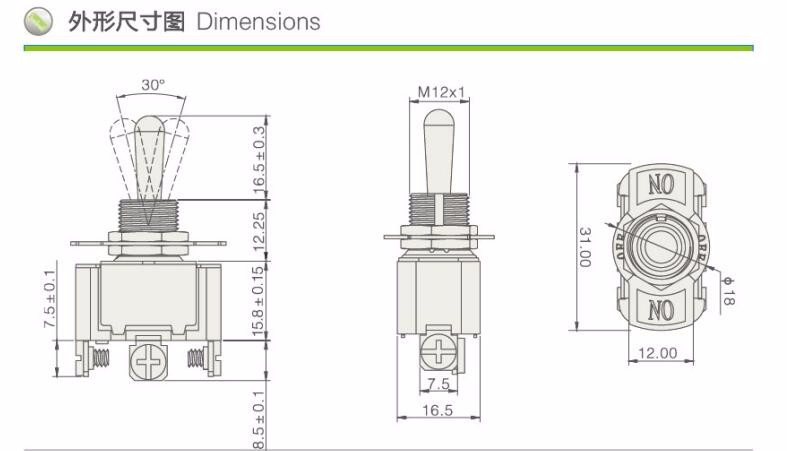

Mounting hole: 12mm
Widely used in Electrical equipment,automatic machine,communication equipment and instrument,electro moton tool etc.

FAQ

Q1. Can I have a sample order for Toggle Switch?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
