Beijing GFUVE Electronics Co., Ltd. >> 10A/5mA High Accuracy Clamp Split Core Current Sensor

10A/5mA High Accuracy Clamp Split Core Current Sensor

10A/5mA High Accuracy Clamp Split Core Current Sensor
Price: US $ 80/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: Q8A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Q8a: Split Core Current Sensor
Operating Temperature: -20~55
Class: 0.1, 0.2
Measuring Range: 0~10A
Dimensions: 44mm*165.5mm*26.5mm
Jaw Diameter: 8mm
Weight: 300g
Output Signal: 0-10mA
Ratio: 10A/10mA, 10A/5mA
Color: Black
Application: Instruments

Product Description

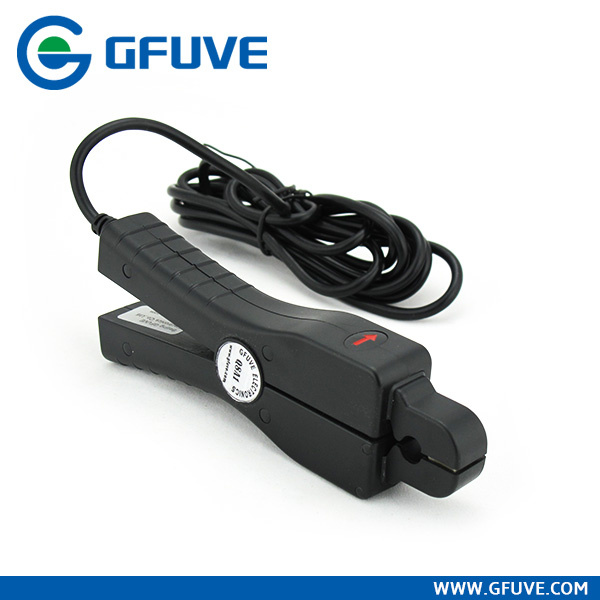

Q8A 10A/5mA High Accuracy Clamp Split Core Current Sensor
Product Description
Portable approved current clamp sensor belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.
Characteristic and application
L Suitable for 5A, 10A cable online measurement.
L Holding wire diameter: φ 8mm
L Dimension: 42.6mm × 122.5mm × 23mm
L Load capacity: ≤ 4Ω
L Installation: Clamp type
L Output mode: Lead output

Primary current
Secondary currentCompensation turnsPrecision
5A2mANoClass 0.1%
5A2mA200 turnsClass 0.1%
5A2mA250 turnsClass 0.1%
5A2.5mANoClass 0.1%
5A5mANoClass 0.1%
5A5mA200 turnsClass 0.1%
5A5mA200 turns +500 turnsClass 0.1%
5A5mA1000 turnsClass 0.1%
5A5mA1500 turnsClass 0.2%
5A10mANoClass 0.1%
10A2.5mANoClass 0.1%
10A3.125mANoClass 0.1%
10A4mANoClass 0.1%
10A5mANoClass 0.1%
10A10mANoClass 0.1%

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
