Zhejiang NCR Industrial Co., Ltd. >> 10A Mini Basic Microswitch Hinge Lever (NL-5Z / NL-10Z)

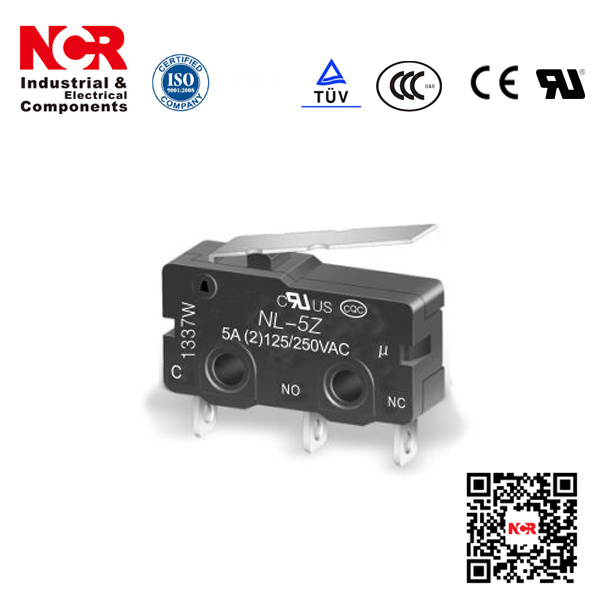

10A Mini Basic Microswitch Hinge Lever (NL-5Z / NL-10Z)

10A Mini Basic Microswitch Hinge Lever (NL-5Z / NL-10Z)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 120/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: NL-5Z / NL-10Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min. Voltage: DC5V 160mA
Color: Black
Contact Form: Spdt / Spst-Nc / Spst-No
Contact: Silver Alloy
Rating: 10A / 5A 125/ 250VAC
Certificate: Enec,CQC,UL,RoHS
Pressing Type: Push-Button
Number Of Switch: Mirco Switch
Size: Mini
Brand: Nnc

Product Description

10A  Mini basic  Microswitch Hinge Lever(NL-5Z / NL-10Z)

Place of Origin:  Zhejiang China (Mainland)
Max. Current:  10A/ 5A
Protection Level:  IP40
Contact Gap: 0.5mm
Economical, subminiature micro switch offers long service life.
All models are free from overtravel restrictions, permit easy setting.
Standard operating force, low force force models available.
RoHS Compliant.


NCR Industrial:

A) P. C. B Relays for household appliance industry

B) Latching Relays/Shunts/C. T. For Energy meter industry

C) Eletricity Measuring Meters

With professional manufacturing and reliable design concept, NCR is supplying superior Latching Relay, Shunt and Current Transformer to worldwide meter producers.

With decades of manufacturing experience, we are now enjoying a high reputation in the metering field worldwide. Our product range include Latching Relay and Shunt/Current Transformer used for 60-200A single & three phase energy meter. We have over 10000sqm production facilities, several automatic and semi-automatic production lines. With strong R&D capability, we are offering our clients one-step customized solutions and service.

Based on ISO9000 quality standard, we have set up strict IQC, IPQC and FQC system in our manufacturing, to ensure quality meeting IEC62055-31 standard and customer's requirements.

We'll always keep the spirit "offering the best products and outstanding service", to go along with all our clients together. By continuous steps, NCR is efforting to offer better products and more professional solutions to our users.

"Nice, Content, Reliable. It's NCR.
