10AMP 24V DC to 12V DC Power Converter Inverter with Auto Operation Fan

Name: 10AMP 24V DC to 12V DC Power Converter Inverter with Auto Operation Fan
Brand: all-electronics-online.com
SKU: 834717135
Availability: InStock
Rating: 4.4 (31 reviews)

Price:	US $ 14.5-16.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV2412-10

Product Description

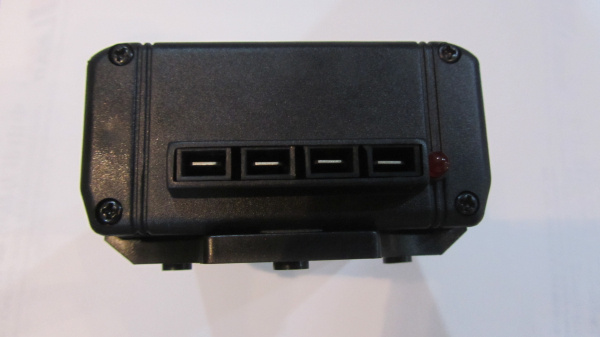

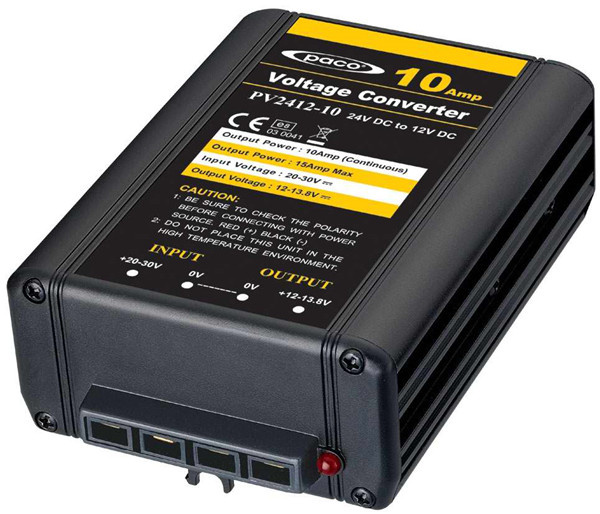

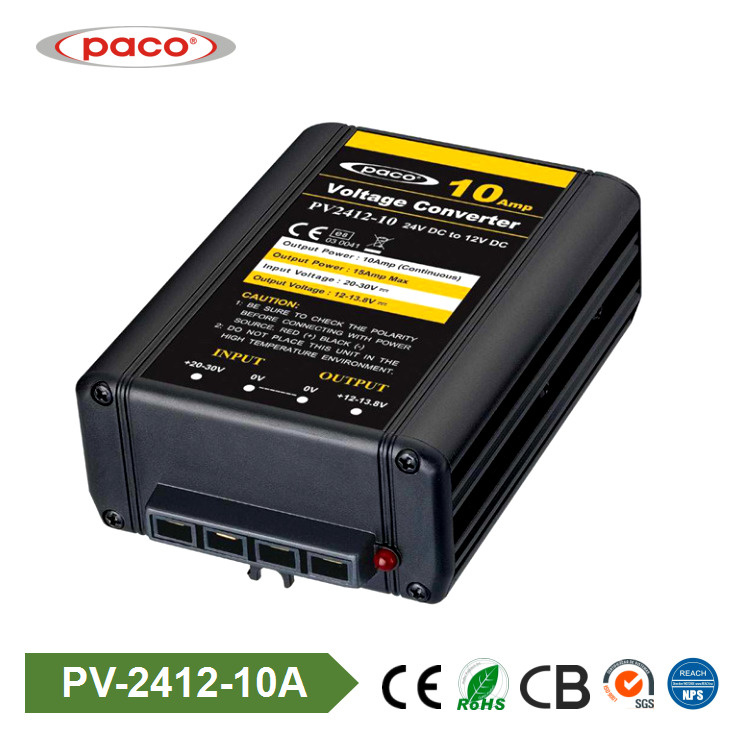

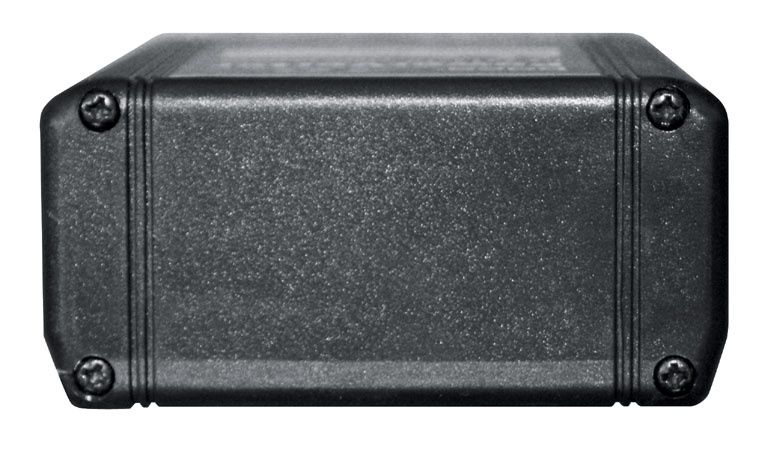

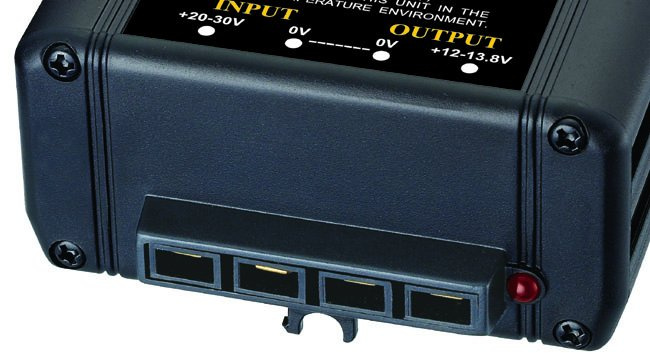

10Amp 24v dc to 12v dc power converter inverter with auto operation fan

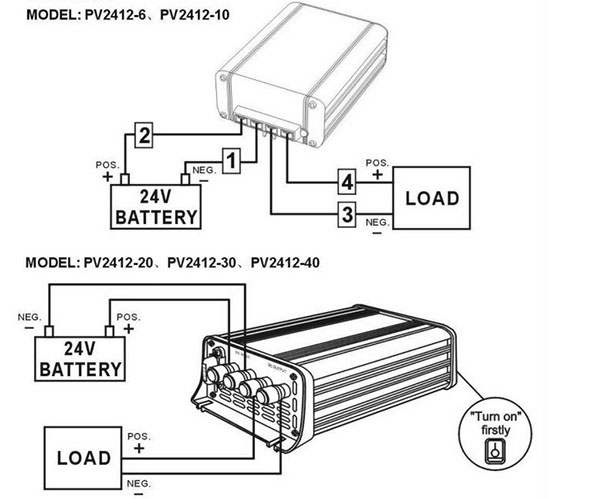

CONNECTION:

SPECIFICATION:

Input voltage	20-30V DC
Output voltage	12V DC to 13.8V DC
Standby current	≤95mA
Output power	60A (continuous), 90A (maximum)
Input fuse	2X30A, Standard auto blade fuse (external*)
Connection cable	8.0mm2 / 900mm
Efficiency	85% to 90%
Thermal shutdown	65°C+/-5°C
Input polarity reverse	diode protection
Output short	circuit protection
Overheating	circuit protection
Output polarity reverse	circuit protection
Operating temperature	0~40°C
Storage temperature	-15°C~45°C
Operating relative humidity	10%RH~102%RH,
Compliant standards	CE, EN61000, 2006/28/EC.
Dimension	243 x 170 x 82mm
Net weight	1.7kg

Ligao (Zhongshan) Electrical Appliance Co., Ltd has over 20 years of experience in design, manufacturing and marketing of solar supply products and electrical appliances. Conducted by ISO 9001: 2008, with CE, CB, RoHS approvals from SGS, we only provide high quality products.

Our products include:

Power inverter
Battery charger
Automatic voltage regulator (stabilizer)
Uninterrupted power supply (UPS)
Car cooler and warmer
Wireless digital doorbell
TV antenna

Covering an area of 40, 000m², with over 500 workers, our factory is capable of providing OEM and ODM services adequately. With our quality products, competitive prices and excellent services, we win trusts from our clients from the EU, the US, the Middle East, Africa, Asia, and South America. To learn more about us, contact us now.
