10AWG Copper Conductor 450/750V RV Cable

Name: 10AWG Copper Conductor 450/750V RV Cable
Brand: all-electronics-online.com
SKU: 803401175
Availability: InStock
Rating: 5 (65 reviews)

Price:	US $ 0.1-0.25/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RV
Voltage:	450/750V
Rated Temperature:	65~75
Delivery Time:	No More Than 30days
Length:	as Your Request
Weight:	Depends on Your Requirement
Core:	Solid and Stranded Type
Type:	Insulated
Conductor Type:	Solid
Application:	Household, Instrument and Lighting etc
Conductor Material:	Copper
Sheath Material:	PVC,PE
Insulation Material:	PVC,PE
Certification:	SGS
Brand:	Hua Hao

Product Description

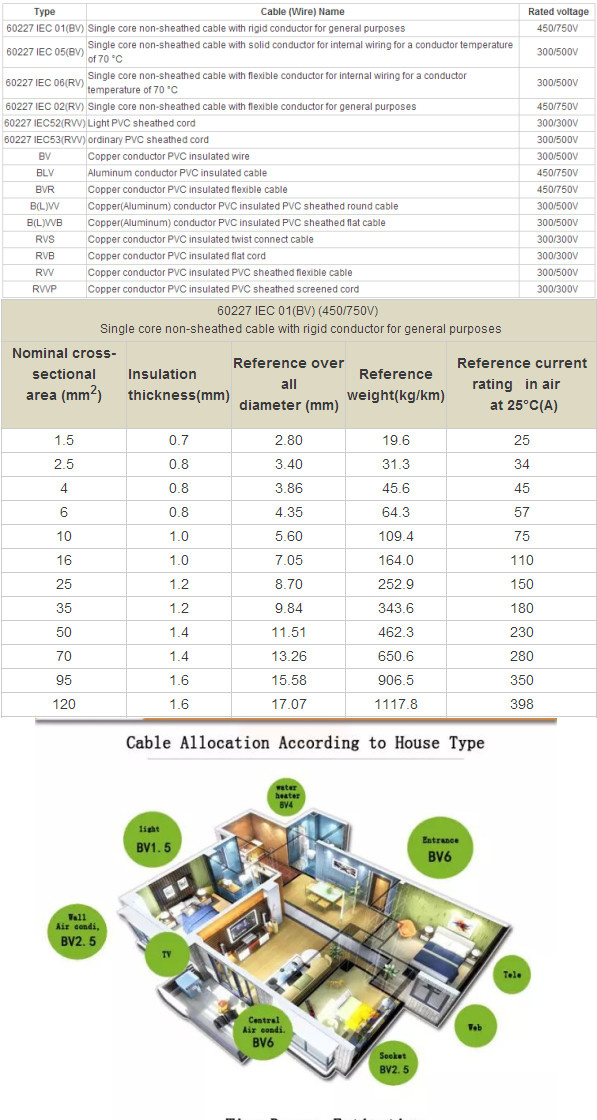

BV cable for Instrument & Lighting with Voltage 450V/750V

Nom. Section(mm²)	Core/Dia (mm)	Insulation thickness(mm)	Over diameter(mm)
2.5	19/0.41	0.8	3.8
4	19/0.52	0.8	4.4
6	19/0.64	0.8	5
10	49/0.52	1	6.7
16	49/0.64	1	7.9
25	98/0.58	1.2	10
35	133/0.58	1.2	11.5
50	133/0.68	1.4	13

1,Application

This product is apply for AC450/750V or below power, and household electrical appliance,Instrument and apparatus, telecommunications equipment and lighting ect. fixed installation.

2,Operating Characteristic

1)The rated voltage of cable Uo/U is:450/750V,300/500V,300/300V

2)The conductor of electric wire cable allows working temperature <70°C for long time

3) The installment temp of cable should not less than 0°C, OD<25mm cable, allowed bending radius should ≥4D,OD≥25mm, allowed bending radius should≥6D

3,Executive Standard

JB/T8734-2012,GB/T5023-2008
4.Type,Name and Rated voltage
