| Prod Model: |
10Gbps MM SFP+ transceiver |
| Package: |
SFP+ |
| Data Rate: |
10gbps |
| Wavelength: |
850 Nm |
| Distance: |
300m |
| Output Power: |
-6 ~ -1dBm |
| Receive Sensitivity: |
- 10 dBm |
| Power Supply Voltage: |
3.3V |
| Connector: |
LC Duplex |
| Fiber Type: |
Mmf |
| Operating Temperature: |
0~70 Degree |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Optic Transceiver |
Product Description

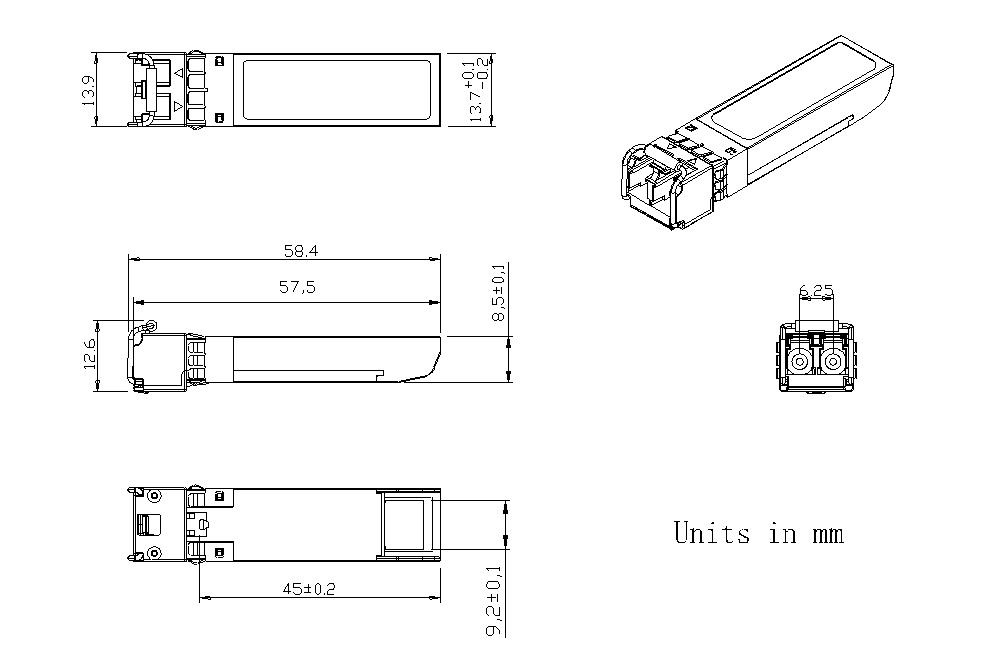

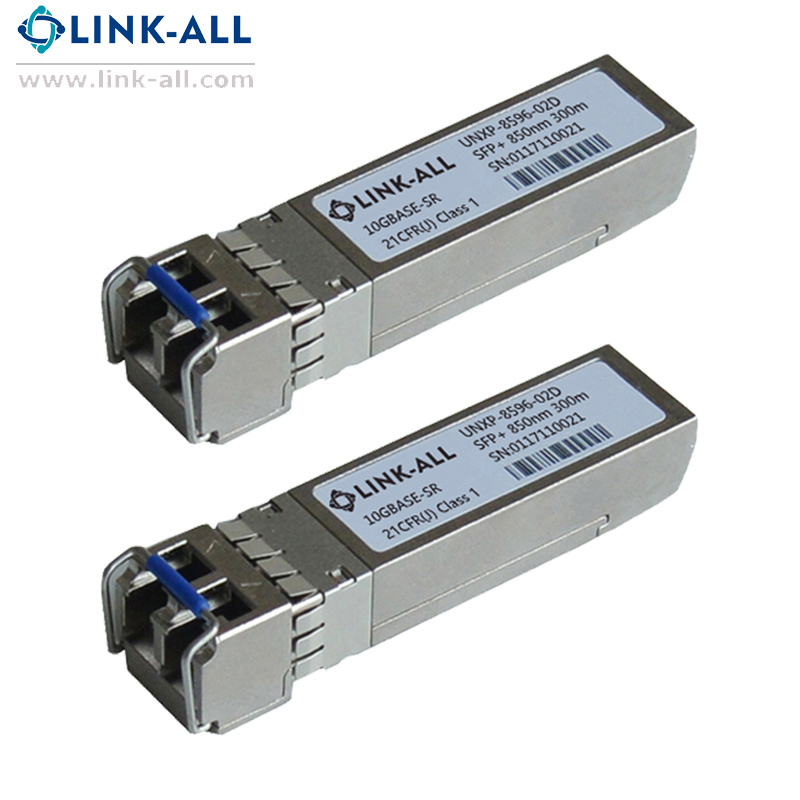

10Gbps 850nm sfp+ optical multimode transceiver moduleData Rate: 10Gbps1) Features
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
- 850nm VCSEL transmitter, PIN photo-detector
- Duplex LC connector
- Metal enclosure, for lower EMI
- Electrical interface compliant to SFF-8431
- 2-wire interface for management
- Specifications compliant with SFF 8472
- Single 3.3V power supply
- Case operating temperature range:0°C to 70°C 2) Application
- 10GBASE-LR/LW & 10G Ethernet
3) Standard- Compliant with SFF-8472 SFP+ MSA.
- Compliant to SFP+ SFF-8431 and SFF-8432.
- Compliant to 802.3ae 10GBASE-SR.
- RoHS Compliant.
4) Specification Absolute Maximum Ratings| Parameter | Symbol | Min. | Typ. | Max. | Unit | Note |
| Storage Temperature | Ts | -40 | - | 85 | ºC | |
| Power Supply Voltage | VCC | -0.5 | - | 4.7 | V | |
| Case Operating Temperature | Tcase | -5 | - | 70 | ºC | |
Optical Characteristics | Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
| Transmitter | | | | | | |
| Output Opt. Power | POUT | -6 | | -1 | dBm | 1 |
| Optical Wavelength | λ | 840 | 850 | 860 | nm | |
| Output Eye Mask | Compliant with IEEE 802.3ae | |
| Receiver | | | | | | |
| Rx Sensitivity | RSENS | | | -10 | dBm | 2 |
| Input Saturation Power (Overload) | Psat | 0.5 | | | dBm | |
| Wavelength Range | λC | 770 | 850 | 860 | nm | |
| LOS De -Assert | LOSD | | | -14 | dBm | |
| LOS Assert | LOSA | -30 | | | dBm | |
| LOS Hysteresis | | 0.5 | | | dB | |
Notes: 1. Class 1 Laser Safety per FDA/CDRH and IEC-825-1 regulations.
2. Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .
Electrical Characteristics | Parameter | Symbol | Min | Typ | Max | Unit | NOTE |
| Supply Voltage | Vcc | 3.14 | 3.3 | 3.46 | V | |
| Supply Current | Icc | | | 250 | mA | |
| Transmitter | | | | | | |
| Input differential impedance | Rin | | 100 | | Ω | 1 |
| Single ended data input swing | Vin,pp | 180 | | 700 | mV | |
| Transmit Disable Voltage | VD | Vcc-1.3 | | Vcc | V | |
| Transmit Enable Voltage | VEN | Vee | | Vee+ 0.8 | V | 2 |
| Transmit Disable Assert Time | | | | 10 | us | |
| Receiver | | | | | | |
| Differential data output swing | Vout,pp | 300 | | 850 | mV | 3 |
| Data output rise time | tr | 28 | | | ps | 4 |
| Data output fall time | tf | 28 | | | ps | 4 |
| LOS Fault | VLOS fault | Vcc-1.3 | | VccHOST | V | 5 |
| LOS Normal | VLOS norm | Vee | | Vee+0.8 | V | 5 |
| Power Supply Rejection | PSR | 100 | | | mVpp | 6 |
Notes: - Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit.
- Into 100 ohms differential termination.
- 20 - 80 %.
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied

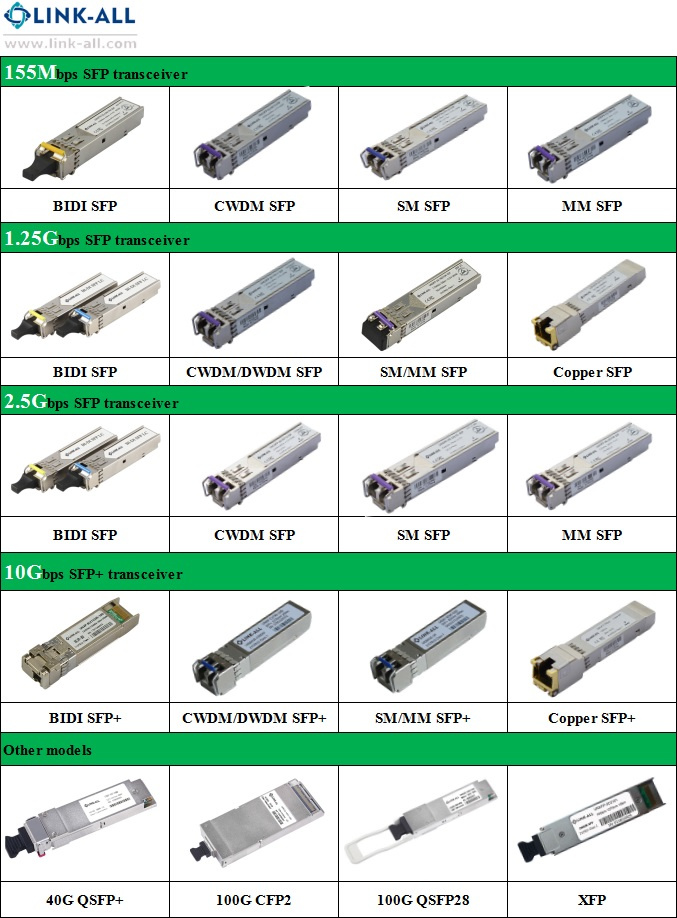

through the recommended power supply filtering network. 5) Other SFP Modules for choosing
