10Gig OM3 12F MTP-LC Harness Breakout Cable Fiber Optic Patch Cable Aqua

Name: 10Gig OM3 12F MTP-LC Harness Breakout Cable Fiber Optic Patch Cable Aqua
Brand: all-electronics-online.com
SKU: 686921041
Availability: InStock
Rating: 4.8 (21 reviews)

Price:	US $ 38-40/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-011
Color:	Aqua
Length:	3 Meters
Connector:	MTP-LC
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001
Brand:	Puno
Sheath Material:	LSZH

Product Description

10Gig OM3 12F MTP-LC Harness Breakout Cable Fiber Optic Patch Cable Aqua
Key

Features and Applications:
A single MTP connector on one end that breaks out into 6LC connectors;
Designed to save front panel space and streamline fiber management;
Support use in attaching directly to 40G transceivers;
Compliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard;
Data Centers with High Density Requirement;
Fiber Channel Storage;
Parallel Processing Applications;
Telecommunications and Backbone Installations.

Specification:

Connector A	MTP (Female)	Connector B	LC
Fibre Category	50μm MM (OM3)	Fibre Count	12
Fiber Type	Duplex	Wavelength	850nm
Cable Jacket	3.0mm LSZH-Aqua	Fan-Out Diameter	2.0mm
Insertion loss, max.	≤0.6dB	Return Loss,min.	MTP≥20dB, LC≥30dB
Breakout Length	0.5m	Durability	≥500 times
Min. Bend Radius Installation	29mm	Min. Bend Radius Operation	15mm
Tensile strength	400 N	Crush resistance (Reversible)	750 N/10 cm
Operating Temperature	-40ºC to +80ºC	Fiber Grade	G.651

Product Details and Connection

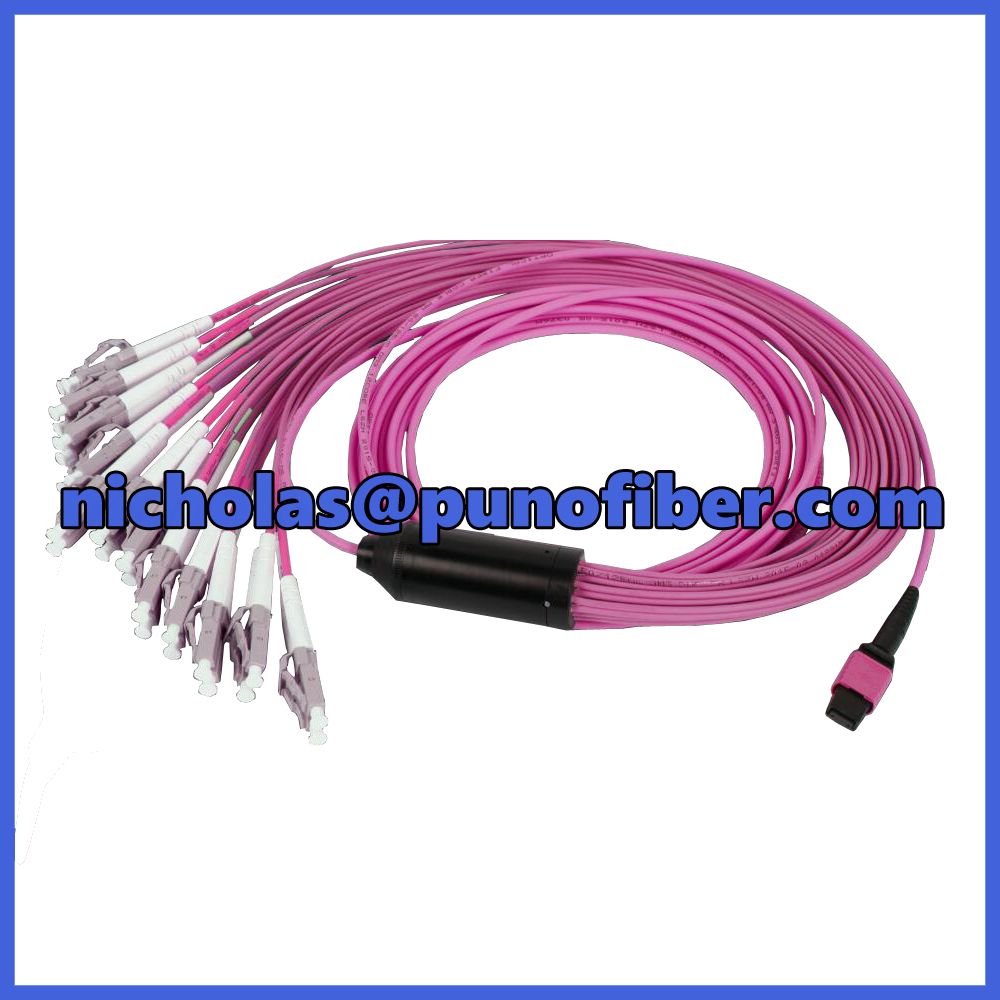

The following picture is MTP-6LC Duplex OM4 harness cable for reference.

How to Choose The Right Fiber Optic Cable Type?
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VCSEL laser transmission and allows 10Gig /second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Designation	Fiber Dia.(μm)	Type	40Gbps Ethernet 40GBASE SR4/PLRL4	40Gbps Ethernet 40GBASE SR4/PLRL4	100Gbps Ethernet 100GBASE SR10/IR4X
OM1	62.5/125	Multimode	33 Meters (SR)	Not supported	Not supported
OM2	50/125	Multimode	82 Meters (SR)	supported	Not supported
OM3(Laser Optimized)	50/125	Multimode	300 Meters (SR)	100 Meters (SR4)	100 Meters (SR10)
OM4(Laser Optimized)	50/125	Multimode	400 Meters (SR)	150 Meters (SR4)	150 Meters (SR10)
Singlemode	9/125	Singlemode	10KM at 1310nm (LR)	1KM (PLRL4)	2KM (IR4 PSM)

MTP-6LC Female Structure Illustration
