10Gig Uniboot LC HD Fiber Optical Patch Cable

Name: 10Gig Uniboot LC HD Fiber Optical Patch Cable
Brand: all-electronics-online.com
SKU: 819675635
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 2-10/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PN-9873
Color:	Aqua
Cable OD:	3.0mm
Connector:	LC Uniboot
Fiber Type:	Multimode
Polish:	Ultra UPC
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

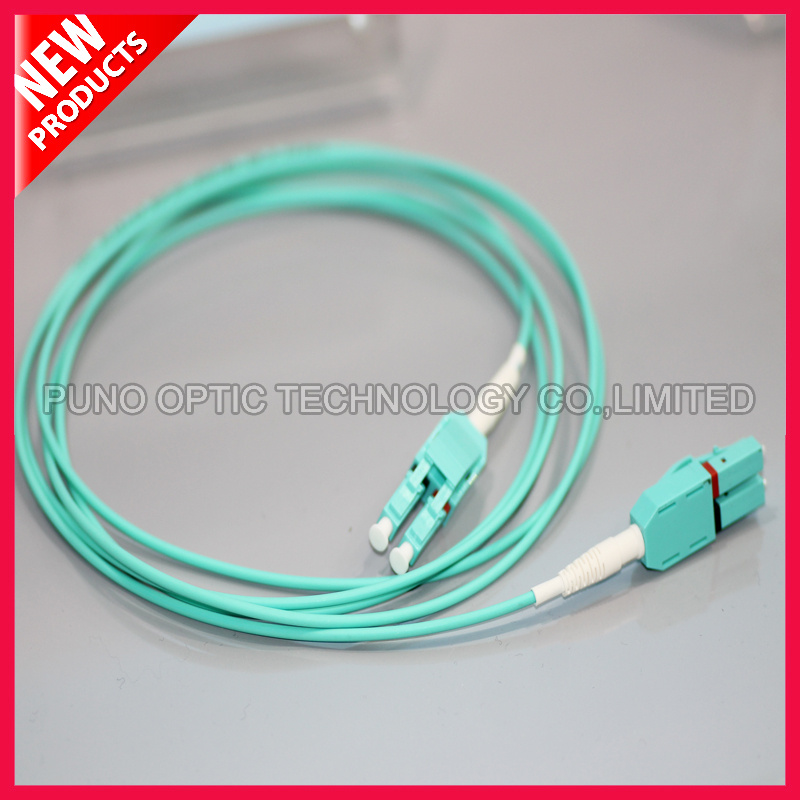

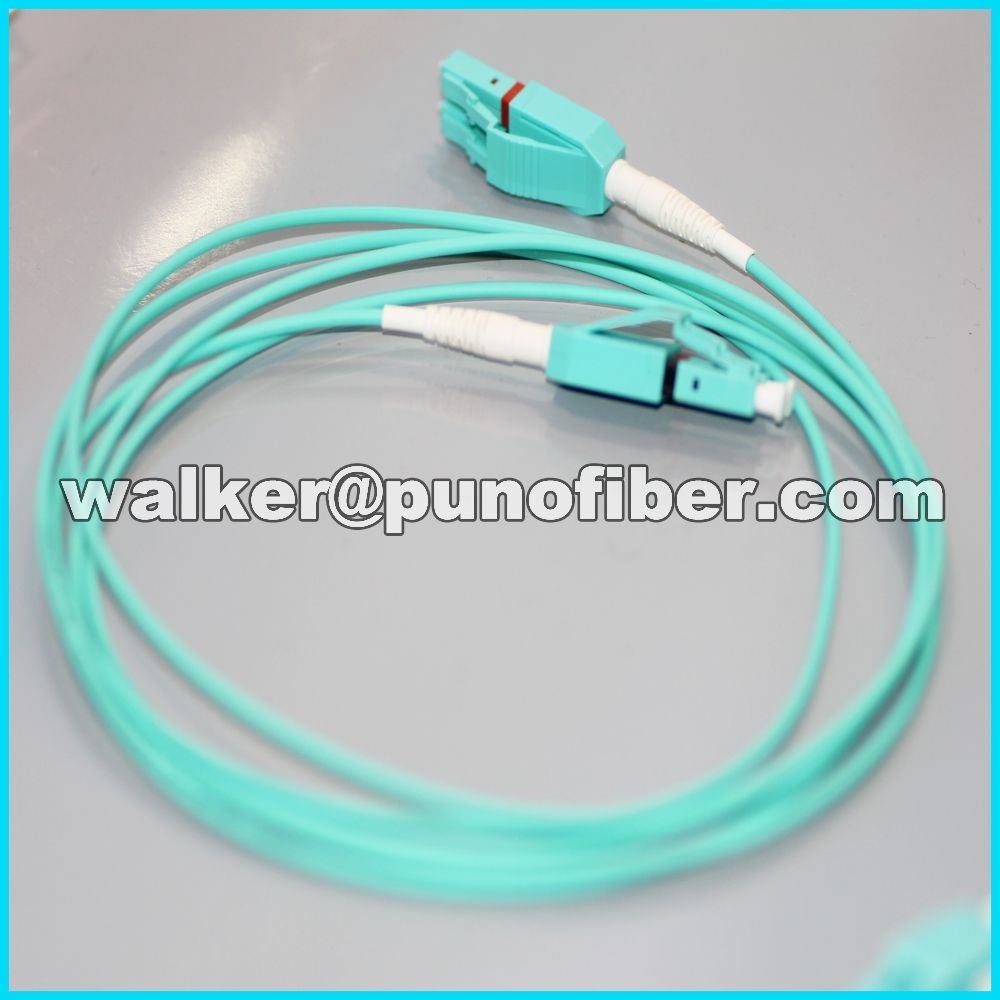

10Gig Uniboot LC HD Fiber Optical Patch Cable

Description:

As the networking environment of today becomes increasingly dependent on high speed and high density solutions, effective cable management is a real issue. The key concern is how to manage more cables in a smaller amount of space.LC Uniboot fibre patchcord reduces cable management space comparing to standard patchcords. The patchcord utilises a special round duplex cable that allows duplex transmission within a single 1.6mm, 2.0mm, 2.4mm or 3.0mm cable. As a result of these features our uniboot patch cord offers improved airflow and visibility of equipment within a high density network environment.

Application:

√ Telecom;
√ LAN, WAN;
√ CATV;
√ Sensor Systems;
√ Measuring Technique;
√ Utilities, Railways.

Features:

√ Doubles the density; twice as many fiber connections;
√ Exactly half the size of the SC connector; Adapter fits the SC footprint;
√ Shutters on both the adapter and connector;
√ Incorporates proven, reliable ceramic ferrules;
√ Available in singlemode and multimode versions;
√ Easy to convert between simplex and duplex connectors.

Specifications of Connector:

Insertion Loss(IL) (IEC61300-3-4)	MM	SM Super PC	SM Ultra PC	SM Angle PC	SM Angle PC Premium
	0.15dB type	0.15dB type	0.15dB type	0.15dB type	0.1dB type
Return Loss(RL) (IEC61300-3-6)	>30dB	>45dB	>50dB	>60dB
Ferrule material	1.25mm zirconia ceramic
Multimode Sleeve	1.25mm phosphor bronze
Singlemode Sleeve	1.25mm zirconia ceramic
Adapter Housing, Connector Body	Engineering thermoplastic
Flammability	Adapter housing and connector body and boot are fabricated with materials which meet UL94,Level V-Or equirements
Operating Temperature	-40ºC to 75ºC 0% to 93% RH
Storage Temperature	-40ºC to 85ºC 0% to 93% RH
Note: (1) RL >75 dB measured with high precision reflectometer; (2) Conditioned by the type of cable.

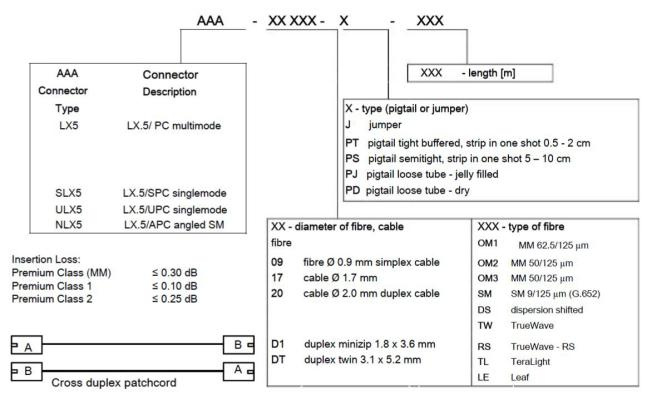

Ordering Guide:
