| Prod Model: |
Queen Star Plus 33Q10K-80K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Device: |
IGBT Module |
| Cold Start: |
Function |
| Transfer Time: |
0 |
| DSP: |
Control |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overcurrent |
| Brand: |
Upsen |
Product Description

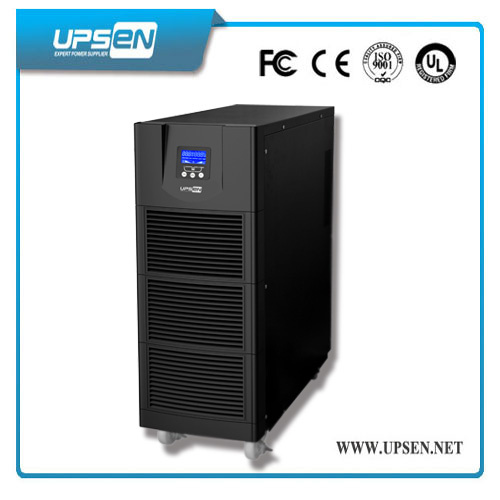

10K-80Kva Backup Online UPS power supply with CE RoHS
High Frequency Online UPS Queen Star Plus Strar Series 33Q10K-80K(3Ph in/3Ph out)
Key Features
1:Adjustable battery numbers
2:Maintenance bypass available
3:Dual AC input source supportable
4:Intelligent battery management (ABM)
5:Ative power factor correction in all phases
6:Humanization bypass output can be adjustable
7:ups power supply has the self test while start
8:Advanced MCU microprocessor control technology, ensure long life
9:Comprehensive display allows easy monitoring and access of UPS status
10:True on-line double conversion technology with advanced microprocessor control
11:Optional isolation transformer offers full isolation and complete common mode noise rejection
12:Excellent input frequency range makes UPS suitable to different power supply devices, i.e. generator set
13:Extra-wide input voltage and frequency range adapts adverse gird environment, compatible with diesel generator
Applications
Telecommunications,Micro Processor Based Office Machines,boating,field operation,education, transport, communication etc.
| Technical Specification: |
| Index | 33Q 10KL | 33Q 20KL | 33Q 30KL | 33Q 40KL | 33Q 60KL | 33Q 80KL | Comments |
| Input |
| Input voltage |
| Rated voltage | 380VAC/220VAC | 380VAC | |
| Phase | three phase with ground | |
Turn on
voltage range | (120±5~274±5)VAC | (207±9~475±9)
VAC | |
Bypass
voltage range | (60±5~300±5)VAC | (105±9~518±9)
VAC | Could be
adjusted
by software. |
Bypass
low loss | 60VAC~220VAC(default 60VAC) | 105VAC~380VAC
(default 105VAC) | |
Bypass
low comeback | Low loss +5VAC | Low loss
+17VAC | |
Bypass
high loss | 220VAC~300VAC(default 300VAC) | 380VAC~475VAC
(default 475VAC) | |
Bypass
high comeback | High loss -5VAC | High loss -17VAC | |
Line low loss
comeback | (120±5) VAC /(140±5) VAC | (207±9) VAC
(242±9) VAC | load≤50% |
| (140±5) VAC /(160±5) VAC | (242±9) VAC
(276±9) VAC | 50%≤90% |
| (160±5) VAC /(175±5) VAC | (276±9) VAC
(302±9) VAC | load>90% |
Line high loss
comeback | (275±5)VAC/(260±5)VAC | (475±9)VAC
(449±9)VAC | |
| Input frequency |
Rated
frequency | 50Hz | |
Frequency
low loss | (40~49) ±0.2Hz(default:46Hz) | Could be
adjusted
by software. |
Frequency
low comeback | Frequency low loss +0.5Hz |
Frequency
high loss | (51~60)±0.2Hz(default:54Hz) |
Frequency
high comeback | Frequency high loss -0.5Hz |
| Input power factor |
Could be
adjusted
by software. | > 0.99 | 33Q 10-40KL:
220VAC,full R load
33Q 60-80KL:
380VAC,full R load |
| Generator | Support generator input | Generator rating
≥2*UPS rating |
| Input current |
| Rated current | 14A | 28A | 42A | 67A | 80A | 105A | |
| Input THDI | <= 10% | |
| Output protection |
Rating
protection | 32A
Breaker | 50A
Breaker | 60A
Breaker | 80A
Breaker | 100A
Breaker | 125A
Breaker | |
| Output power |
| VA/watt | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW | 60KVA/
48KW | 80KVA/
64KW | |
| Rated voltage | 220VAC | 380VAC | Sine wave |
| Voltage range | 200/208/220
/230/240VAC | 345/359/380
/397/415 VAC | 33Q 10-40KL:
Could be
adjusted
by software.
10% derating
for
208VAC
/200VAC.
33Q 60-80KL:
Could be
adjusted
by software.
10% derating
for 345VAC
/359VAC. |
| Voltage regulation | ±1% | |
| Voltage distortion | ≤5% | ≤10% | Full RCD load |
| ≤3% | Full R load |
| DC offset | ≤200mV | |
| Transient response | ≤9% | R load
0%~100%~0% |
| | ≤6% | R load 20%
~100%~20% |
| Transient recovery | ≤60ms voltage recovery to 90% | Full RCD load |
Bypass output
before turn-on | YES | |
| Crest ration | 3:1 | |
| Output frequency range |
| Normal mode | 1,Same as input frequency(46Hz~54Hz)
2,50Hz(Input frequency>54Hz or Input frequency<46Hz) | |
| Battery mode | (50±0.1) Hz | |
| Slew rate | 1 Hz/Sec | |
| Efficiency |
| Normal mode | > 93% | > 90% | |
| Battery mode | > 90% | > 90% | |
| Overload |
Normal mode
battery mode | Overload warning only | 105%±5%≤load |
| 1min,then transfer to bypass and alarm. | 105%±5%<
load≤125%±5% |
| 30S,then transfer to bypass and alarm. | 125%±5%<
load≤150%±5% |
| 300mS, then transfer to bypass and alarm. | load>150%±5% |
Automatically
retransfer | YES | |
| Short protection |
Normal
battery mode | YES | |
| Transfer time |
Normal to
battery mode | 0mS | |
Battery to
normal mode | 0mS | |
Normal to
bypass mode | <4mS | 0mS | |
Bypass to
normal mode | <4mS | 0mS | |
| Battery and charger |
| Battery |
| Rated voltage | 192VDC | 240VDC | 192VDC*2 | 192VDC*2 | 480VDC | |
| Type/Rating | | | | | | |
Battery
quantity | 16 | 20 | 16*2 | 16*2 | 40 | |
| Backup time | | | | | | |
| Protection |
Low alarm voltage
comeback voltage | (180.8V±4V)/ (188.8V±4V) | (226V±4V)/ (236V±4V) | (180.8V±4V)
(188.8V±4V) | (226V±4V)/ (236V±4V) | (452V±4V)
(472V±4V) | 33Q 30KL
use two |
Shutdown voltage
comeback voltage | 160V±4V/
168V±4V | (200V±4V)/ (210V±4V) | 160V±4V/
168V±4V | (200V±4V)/ (210V±4V) | (400V±4V)
(420V±4V) | |
| DC protection |
Overcharge
protection
comeback voltage | (249.6V±4V)
(216V±4V) | (312V±4V) (270V±4V) | (249.6V±4V)
(216V±4V) | (312V±4V) (270V±4V) | (624V±4V)
(540V±4V) | |
| Leakage current | < 500uA | |
Over
discharge
protection | 14.5h | | Could be
set by software |
| Battery test |
| Battery weak | YES | |
| Battery fault | YES | |
| Charger |
| Output voltage | (219.2±3)VDC | (277±3)VDC | (219.2±3)VDC | (277±3)VDC | (554±3)VDC | |
| Charge time | Depends on the external battery capacity | |
| Charge current | 7.5A | 6A | 5A | 4A | 10A | |
| Interface |
| Alarm silence | YES | |
DC power
turn-on | YES | |
Automatically
retransfer | YES | |
| Audio alarm |
| Battery mode | Beep/4s | |
Battery low
charger fault | Beep/1s | |
| UPS fault | Continue beep | |
| Overload | Beep/1s | |
| Bypass mode | Beep/2Min | |
| L/N inverse | Beep/2Min | |
| Communication |
| RS232 interface | YES | |
| Intelligent slot | YES | |
| Monitor software | Appending with UPS | |
| Cooling |
| Force air cooling | |
| Display |
| LCD/LED displays UPS status |
| Environment |
Work
temperature | 0ºC~40ºC | |
| Altitude | <1000m | |
Audible
noise | ≤60dB | |
Storage
temperature | -15ºC~45ºC | |
| Work humidity | 20%~95% | |
| Standard |
| EMS |
| ESD | IEC61000-4-2 | Level4 |
| RS | IEC61000-4-3 | Level3 |
| EFT | IEC61000-4-4 | Level4 |
| Surge | IEC61000-4-5 | Level4 |
| EMI |
| Conducted | EN55022 | Class A |
| Radiated | EN55022 | Class A |
| Safety |
| Safety | GB4943-2001/IEC62040-1 | |
| Machinery features |
| Size |
| Outline dimension and net weight |
| L*W*H (mm) | 710*260*717 | 840*515*1135 | |
| Net weight(Kg) | 45/93 | 50/98 | | | 195 | 208 | |
| Optional functions |
| 60Hz | | | Optional | Set by software |
| Converter mode | | | Optional | Set by software |
| ECO | Optional | Optional | Available and
set by software |
| EPO | Optional | Optional | |
| LCD display | Optional | | |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
