| Prod Model: |
MF58-103-3950-5 |
| Technology: |
Wirewound |
| R25 Resistance: |
10k Ohm |
| Resistance Tolerance: |
5% |
| Rated Power: |
|
| Temperature Coefficient: |
|
| Operating Temperature: |
-55ºC-200ºC |
| B Value: |
3950 |
| Dissipation Factor: |
≥2.0MW/ ºC |
| Lead Type: |
Leadless |
| Craft: |
Ordinary Wire Wound |
| Resistance: |
Sensitive Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
SMD Resistor |
| Material: |
Ceramic and Metal |
| Package Type: |
Throught Hole |
| Type: |
Thermal Resistor |
| Application: |
Temperature Accurate Measurement |
| Brand: |
Hw |
Product Description

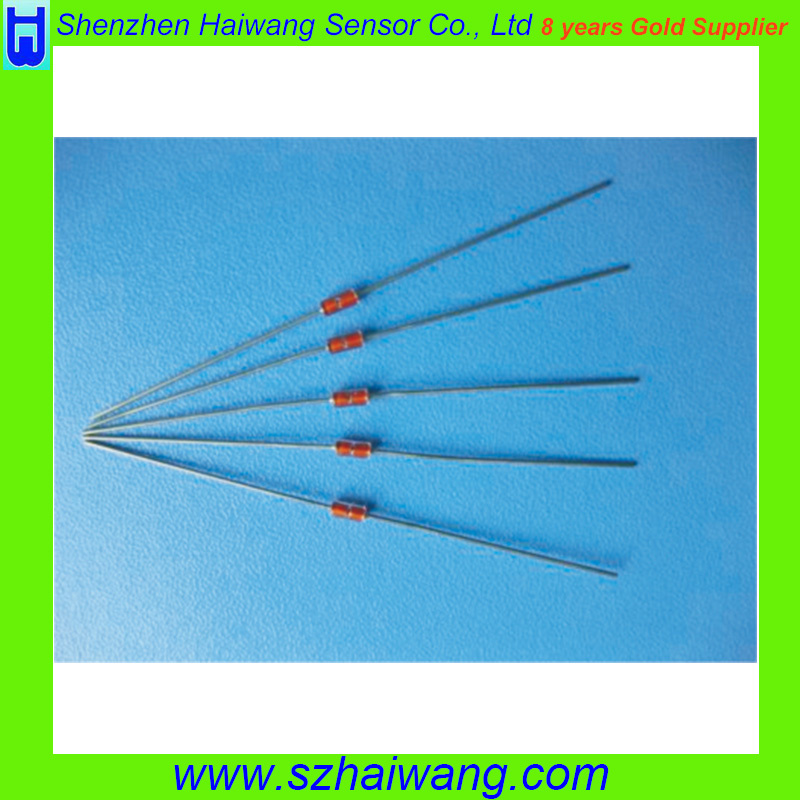

10K Glass sealed type thermistor resistance
(MF58)
Product Description:
The models used ceramic semiconductor process technology and the combination of technology produced for pure lead at both ends of the axial structure of glass packaging.
Applications:
1.The Household appliances (such as air conditioners, microwave ovens, electric fans, electric heaters, etc.) of the temperature control and temperature detection
2.Office automation equipment (such as copiers, printers, etc.) detect the temperature or temperature compensation
3.Industrial, medical, environmental protection, meteorology, food processing equipment, temperature control and test
4.Instructions and flow measurement Level
5.Mobile battery
6.Meter coil, integrated circuits, quartz crystal oscillator and temperature compensation for thermocouple
The characteristics:
1.Good stability, high reliability
2.Resistance range: 0.1 ~ 1000KΩ
3.Resistance and high precision
4.As a result of the use of glass packaging, high temperature and humidity in harsh environments such as the use of Small size, light weight, rugged, easy to automate the installation (in the Printed Circuit Board)
5.Thermal speed, sensitivity
Speacification
| R25 Resistance | 10K Ohm |
| Resistance Tolerance | 5% |
| B Value | 3950K |
| Rated Power | |
| Operating Temperature | -55ºC-200ºC |
| Temperature Coefficient | |
| Dissipation Factor | ≥2.0mW/ ºC |
| Lead type | Leadless |
| Craft | Ordinary wire wound |
| Shape | Cylinder |
| Tpye | Thermal Resistor |
| Feature Type | Carbon Film Resistor |
| Usage | Temperature measurement
Temperature Control
Temperature Compensation |
Features
1. Glass-sealed, solid structure, good heat resistance, applicable for poor working environment;
2. High precision in both resistance and B value, good reliability and working stability;
3. Rapid respond, high sensitivity; Good consistency and interchangeability;
4. High cost performance, economical and practical;
5. Small size, lightweight, applicable for automation and mass production.
Usage
1. Temperature measurement
2. Temperature Control
3. Temperature Compensation
FM58 parameter sheet
| Model | R 25ºC (KΩ) | R Tolerance | Rated Power( mw) | Dissipation Factor mW/ºC | Temperature Coefficient(S) | Operating Temperature(ºC) |
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
MF58
| 1
2
3
4.7(common)
5
10(common)
20(common)
47(common)
50(common)
100(common)
150
200(common)
470
500
Other can be customized | F=±1%
G=±2%
H=±3%
J=±5% |
≤50 |
≥2.0
In quiescent air |
≤20
In quiescent air |
-45~+300ºC |
Main Techno-Parameter: |
The range of resistance under the rated zero power(R 25 ):0.1~1000KΩ
The allowable tolerance of R 25 :±1%,±2%,±3%,±5% the range of B value(R 25/50°C):3100~4500K
The allowable tolerance of B value:±1%,±2%,±3%,±5%
Dissipation factor:≥2mW/°C(In Still Air)
Thermal time constant:≤20S(In Still Air)
The range of operating temperature:-55°C~+200°C
Rated Power:≤50mW |
