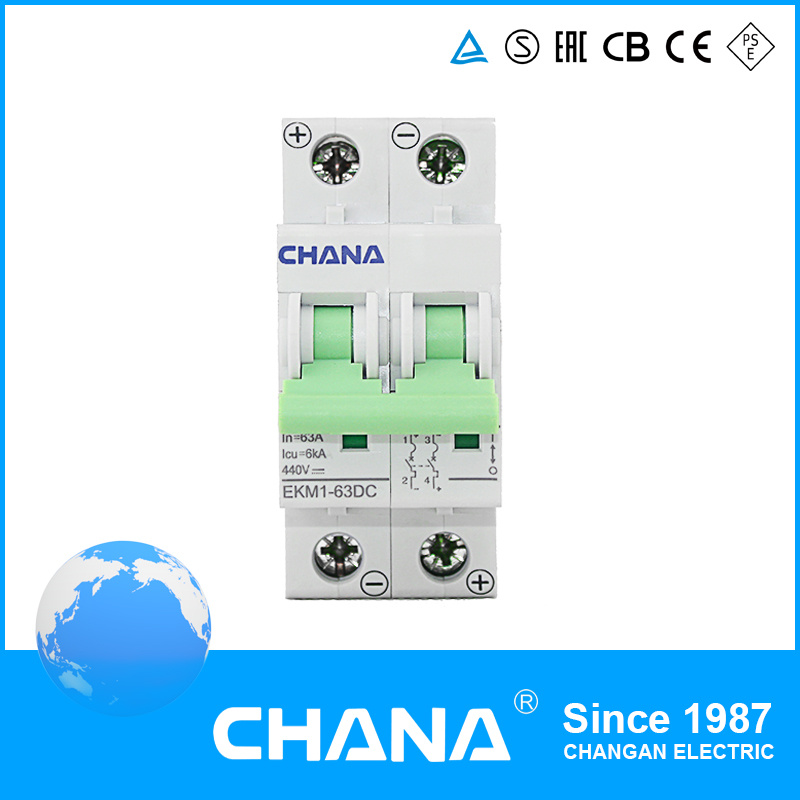

10ka DC Type MCB Mini Circuit Breaker

Name: 10ka DC Type MCB Mini Circuit Breaker
Brand: all-electronics-online.com
SKU: 744581285
Availability: InStock
Rating: 4.4 (147 reviews)

Price:	US $ 2.55-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	180/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-63DC 2P 32A 10KA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
User:	for Solar Product
Voltage Type:	DC
Max. Voltage:	1000V
Rated Current:	1A~63A
Pole Type:	1p,2p,3p,4p
Brand Type:	Chana or OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	TUV
Function:	Overload and Short-Circuit Protection

Product Description

1. Technical Data

Electrical Features
Rated current In:	1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Poles:	1P, 2P, 3P, 4P
Rated voltage Ue:	1P(250V), 2P(500V), 3P(750V), 4P(1000V)
Rated frequency	50/60 Hz
Rated breaking capacity	6000/10000A
Rated impulse withstand voltage (1.2/50) Uimp:	4,000V
Dielectric test voltage at ind.Freq.for 1 min:	2KV
Pollution degree	2
Thermo-magnetic release characteristic	C(7~10)In

2. Mechanical Features

Electrical life:	>1500
Mechanical life:	20,000
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for setting of thermal element:	30ºC
Ambient temperature (with daily average≤35ºC):	-5ºC...+40ºC
Storage temperation:	-25ºC...+70ºC

3. Installation

1) Terminal connection type: Cable/U-type busbar/Pin-type busbar
2) Terminal size top/buttom for cable: 25mm² 18-3AWG
3) Terminal size top/bottom for busbar: 25mm² 18-3AWG
4) Tightening torque 2.0 N*m 22 In-Ibs.
5) Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
6) Connection: From top and buttom

4. Combination with accessories

1) Auxiliary contact: Yes
2) Shunt release: Yes
3) Under voltage release: Yes
4) Alarm contact: Yes

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

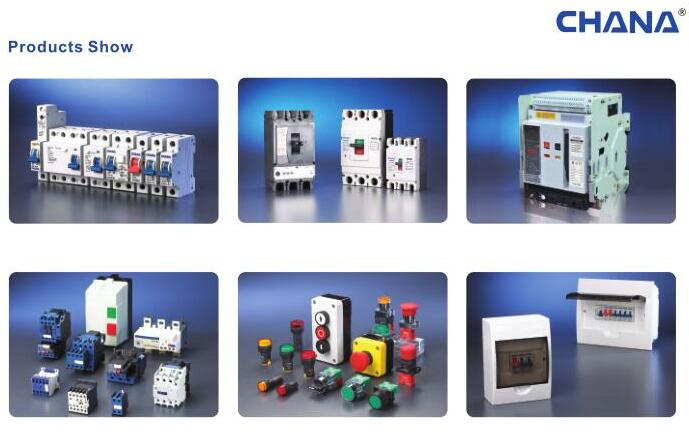

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
