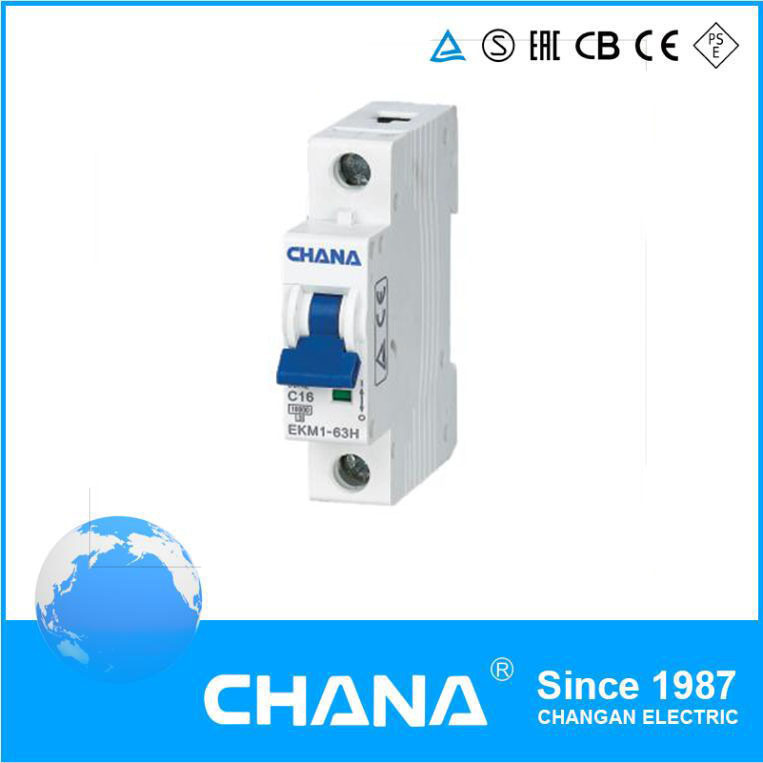

10ka L7 High Breaking Capacity Mini Circuit Breaker MCB

Name: 10ka L7 High Breaking Capacity Mini Circuit Breaker MCB
Brand: all-electronics-online.com
SKU: 826916355
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	US $ 1.2-2/Piece
Min Order:	180/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-63H 1P 16A 10KA
Current:	16A
Contact Position Indicator:	Yes
Rated Voltage:	240/415V
Brand Type:	Chana or OEM
Warranty Time:	2 Years
Release Characteristic:	B,C,D
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	TUV
Function:	Overload and Short-Circuit Protection

Product Description

1. Electrical features

Rated current In	1.2.3.4,6,10,13,16,20,25,32,40,50,63A
Poles	1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	10,000A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4,000V
Dielectric test voltage at ind.Freq.for 1 min	2kV
Pollution degree	2
Thermo-magnetic release characteristic	B,C,D

2. Mechanical Feature

1) Electrical life: 8,000 cycles
2) Mechanical life: 20,000 cycles
3) Contact position indicator: Yes
4) Protection degree: IP20
5) Ref temperature for setting of thermal elemetns: 30ºC
6) Ambient temperature(with daily average≤35ºC): -5ºC~+40ºC
7) Storage temperature: -25ºC~+70ºC

3. Installation

1) Terminal connection type: Cable/U-type busbar/Pin-type busbar
2) Terminal size top/bottom for cable: 25mm² 18-3AWG
3) Terminal size top/bottom for busbar: 25mm² 18-3AWG
4) Tightening torque 2.0 N*m 22 In-Ibs
5) Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
6) Connection: From top and bottom

4. Combination with accessories

1) Auxiliary contact: Yes
2) Shunt release: Yes
3) Under voltage release: Yes
4) Alarm contact: Yes

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
