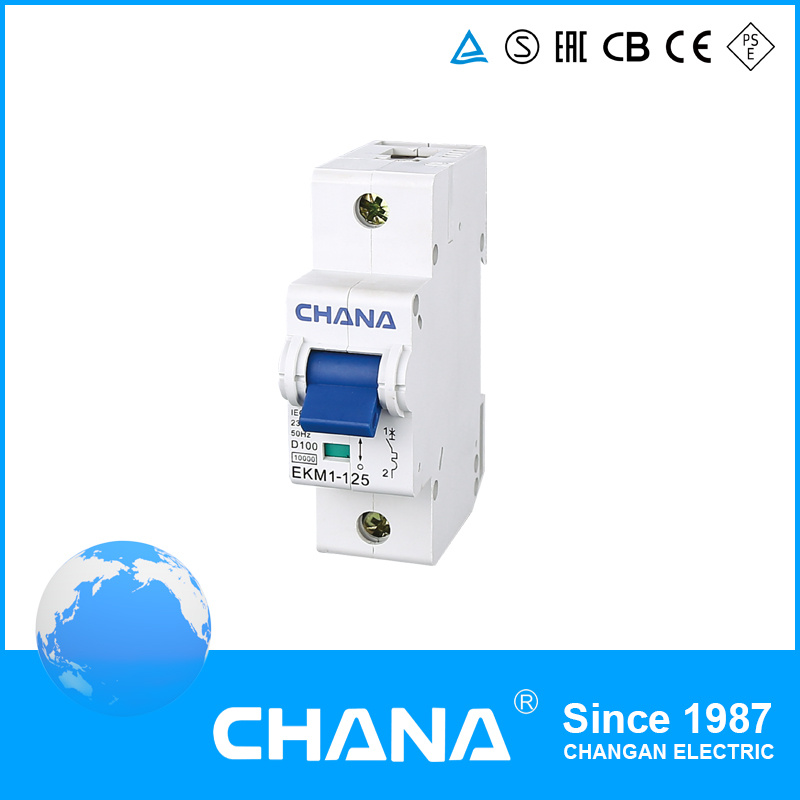

10kA Mini Circuit Breaker with CB CE TUV Approvals

Name: 10kA Mini Circuit Breaker with CB CE TUV Approvals
Brand: all-electronics-online.com
SKU: 816877875
Availability: InStock
Rating: 4.3 (45 reviews)

Price:	US $ 5.2-5.8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKM1-125
Frequency:	50/60Hz
Rated Current:	63,80,100,125A
Rated Voltage:	240/415V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	TUV
Function:	Overload and Short-Circuit Protection

Product Description

1. Electrical Features

Rated current In	63,80,100,125A
Poles	1P,1P+N,2P,3P,3P+N,4P
Rated voltage Ue	240/415V
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	10000A
Energy limiting class	3
Rated impulse withstand voltage(1.2/50) Uimp	4000V
Dielectric test voltage at ind.Freq.for 1 min	2KV
Pollution degree	2
Thermo-magnetic release characteristic	C,D

2. Mechanical Features

Electrical life	4,000
Mechanical life	10,000
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for setting of thermal element	30ºC
Ambient temperature(with daily average≤35ºC)	-5ºC...+40ºC
Storage temperation	-25ºC...+70ºC

3. Installation

1) Terminal connection type: Pin-type busbar
2) Terminal size top/buttom for cable: 35mm²
3) Terminal size top/buttom for busbar: 35mm²
4) Tighting torque 2.5 N*m
5) Mounting:On DIN rail EN 60715 (35mm) by means of fast clip device
6) Storage temperation:-25ºC...+70ºC

4. Combination with accessories

1) Auxiliary contact: Yes
2) Shunt release: Yes
3) Under voltage release: Yes
4) Alarm contact: Yes

5. Dimensions (mm)

6. Company Profiles

7. Featured products

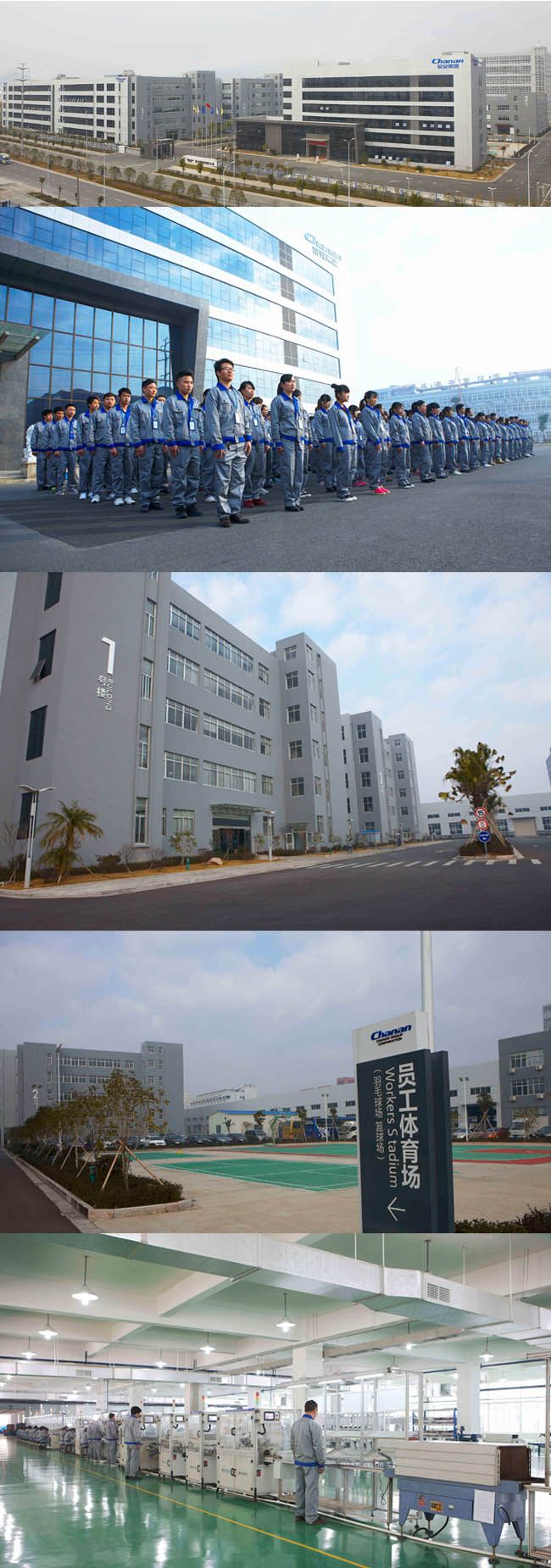

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
