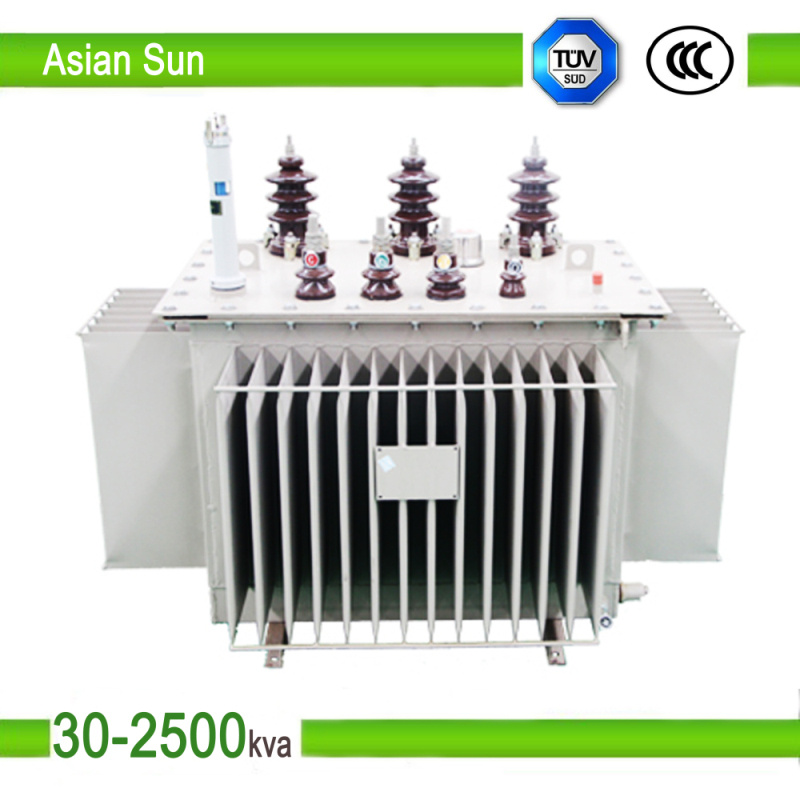

10kv 30kVA ~ 1600kVA Series Oil Immersed Power Distribution Transformer
| Price: |
US $ 1000-20000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
10KV S11-M-30 ~ 1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Capacity (kVA): |
30 to 1600 |
| High Voltage: |
6kv/6.3kv/6.6kv/10kv |
| Low Voltage: |
0.4kv |
| Connection Symbol: |
Yyn0 Dyn11 |
| Weight (Kg): |
305 to 4055 |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Asian Sun |
Product Description
10KV S11-M-30 ~ 1600 Series Whole-sealed Oil-immersed Transformer Technical Specifications
| Model No. | Rated
Capacity
(KVA) | Rated Voltage | Connection Symbol | No-load Loss
(KW) | Load Losses
(KW) | No-load
Current
(%) | Short
Circuit Impedance
(%) | Weight(KG) | Boundary
Dimension (mm) | Track
Gauge
(mm) |
H.V.
(KV) | M.V.
(KV) | L.V.
(KV) | Body | Oil | Gross
Weight | Length | Width | Height |
| S11-M-30 | 30 | 6
6.3
6.6
10 |
| 0.4 | Yyn0
Dyn11 | 0.10 | 0.60 | 2.1 | 4 | 195 | 65 | 305 | 680 | 630 | 960 | 400 |
| S11-M-50 | 50 | 0.13 | 0.87 | 2 | 260 | 80 | 410 | 760 | 630 | 1010 | 400 |
| S11-M-63 | 63 | 0.15 | 1.04 | 1.9 | 280 | 88 | 480 | 760 | 580 | 1020 | 400 |
| S11-M-80 | 80 | 0.18 | 1.25 | 1.8 | 335 | 95 | 520 | 1000 | 650 | 1030 | 550 |
| S11-M-100 | 100 | 0.20 | 1.50 | 1.6 | 395 | 105 | 600 | 1030 | 660 | 1070 | 550 |
| S11-M-125 | 125 | 0.24 | 1.80 | 1.5 | 410 | 110 | 680 | 1050 | 710 | 1156 | 550 |
| S11-M-160 | 160 | 0.28 | 2.20 | 1.4 | 510 | 115 | 755 | 1070 | 705 | 1155 | 550 |
| S11-M-200 | 200 | 0.34 | 2.60 | 1.3 | 590 | 143 | 880 | 1135 | 730 | 1160 | 550 |
| S11-M-250 | 250 | 0.40 | 3.05 | 1.2 | 730 | 180 | 1080 | 1200 | 785 | 1240 | 550 |
| S11-M-315 | 315 | 0.48 | 3.65 | 1.1 | 840 | 200 | 1248 | 1300 | 860 | 1300 | 550 |
| S11-M-400 | 400 | 0.57 | 4.30 | 1.0 | 1015 | 230 | 1485 | 1330 | 880 | 1360 | 660 |
| S11-M-500 | 500 | 0.68 | 5.10 | 1.0 | 1190 | 250 | 1720 | 1400 | 940 | 1420 | 660 |
| S11-M-630 | 630 | 0.81 | 6.20 | 0.9 | 4.5 | 1475 | 340 | 2165 | 1555 | 915 | 1450 | 660 |
| S11-M-800 | 800 | 0.98 | 7.50 | 0.8 | 1760 | 380 | 2555 | 1785 | 1105 | 1457 | 820 |
| S11-M-1000 | 1000 | 1.15 | 10.30 | 0.7 | 1875 | 435 | 3050 | 1930 | 1220 | 1520 | 820 |
| S11-M-1250 | 1250 | 1.36 | 12.00 | 0.6 | 2285 | 505 | 3560 | 1995 | 1240 | 1609 | 820 |
| S11-M-1600 | 1600 | 1.64 | 14.50 | 0.6 | 2720 | 570 | 4055 | 2035 | 1255 | 1649 | 820 |
Contact us at:
Phone: 86 18513852270
Packing and Delivery:
Packed by sea worthy wooden boxes and delivering within 15 days.
This is what we want to say to you:
Located in a historic city Luoyang in central China, Henan province, our company represents one of the best high quality transformer manufactures in China and Henan has always been the main region of manufacturing industrial products and equipments. Our company is a branch company under the Asian Sun Group, transformers are our main products, which include oil-immersed transformers, dry-type transformers, box-type substations and high&low voltage switchgears etc. We have a group of skilled operation workers and technicians with scientific management striving to produce the best transformers in the world. Our products have been sold extremely well in the past few years in mainland China, now we begin to expand our markets to oversea countries, so companies and organizations arould the world would have the chance to use our high quality transformers. Please don't hesitate to contact us, thank you in advance!
Factory Picture:
Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.
Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.
At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.
Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
