| Prod Model: |
LZCK2500-10 |
| Standards: |
IEC60044-1; IEC 61869-2; Ntc 2205; ANSI C57.13 |
| Rated Primary Current: |
500-1500A |
| Rated Load: |
≤20va |
| Rated Frequency: |
50Hz or 60Hz |
| Rated Secondary Current: |
5A or 1A |
| Instrument Security Factor: |
Fs≤10 |
| Weight (Kg): |
7 |
| Rated Short-Time Thermal Current: |
40ka, 1s |
| Rated Continuous Thermal Current: |
120%I1n |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

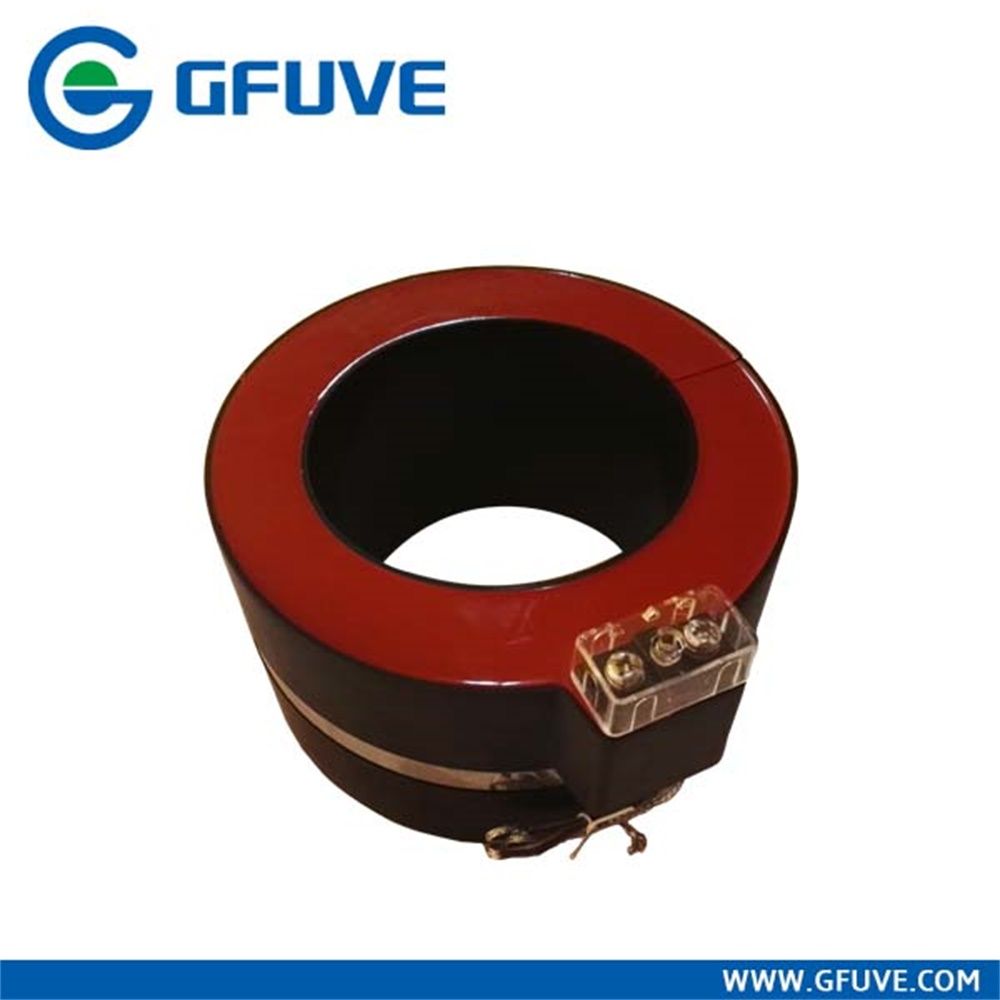

LZCK2500-10 10KV 35KV Split Core Current transformer LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes.
The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
Parameters| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 150%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Safety Factor Rating | FS≤10 |
| Output signal | 1A, 5A, 333mV, 1V or 5V(customized) |
| Cable length | 2.5m, 5m, 10m(customized) |
| Dimensions (W×D×H) (mm) | φ120xφ185x100 |
| Weight (kg) | 7 |
| Ingress Protection | IP65 |
| Environment | indoors |
Selection guide| Model | Primary rated current | Rated load | Aperture (mm) | Description (mm) | Weight (kg) | Material | Water-proof |
| LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resin | silicon case (option) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resin | silicon case (option) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resin | silicon case (option) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 5 | Resin | silicon case (option) |
