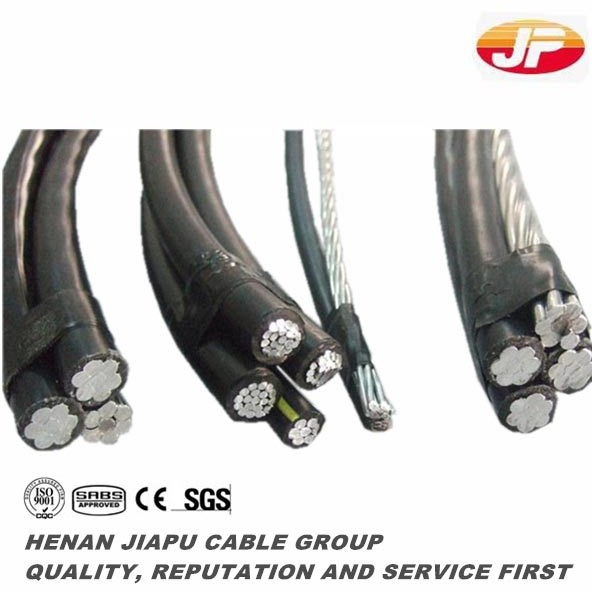

10kv Multi-Core XLPE Insulated Overhead Cable
| Price: |
US $ 3-4/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JKYJ JKLYJ JKLHYJ JKLGYJ |
| Standards: |
ASTM, IEC, DIN, CSA, BS... |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
Jiapu |
Product Description
1, Application:
Aerial Bunched Cable ABC cable primarily used for 10kv volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75C for polyethylene insulated conductors or 90ºC for cross-linked polyethylene (XLPE) insulated conductors.
2,Specification of twisted abc cable
ABC cable meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum Conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
3,Construction of ABC cable
Conductors are concentrically stranded, compressed 1350 H-19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR.
Cross Section of Conductor
(mm2) | Min.Nos. of Wires for Conductor
(mm) | Insulation Thickness
(mm) | Average Max. O.D.per Single-core
(mm) | Max.Conductor Resistance at 20ºC
(Ω/km) | Min Insulated Resistance at Rated Working Temperature
(MΩ.km) | Cable Tensile Breaking Force |
| | |
| 2x10 | 6 | 1.00 | 6.5x13.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 2x16 | 6 | 1.20 | 8.0x16.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 2x25 | 6 | 1.20 | 9.4x18.8 | 1.2 | 0.0054 | 0.54 | 3762 |
| 2x35 | 6 | 1.40 | 11.0x22.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 2x50 | 6 | 1.40 | 12.3x24.6 | 0.641 | 0.0046 | 0.46 | 7011 |
| 2x70 | 12 | 1.40 | 14.1x28.2 | 0.443 | 0.004 | 0.4 | 10354 |
| 2x95 | 15 | 1.60 | 16.5x33.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 2x120 | 15 | 1.60 | 18.1x36.2 | 0.252 | 0.0035 | 0.35 | 17339 |
| 2x150 | 15 | 1.80 | 20.2x40.4 | 0.206 | 0.0035 | 0.35 | 21033 |
| 2x185 | 30 | 2.00 | 22.5x45.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 2x240 | 30 | 2.20 | 25.6x51.2 | 0.125 | 0.0034 | 0.34 | 34679 |
| 4x10 | 6 | 1.00 | 6.5x26.0 | 3.08 | 0.0067 | 0.67 | 1650 |
| 4x16 | 6 | 1.20 | 8.0x32.0 | 1.91 | 0.0065 | 0.65 | 2512 |
| 4x25 | 6 | 1.20 | 9.4x37.6 | 1.2 | 0.0054 | 0.54 | 3762 |
| 4x35 | 6 | 1.40 | 11.0x44.0 | 0.868 | 0.0054 | 0.54 | 5177 |
| 4x50 | 6 | 1.40 | 12.3x49.2 | 0.641 | 0.0046 | 0.46 | 7011 |
| 4x70 | 12 | 1.40 | 14.1x56.4 | 0.443 | 0.004 | 0.4 | 10354 |
| 4x95 | 15 | 1.60 | 16.5x66.0 | 0.32 | 0.0039 | 0.39 | 13727 |
| 4x120 | 15 | 1.60 | 18.1x72.4 | 0.252 | 0.0035 | 0.35 | 17339 |
| 4x150 | 15 | 1.80 | 20.2x80.8 | 0.206 | 0.0035 | 0.35 | 21033 |
| 4x185 | 30 | 2.00 | 22.5x90.0 | 0.164 | 0.0035 | 0.35 | 26732 |
| 4x240 | 30 | 2.20 | 25.6x102.4 | 0.125 | 0.0034 | 0.34 | 34679 |
