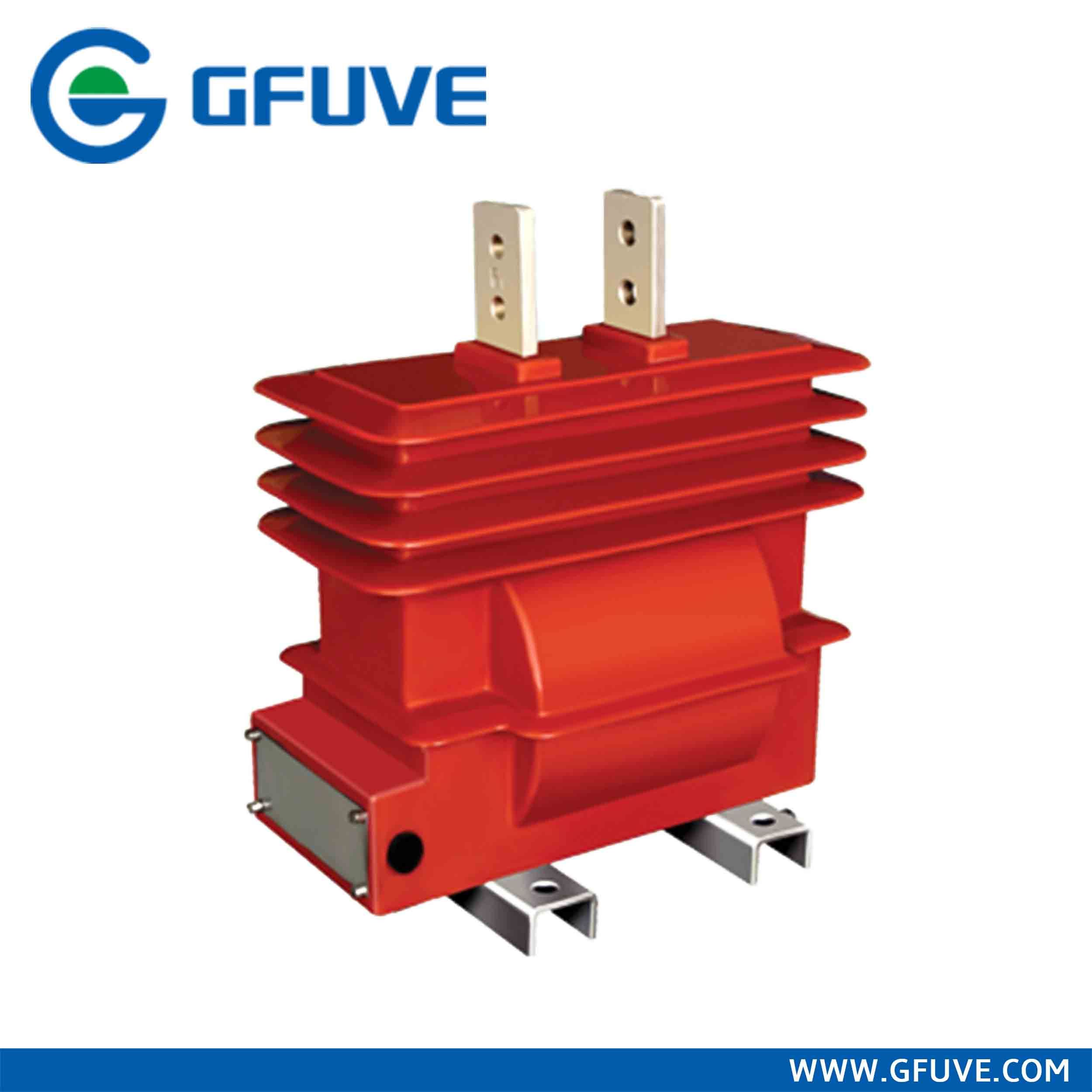

10kv Outdoors Industrial Post Type Current Transformer

Name: 10kv Outdoors Industrial Post Type Current Transformer
Brand: all-electronics-online.com
SKU: 722160202
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 35/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZW-10Q
Keyword:	10kv Current Transformer
Model:	10kv Outdoors CT Current Transformer
Rated Primary Current (a):	10-1500A
Accuracy Class:	0.2s, 0.5s
Surface Creepage Distance (mm):	460
Wt (Kg):	23
Color:	Red
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

10KV Outdoors Industrial Post Type Current Transformer
The 10KV medium voltage current instrument transformers LZZW-10Q are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection. The current transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 11kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
The outdoor instrument current transformers LZZW-10Q are fully enclosed and cast in epoxy resin. Instrument transformer is equipped with one core and coil assembly rated for measurement and protection, and then output multi ratio. The current transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 11kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
Technical data

Rated primary current (A)	Ith/ls (KA r.m.s.)	Accuracy class combination	Rated secondary output(VA)	Surface creepage distance (mm)	Wt (KG)
10	1.44	3.6	0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.5(S)/0.5(S) 0.2(S)/5P 0.5(S)/5P	10	460	23
15	3.0	7.5
20,25	4.0	10
30	6.3	15
40, 50	9	22.5
60	12.6	31.5
75	15	37.5
100	18	45
150	25	55
200	50	110
250-600	60	130
750-1000	80	160
1200-1500	100	160

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
