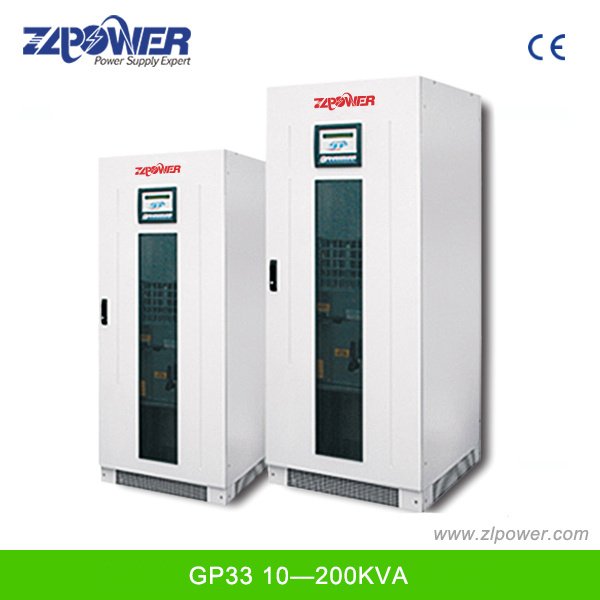

10kVA~200kVA 3phase IGBT Low Frequency Online UPS

Prod Model:	GP3310K-200K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Capacity:	10kVA~200kVA
Input Voltage:	400V
Frequency:	50/60Hz
Power Factor:	0.9 with Harmoic Filter
Mac Recharge Current:	0.2*C10
Current Crest Factor:	3:1
Remote Control:	Epo and Bypass
Remote Signaling:	Volt Free Contacts
Efficiency Smart Mode:	Upto 98%
Protection Degree:	IP20
Phase:	Three Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Zlpowr,OEM

Product Description

10KVA~200KVA 3phase IGBT Low Frequency Online UPS

1:UPS with 0.9 Output PF, THD<3%
2:Built-in Isolated Transformer
3:Low frequency online UPS use for Industry, telecom, severs, data center, army, hospital, Monitoring, Network etc.
4:Intelligent battery management maintains

Low Frequency Online UPS Key features
1) Rated at 0.9 output power factor, more applicable to server
Computer and network center that use PFC technology in a large scale, and deliver more Active power than
Conventional UPS

2) Advanced distributed active parallel technology can realize parallel operation of 6 UPS
Units without the need of centralized bypass cabinet

3) 6-inch extra large LCD that display 12 language( Chinese.English.Russian.Spanish.French^)

4) The efficiency of the machine is more than 94%, and reach 98% in ECO mode.

5) Use advanced 6th generation DSP and full digital control technologies to realize higher
System stability

6) Intelligent battery management maintains battery automatically to prolong the battery life

7) Standard input/output filter improves the system EMC performance

8) Layered independently-sealed ventilation channel and redundant fan, circuit boardswith protective paints and a dust filter embedded make it highly efficient to dissipate heat and protect the product effectively under severe environment

UPS Ssytem Application:
1:Data management equipment and system
2:Automatic control systems
3:Hospital
4:Mini office system
5:Telecommunication systems
6:Bank
7:Industry
8:Labs
9:Alarm System
10:Building, Off-board etc

Payment Details:
Payment Terms:Negotiation
Minimum Order:1Unit
Delivery Details:
FOB Port:Shenzhen
Lead Time:5 - 25 days
Product Certifications:CE Certificate

Model

GP3310 ~ GP33200 series Low Frequency Online UPS

Capacity (VA)

10K

15K

20K

30K

40K

60K

80K

100K

120K

160K

200K

Noninal output capacity

8KW

12KW

16KW

24KW

32KW

48KW

64KW

80KW

96KW

128KW

160KW

Operate type

Double conversion low frequency online type

Input

voltage

220V/380, 230/400, 240/415V, ±25%

Phase

Three phase +N+G

Frequency

50Hz/60Hz±5%

Input power factor

0.95(with input filter)

Soft start

0-100% 5sec

Output

Voltage

220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load)

Phase

Three phase +N+G

Frequency

50/60Hz (1±5%, AC mode), 50/60Hz (±1%, Battery mode)

Power factor

0.8

Output wave

Pure sine wave

Distortion

Linear load <3%, non linear load<5%

Battery voltage

Standard battery voltage

360V/384V

Floating charge

405V/432V

Terminal voltage

315V/336V

Charge current

1A-50A (Can calculate and set according to battery configuration software)

Maximum discharge current

28

42

56

85

113

169

225

282

338

381

507

Main Function

Active voltage change

0-100%±5%

Instant recover time

<10ms

Imbalance voltage

<±5%,<±1%( Balance load voltage)

Overload capacity

125%→10min,150%→1min

Static switch

Automatic

Protection

UPS over current, short circuit, battery low voltage, over heat

Cold method

Compel aeration ( temperature control mode)

Noise

60-65dB

Display

LED\LCD display

Communication port(Optional)

RS232, SNMP, dry-contact

Alarm

Alarm with buzzer and indicators

Environment

Temperature: 0-40C  Humidity: 0-90%

Net weight

kgs

210

258

350

400

480

900

1100

1200

1250

1380

1520

Size

L*W*H (mm)

700×520×1100

800×600×1200

800×600×1500

1200×900×1600

2000×900×1800
