| Prod Model: |
HP9116C PLUS |
| Model: |
High Frequency Online UPS |
| Output Power Factor: |
0.9 |
| Frequency: |
50/60Hz |
| Parallel Working: |
3 PCS UPS |
| Transfer Time: |
0ms (AC Mode to Battery Mode) |
| Input Voltage Range: |
Single Phase: 120 ~ 275VAC ( 176-275VAC Full Load |
| Nominal Voltage: |
208/220/230/240VAC |
| Battery Voltage: |
192/216/240VDC |
| Voltage Distortion: |
Linear Load<2% ,Non-Linear Load<5% |

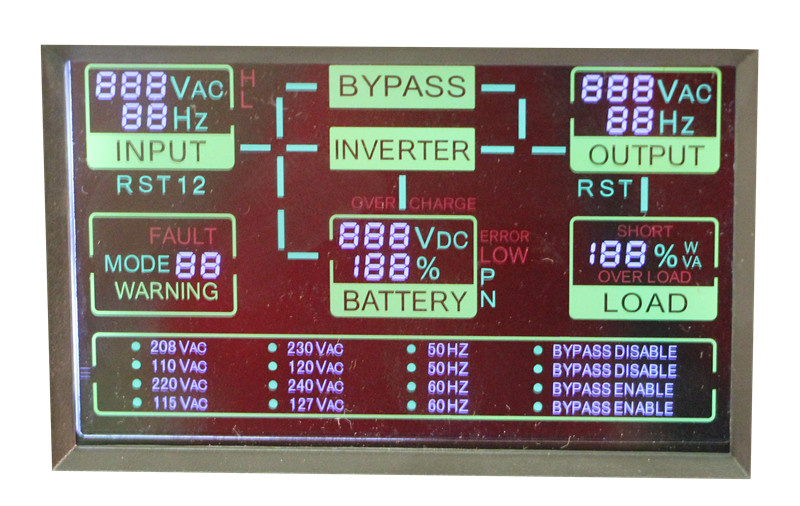

| LCD Display: |
Input/Output Voltage, Frequency, Battery Voltag, B |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

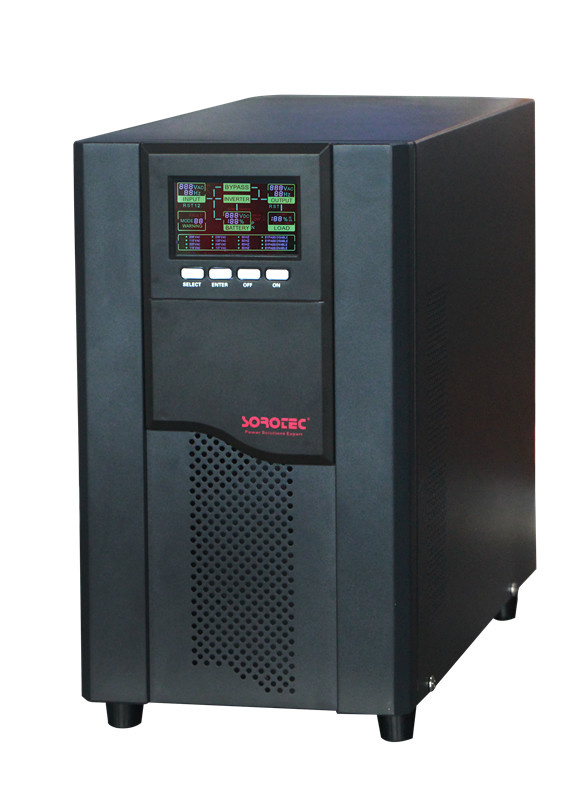

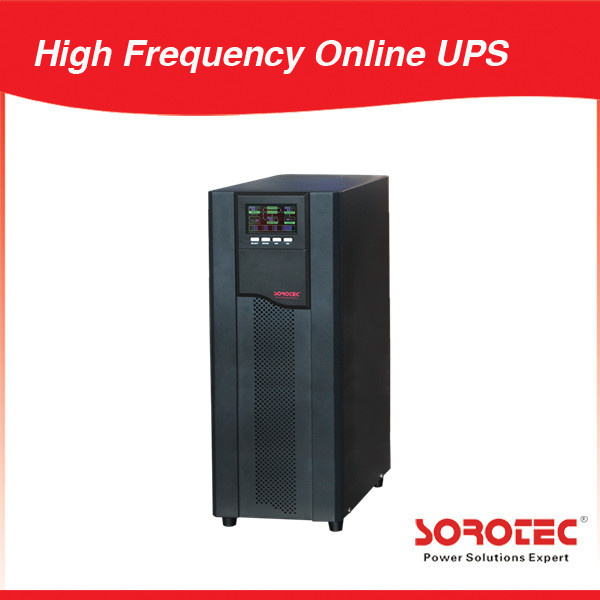

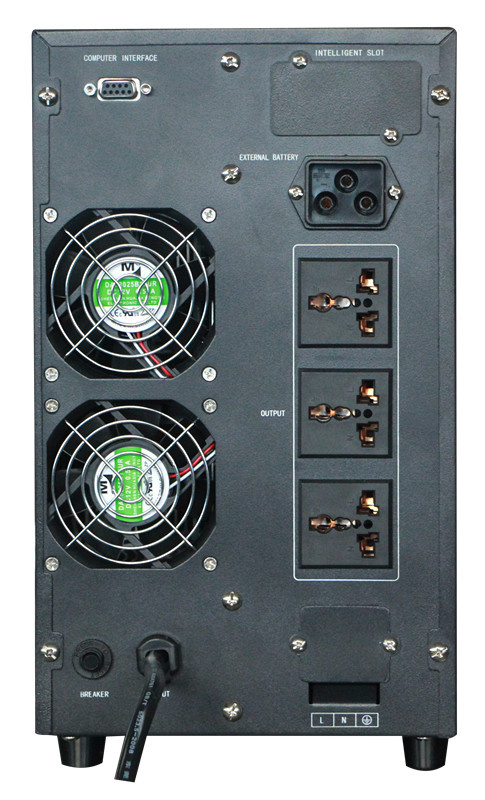

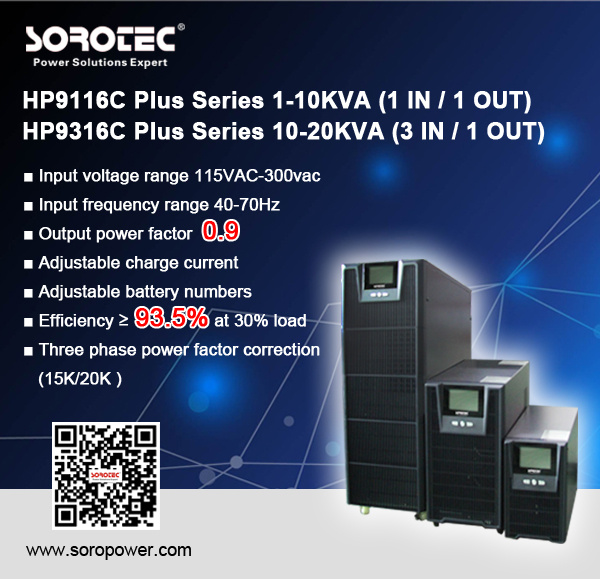

10KVA 9KW Double Conversion High Frequency Online UPS
Muilti-function and Friendly Design
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%.
Product application areas
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on.
Advanced Parallel Technology
1. Stable parallel control technology make sure current sharing to 1%.
2. Select trip technology can avoid and isolation system fault then improved system availability.
3. Flexible extension capacity and redundance management that can satisfy all kinds of 4. requirements.
5. Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
6. On line mode provides higher system availability.
7. High efficiency mode provides more economic operation.
8. Frequency conversion provides more stable output.
Product Brif
Highly Flexible and Extendable
Charge Current Can Be Adjust
1. Standant charge current 4A.
2.. Support more discharge time and more capacity battery for 8A charger Input topology design.
Input Technology Design
3. Support three phase input or single phase input for three phase UPS
4. Super wide input voltage and frequency range suitable for bad power electirc environment
5. Digital control DSP technology and best power component make the system safe and reliable
Battery Type Can Be Choice
6. Battery voltage can be choice depend on capacity , can satisfy different requirement.
7. Convenience to get more back up time and lower system invests.
8. Convenience to save cost of battery.
9. Intelligent battery monitors Charge current can be adjust.
Typical application
Data centre, bank station, network , communication equipment, office, automatic equipment, monitor equipment, control system
| Model | HP9116C/HP9316 Plus 1-20k series |
| Type | |
| Phase | 1 Ph in/1Ph out & 3Ph in/3 Ph out |
| Capacity | 1-20KVA |
| Output Power Factor | 0.9 |
| Nominal Voltage | 220/230/240/380VDC |
| Nominal Frequency | 40-70HZ |
| Parallel Working | Maximum 3 units |
| Battery Voltage | 24VDC/36VDC/48VDC/72VDC/96VDC |
| Transfer Time | 0ms |
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Technical Parameter:
| Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |
| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |
| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
