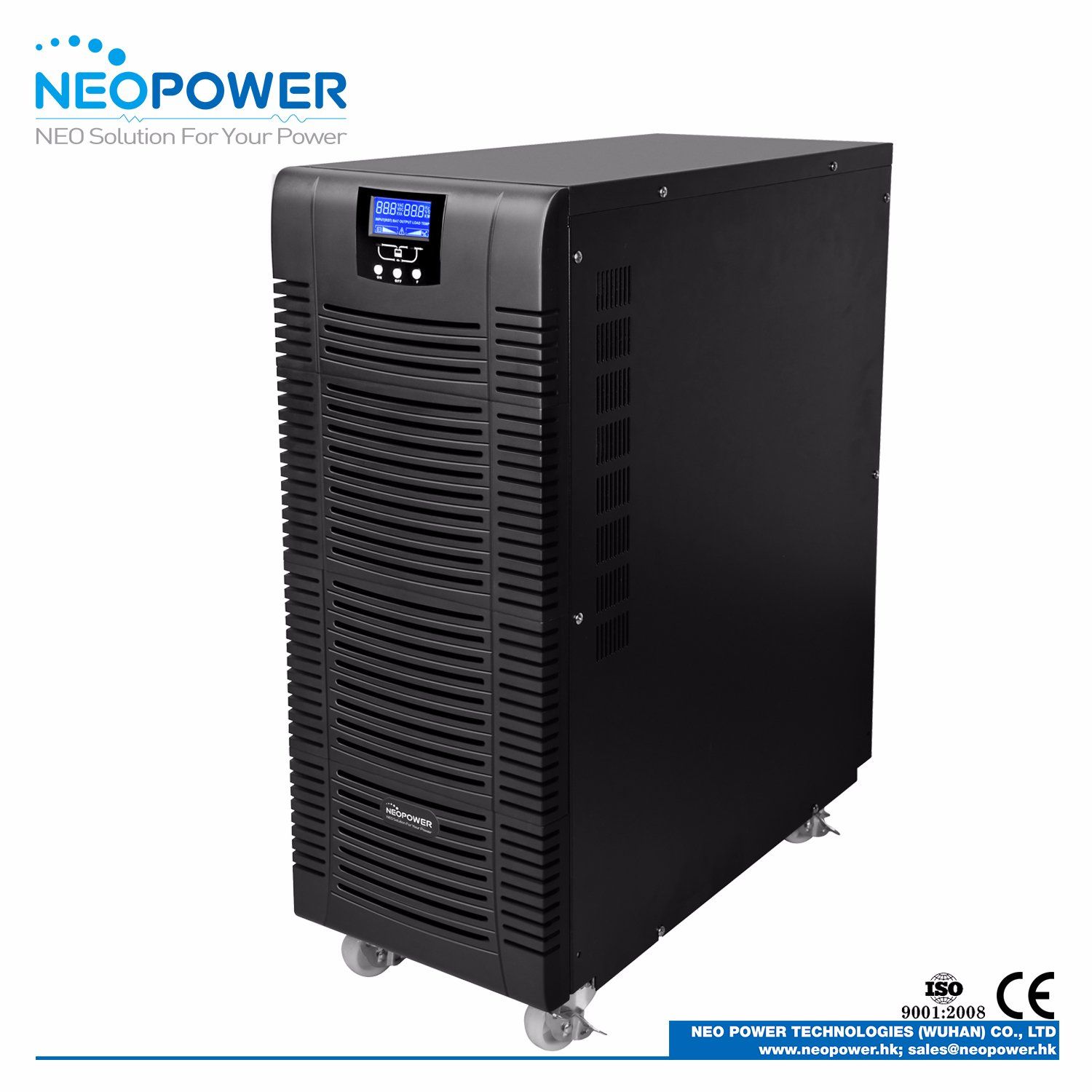

10kVA Digital Online UPS RS232 RS485 High Frequency

Name: 10kVA Digital Online UPS RS232 RS485 High Frequency
Brand: all-electronics-online.com
SKU: 822026425
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 655-740/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	NP3110
Capacity:	10 kVA
Power Rating:	8 Kw
Input Voltage:	210 ~ 480 VAC
Power Factor:	0.8/0.9 Optional
Wave Form:	Pure Sine Wave
Battery Voltage:	192 VDC
Features:	No Noise Operation
Remote Control:	RS232 + Intelligent Port
Certificate:	Ce
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Classification:	Power Supply
Brand:	Neopower

Product Description

Model	NP3110
Capacity	10 kVA
Power Rating	8/9 kW
Input Voltage	210 ~ 480 Vac, three phase + N + PE
Input Frequency	46 ~ 64 Hz (auto sensing)
Input Power Factor	>0.95
Output Voltage	220/230/240 Vac +/-1%, three phase + N + PE
Output Frequency	input frequency synchronized (AC Mode); 50/60 Hz +/-0.1% (Battery Mode)
Output Power Factor	0.8/0.9
Wave Form	Clean Sine Wave
Crest Factor	3 : 1
Battery Type	VRLA
Battery Voltage	192 Vdc
Overload Ability	continuous / 30" / 1" (105% / 125% / 150%)
Transfer Time	0 ms
Display	LED (optional LCD)
Communication Port	RS 232 + intelligent port
Operation Temperature	0 ~ 50ºC
Humidity	20% ~ 90% (non-condensing)
Alarm	buzzer + LED indicators (+optional LCD display)
Standards	EMI: IEC62040-2; EMC: IEC61000-4-2~5
Dimension	260 * 533 * 501 mm
Net Weight	27 kG

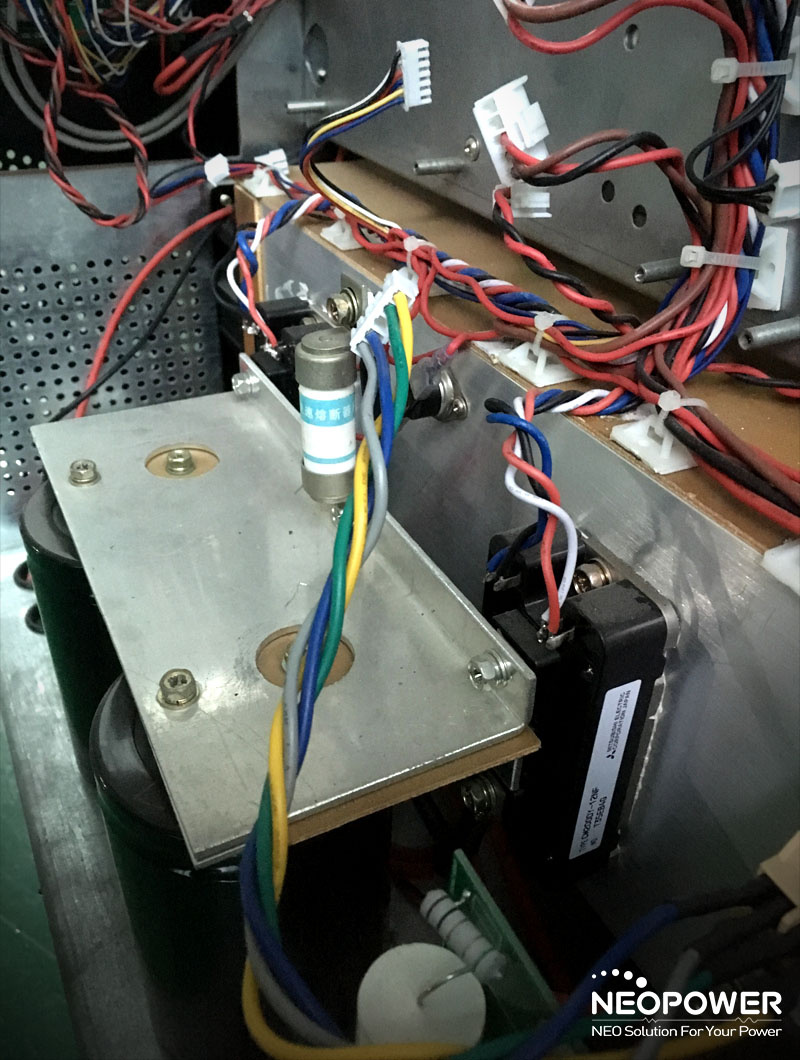

PRODUCT INTERIOR

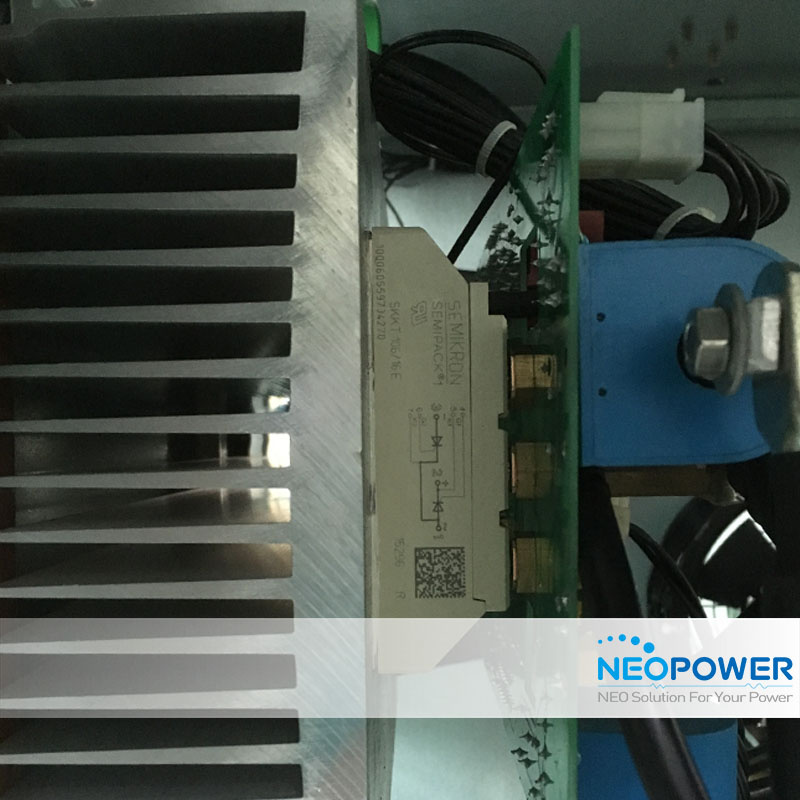

RECTIFIER PART

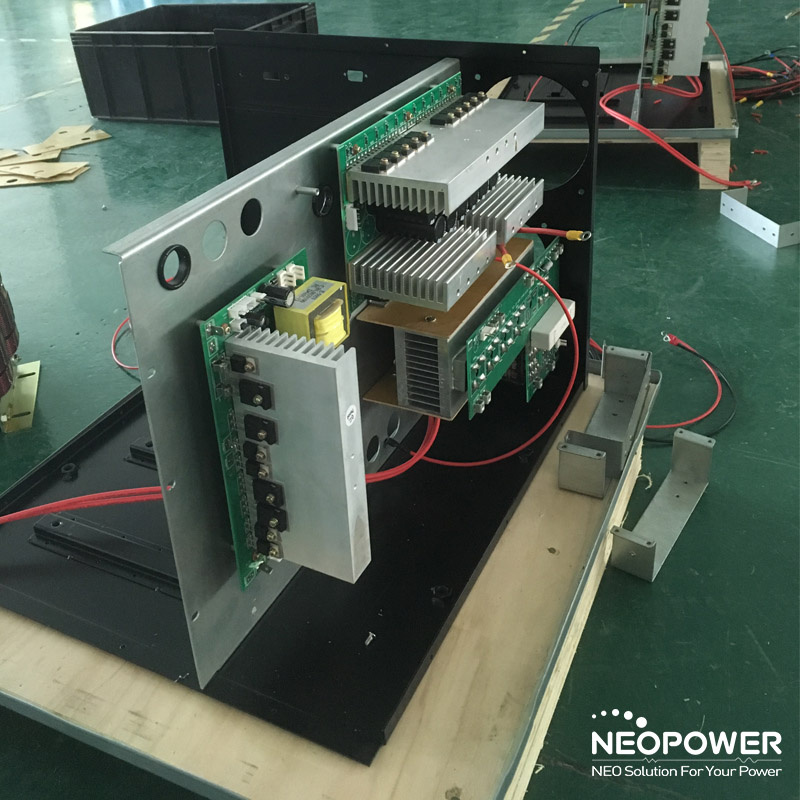

PRODUCT STRUCTURE

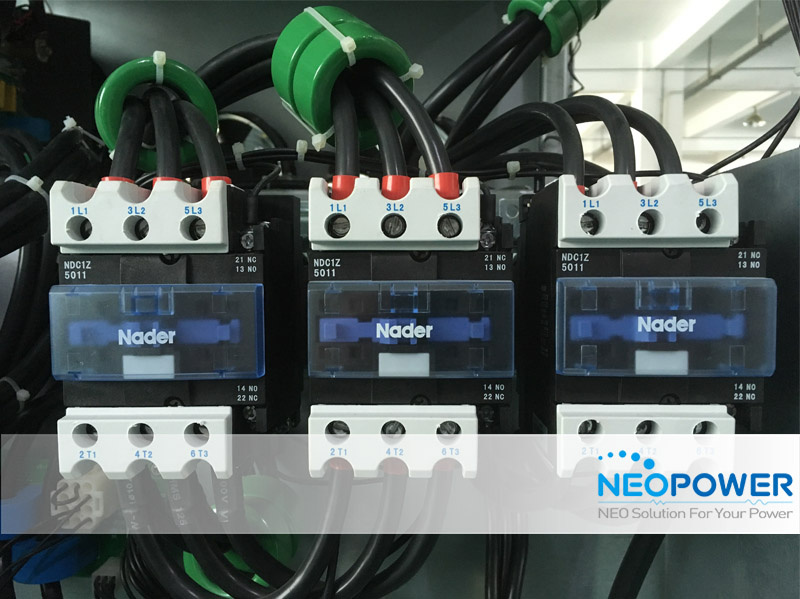

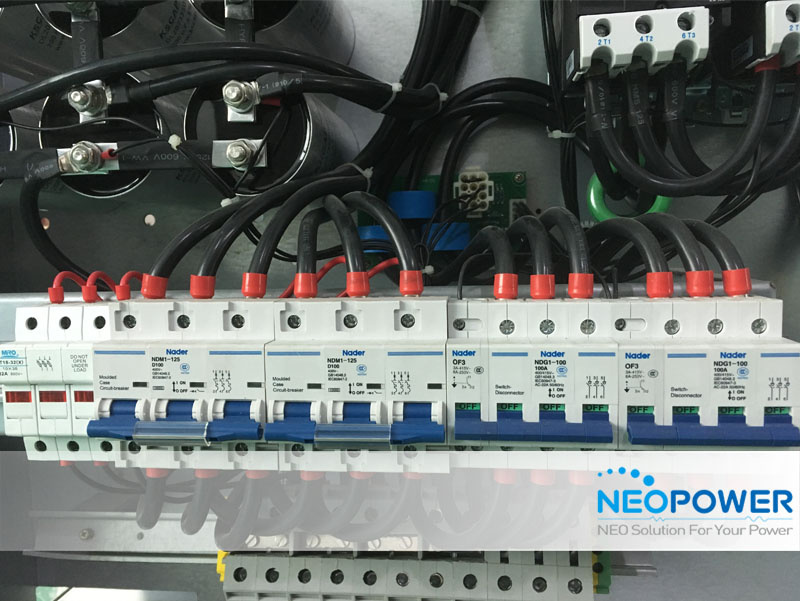

MILITARY BRAND BREAKERS & SWITCHES

FEATURES

Office Environment Special
Transformerless Design
Electronic Circuit Topology
Highly Integrated Interior Structure
Max 8 Units Parallel Connection Available
Quiet & Light
Desk Footprint
Automatic Restart
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LED/LCD Display Options

NEOPOWER was born for providing high efficient and reliable solutions and products for people who are living with power problems, like power surges, sags, spikes, fails, harmonic etc. Integrating R&D, manufacturing, marketing, and sales, NEOPOWER supplies various power products, such as Uninterruptible Power Supplies (UPS), Automatic Voltage Regulators/Stabilizers (AVR/AVS), Inverters & Chargers, Load Banks, Voltage Optimizers, Voltage Transformers, Surge Protective Devices (SPD), and Power Distribution Units (PDU).

NEOPOWER set foot in power optimization in early 1990s. Now the power product range covers miscellaneous fields: Not only precision machines in telecommunications, IT, TV or radio broadcasting, and medical systems, but also heavy equipment in oil & gas, military, mining, HVAC, fire-fighting, and building. Where there are power problems, there are NEO Solutions.

Certified with ISO9001, NEOPWOER has received wide recognition from partners in Africa, Middle East, Southest Asia, Europe, the Caribbean, and Latin America during past decades, and has exclusive distributors in Kenya, Papua New Guinea, and Zimbabwe, authorized distributors in Ghana, Zambia, Ethiopia, and Nigeria, and Philipines exclusive distributor is in progress.

NEO: The New, Effective, Optimistic attitudes towards your power problems!

Slogan: NEO Solution For Your Power

Purpose: To be a global leading expert in power optimization.

Mission: To multiply values for our customers and our employees, to improve energy efficiency for our society.

Vision: After equipped with NEOPOWER products, people are no longer tormented by the poor power quality from their daily life, production, and work.

Value: Adhering to the customer demand-oriented development and sincere customer care principles, deeply understanding customers' demands, providing instructive solutions and finally creating value for them.

Quality: Pursuing high-quality products and efficient services, taking an uncompromising attitude towards the quality problems.
