| Prod Model: |
SVC-10KVA |
| Markets: |
Eastern Europe,Africa,Mid East,Eastern Asia |
| Power: |
10kVA |
| Certificate: |
ISO9001 and Ce |
| Efficiency: |
80% |
| Color: |
General Color |
| Service: |
OEM/ODM |
| Current Type: |
AC |
| Phase: |
Single Phase |
| Usage: |
SVC |
| Frequency: |
Low Frequency |
| Application Range: |
Home Appliance |
| Brand: |
Ruikang |
Product Description
Factory history:
Established in year 1995, with 22 years of experience,we have built up the professional teams of R&D,technology,production,supply and marketing with our target of buiding a centennial enterprise and global brand.
We are specialized in all kinds of power supply products contain automatic voltage regulator/stabilizer,UPS, inverter,step up&down transformer and battery charger with full set of auto production equipment and 300 workers.
We also insist on manufacturing electronic component like hardware,circuit board,coil,consent,plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Product description:
Servo motor AVR stabilizer
Manufacturer price and high quality
OEM and ODM service
CE,ISO9001.SONCAP certification

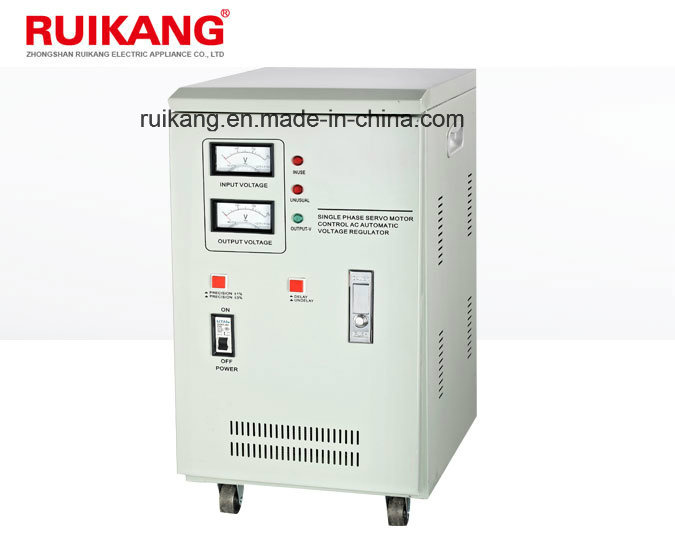

Floor standing type AC Servo motor voltage regulator
Specification:
| Model | 5KVA | 10KVA | 15KVA | 20KVA |
| Capacity | 80%when input voltage reach to 190V |
| Technology | Aluminum coil/Copper coil,servo motor- toroidal transformer |
| Phase | Single phase (one transformer controlled) | Single phase(two transformer controlled) |
| Double display | Input and output voltage display(Meter / digital) |
| Input | Voltage Range | 150-250V |
| Frequency | 50/60Hz |
| Output | Voltage | AC 220±3%V |
| Protection | High voltage protection | √ | √ | √ | √ |
| Low voltage protection | √ | √ | √ | √ |
| High temperature protection | √ | √ | √ | √ |
| Enviromental | Operating Temperature | 0-40°C |
| Stortage Temperature | 15°C-45°C |
| Operating Relative Humitity | 10%RH-102%RH,non-condensing |
| Physical | Pcs/Carton | 1 | 1 | 1 | 1 |
| Packing Size(mm) | 380*330*490 | 380*330*490 | 80*400*585 | 80*400*585 |
| G.W(KGS) | 21 | 40 | 53 | 56 |
| N.W(KGS) | 20 | 39 | 32 | 55 |
Applications:
Voltage regulator is uesd to automatically adjust the output voltage of the power supply circuit or power suupply equipment.
It can be widely used in places require stable power supply voltage,such as industrial and mining enterprise,oil,railways,constraction sites,schools,hospitals,telecommunications,hotals,research and other departmentas of computor,precision machine tools,computor tomography(CT),precision instruments,test equipment,elevator lighting,imported equipment and production lines,etc.Also adapted to electrical equipmentwith large load fluctuations and end users of those supply voltage is too high and with large flucations in low voltage distribution network,especially for all of power places those have hiah requirements on the grid voltage waveform.Compensation power regulator can be accessed by fire,water,small generators.
Factory History
Established in year 1995, with 22 years of experience,we have built up the professional teams of R&D,technology,production,supply and marketing with our target of buiding a centennial enterprise and global brand.
We are specialized in all kinds of power supply products contain automatic voltage regulator/stabilizer,UPS, inverter,step up&down transformer and battery charger with full set of auto production equipment and 300 workers.
We also insist on manufacturing electronic component like hardware,circuit board,coil,consent,plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Packing:
Double packing:color box and outer carton
FAQ
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer xiaolan port (zhongshan) for delivery.
Q 3. How's the delivery time?
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 10000 pcs per month.
Q 5. May I know the standard of package?
A. We usually use carton for small units, and use strong wooden case for floor standing big units. Each unit is well protected by color box.
Q 6. What kind of material of transformer?
A. We have two types, one is 100% copper and the other is copper with aluminum. It depends on your requirements. In fact, those two have no difference if normal work well.
Q 7. Would you accept to use our logo?
A. If you have good quantity, it is absolutely no problem to do OEM.
Q 8. What is your market?
A. Our products are popular export to Africa, South Asia, Middle East, Europe, and so on. Most are our regular customers and some are under developing. Surely we hope you can join us and make mutual benefits from our cooperation.
Q9. What kind of certificate you have?
A. We have CE, SONCAP and testing report for all our products.
Q10. Could you offer Form A or C/O?
A. Absolutely it is not a problem. We can prepare relative documents to foreign affairs office or other office to apply for the certificate.
Established from Year 1995, we strictly mange with ISO 9001: 2008 standard, we have built up the professional teams of R&D, technology, production, supply and marketing with our target of building a centennial enterprise and global brand. We are specialized in all kinds of power supply products contain Automatic Voltage Regulator/ Stabilizer, UPS, Inverter, Step up & down Transformer and Battery Charger with full sets of auto production equipments and 300 workers in 20, 000 square meters of factory. Also we insist on manufacturing electronic component like hardware, plastic parts, circuit board, coil, plug and socket by ourselves to ensure high quality and competitive price for global valued customers.
Persisting to the business concept of "Stalwartness, Innovation, Developing, Entrepreneurship" and business principle of "Customer First, Quality First and Service First", we offer OEM and ODM service for all of our customers, and we will deeply devote to our role as a responsible corporate citizen in China, and around the whole world.
