Ningbo Deye Inverter Technology Co., Ltd. >> 10kw Grid Tie Inverter, 10kw String Inverter, Three Phase Output Power Inverter

10kw Grid Tie Inverter, 10kw String Inverter, Three Phase Output Power Inverter

10kw Grid Tie Inverter, 10kw String Inverter, Three Phase Output Power Inverter
Price: US $ 880-900/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

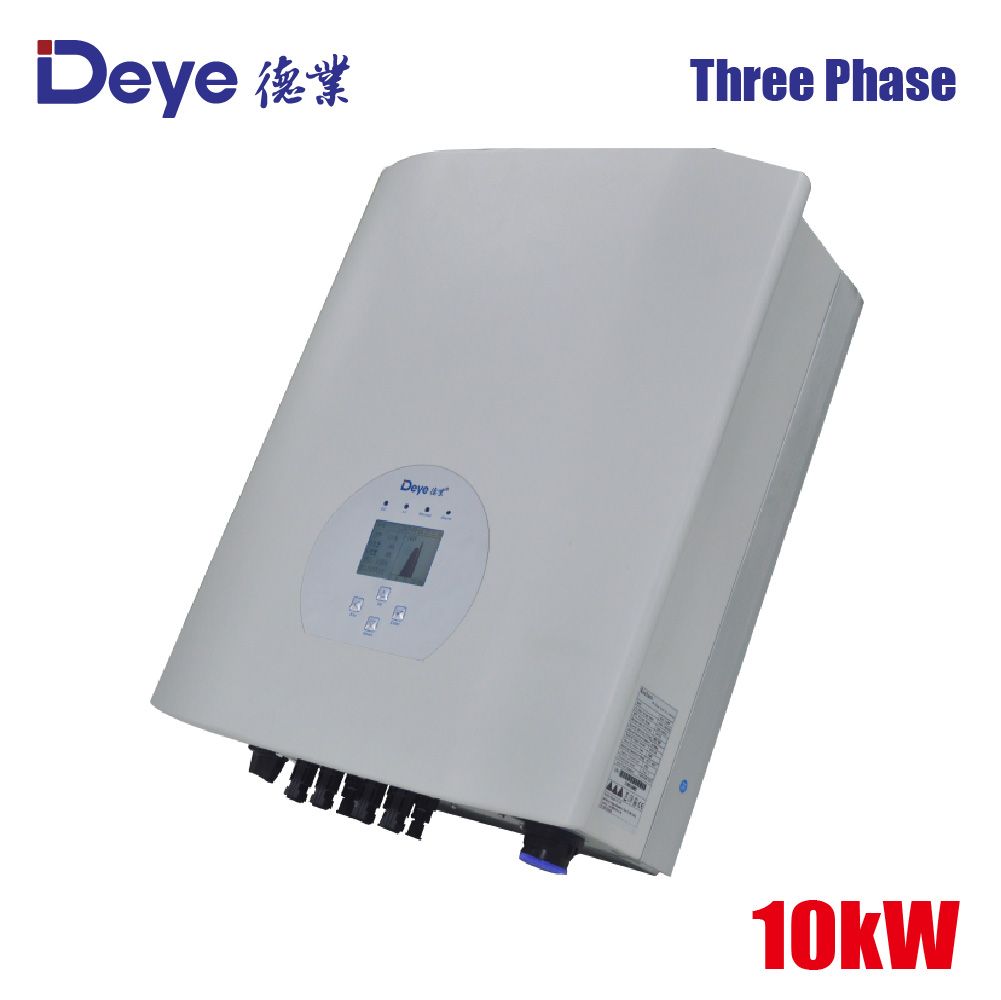

Prod Model: SUN-10K-G
Product Name: String Inverter
Input Voltage Range: 323-418(Optional)

Product Description

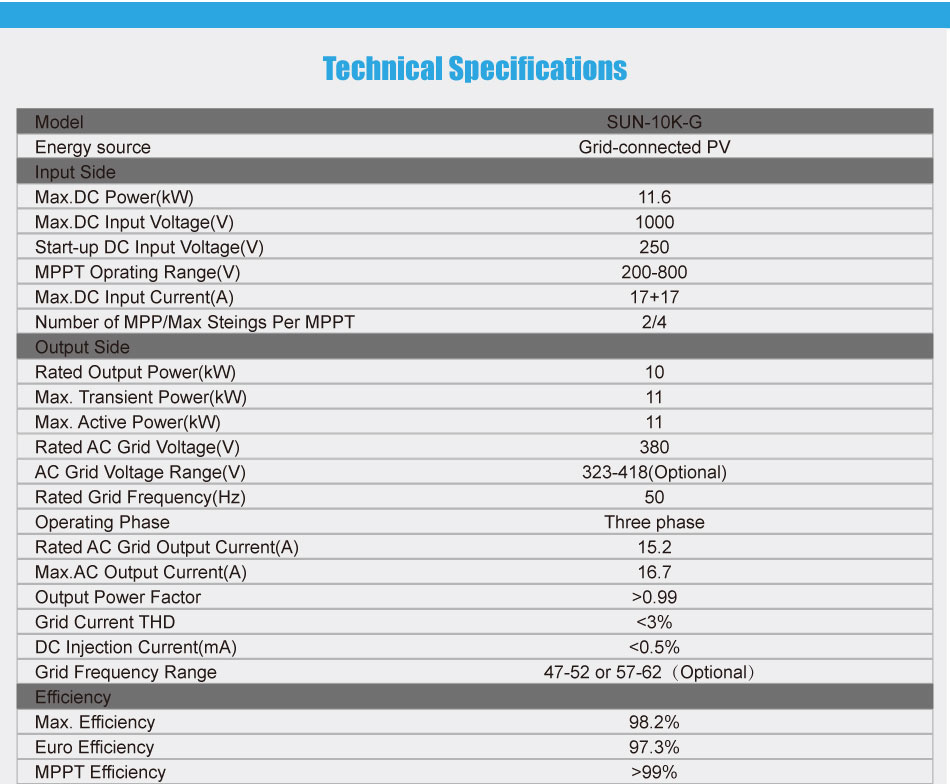

Model:SUN-10K-G
Energy sourceGrid-connected PV
Input Side
Max. DC Power(kw)11.6
Max. DC Input Voltage(V)1000
Start-up DC Input Voltage(V)250
MPPT Oprating Range(V)200-800
Max. DC Input Current(A)17+17
MPPT Number/Max. String Number2/4
Output Side
Rated Output Power(kw)14.5
Max. Transient Power(kw)15
Max. Active Power(kw)15
Rated AC Grid Voltage(V)380
AC Grid Voltage Range(V)323-418(Optional)
Rated Grid Frequency(HZ)50/60(Optional)
Operating phaseThree phase
Rated AC Grid Output Current(A)22
Max. AC Output Current(A)24
Output Power Factor>0.99
Grid Current THD<3%
DC Injection Current(mA)<0.5%
Grid Frequency Range47-52 or 57-62(Optional)
Efficiency
Max. Efficiency98.3%
Euro Efficiency97.5%
MPPT Efficiency>99%

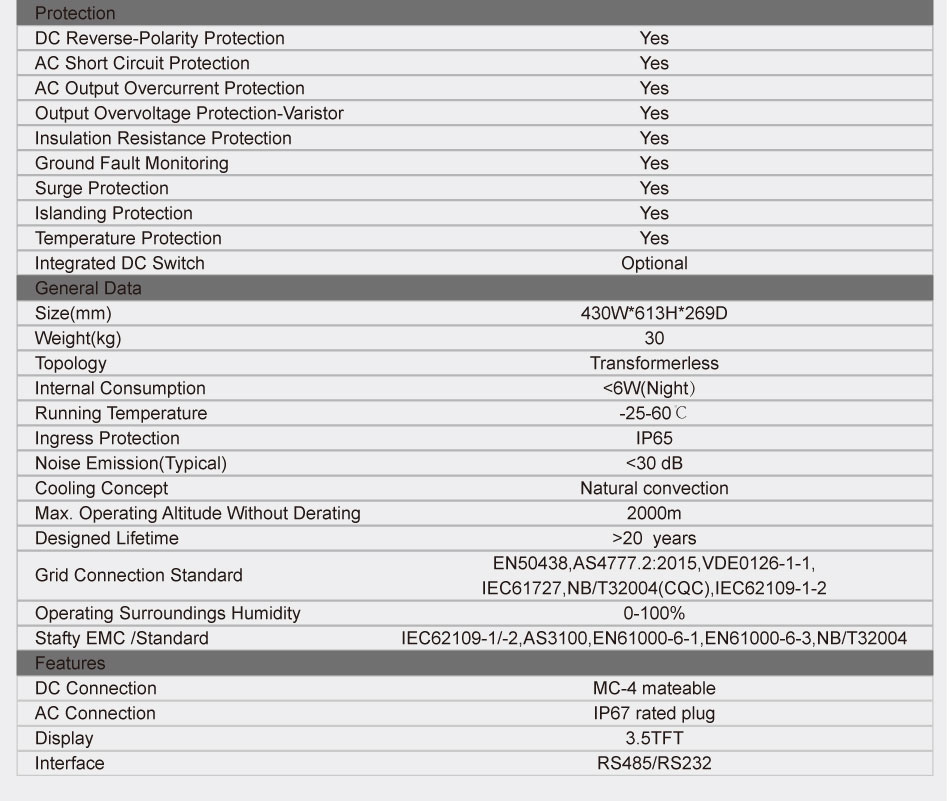

Protection
DC Reverse-Polarity ProtectionYes
AC Short Circuit ProtectionYes
AC Output Overcurrent ProtectionYes
Output Overvoltage Protection-VaristorYes
Insulation Resistance ProtectionYes
Ground Fault MonitoringYes
Surge ProtectionYes
Islanding ProtectionYes
Temperature ProtectionYes
Integrated DC SwitchOptional
General Data
Size(mm)455W*550H*240D
Weight(kg)30
TopologyTransformerless
Internal Consumption<6W(Night)
Running Temperature-25-60ÂșC
Ingress ProtectionIP65
Noise Emission(Typical)<30dB
Cooling ConceptNatural convection
Max. Operating Altitude Without Derating2000m
Designed Lifetime>20 years
Grid Connection StandardEN50438, AS4777.2:2015, VDE0126-1-1, IEC61727, NB/T32004(CQC), IEC62109-1-2
Operating Surroundings Humidity0-100%
Stafty EMC/StandardIEC62109-1/-2, AS3100, EN1000-6-1, EN61000-6-3, NB/T32004

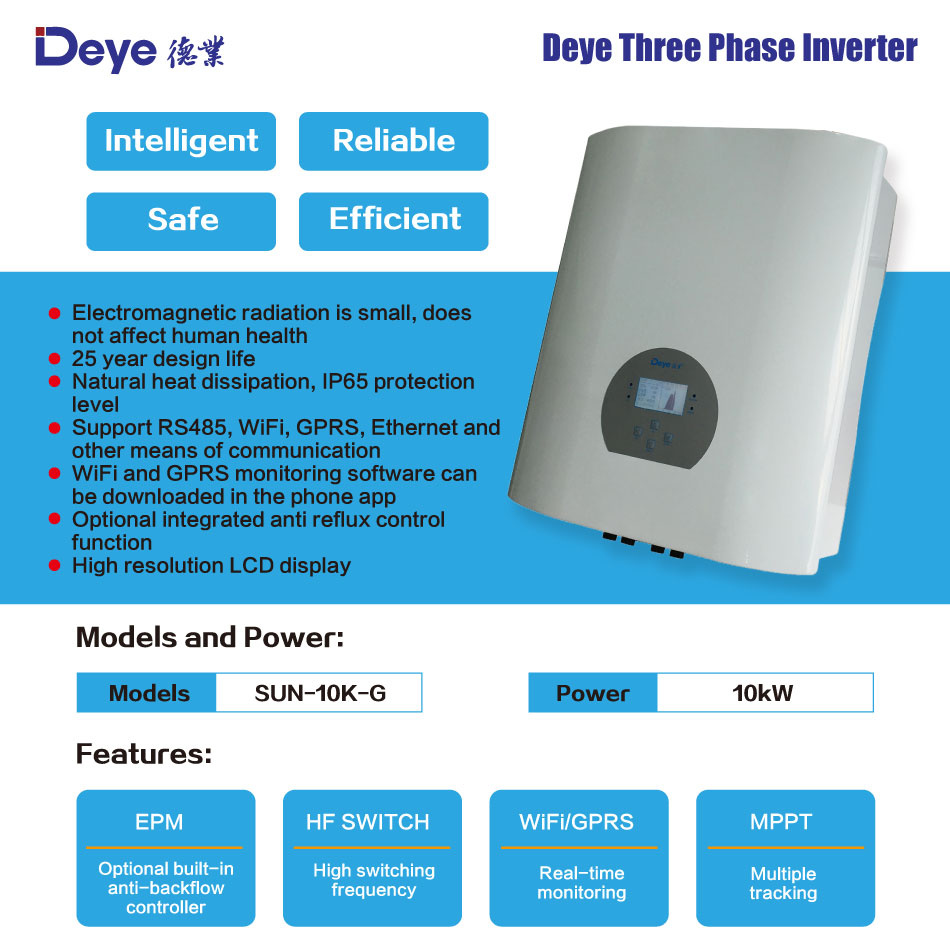

Features
DC ConnectionMC-4 mateable
AC ConnectionIP67 rated plug
DisplayLCD-256-128/3.5TFT
InterfaceRS485/RS232






Any question and more details, contact me freely.

Blake

10kw Grid Tie Inverter, 10kw String Inverter, Three Phase Output Mass Power Inverter

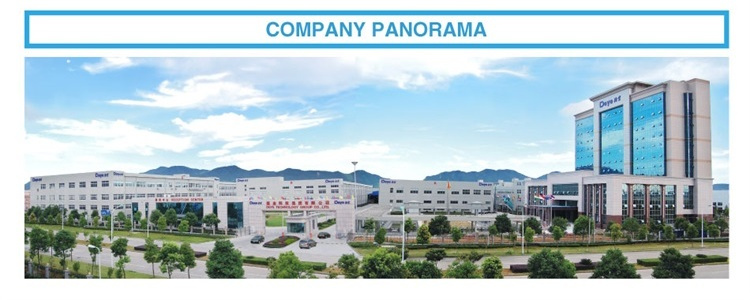

Ningbo Deye Inverter Technology Co., Ltd. Which predecessor is Sunshine Technology (China)Co., Ltd. is a professional High-Tech company developing, producing and marketing Solar related products including Grid tie inverter, Off grid inverter, MPPT solar charge controller etc. Our company has got the national software enterprise certification. We own provincial engineering technology center. We have one of the most experienced reserch team who are experienced in development of solar related products. We have a remarkable power of technology, which has reached the national and international level. In recent years, in the field of solar inverter, we invested an huge amount of energy in developing and popularizing, we have established solid symbiosis with a couple of industry-leading enterprises including Texas Instruments, the biggest semiconductor manufacturer in the world. Deye group now own a 120 thousand square meters of development and production base and high presision automatic equipment. With a determined will to be better, a sustained innovation, and the pursuing of outstanding, we sincerely look forward to your partnership to make a better future.
