| Prod Model: |
HPM10KW |
| Voltage: |
48V/72V/96V |
| Rated Power: |
8kw-20kw |
| Efficiency: |
91% |
| Speed: |
2000-6000rpm(Customizable) |
| Weight: |
17kg |
| Casing: |
Aluminium |
| Length (Height): |
170mm |
| Diameter: |
206mm |
| Keyway Size: |
6.4mm(W) X 45mm(L) X 21.7mm(D:25.4mm) |
| Application: |
E-Motorbike Conversion |
| Operating Speed: |
Adjust Speed |
| Structure And Working Principle: |
Brushless |
| Excitation Mode: |
Permanent Magnet |
| Certification: |
Ce, SGS, |
| Brand: |
Golden Motor |
Product Description

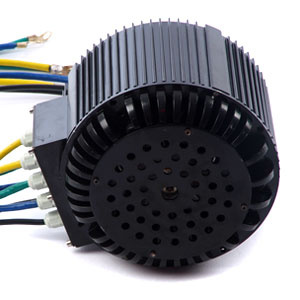

BLDC motor 10kW electric motorbike conversion kit 48v /72v /96v
Clean, Efficient, Light Weight, Powerful BLDC Motor Drive Kits
for Electric Car, ATV, Go-Kart, Golf Buggy
Model: HPM10KW -- High Power BLDC Motor
1. Voltages: 48/72V/96v
2. Rated power: 10KW
3. Peak power: 22KW
4. Speed: 3000-6000rpm
5. Rated torque: 26Nm
6. Peak torque: 90 Nm
7. Efficiency: >90%

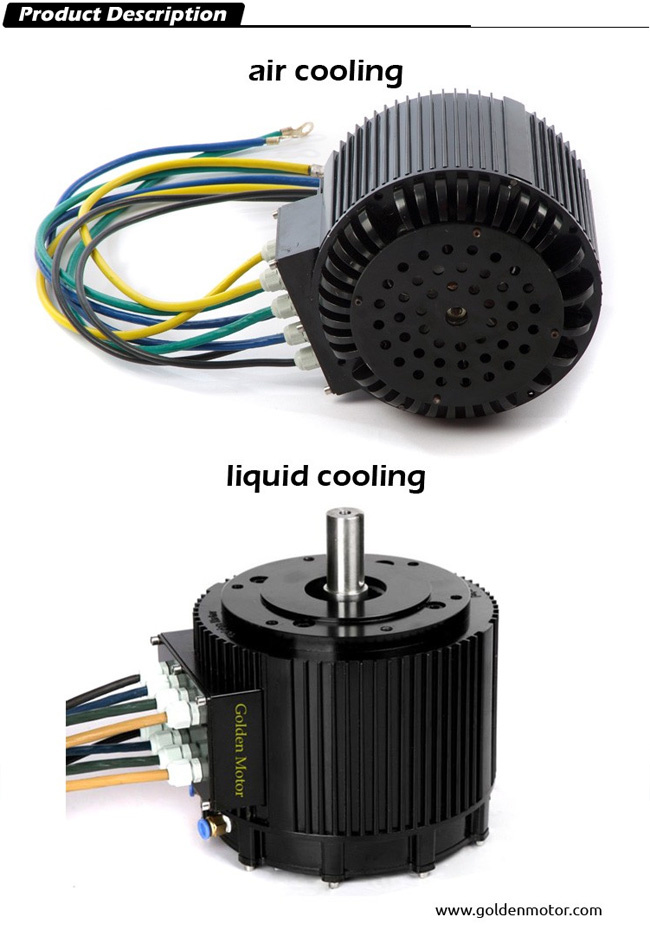

8. Weight: Air cooling(17kg);Liquid cooling:(17.7kg)
9. Cooling: air or liquid cooling

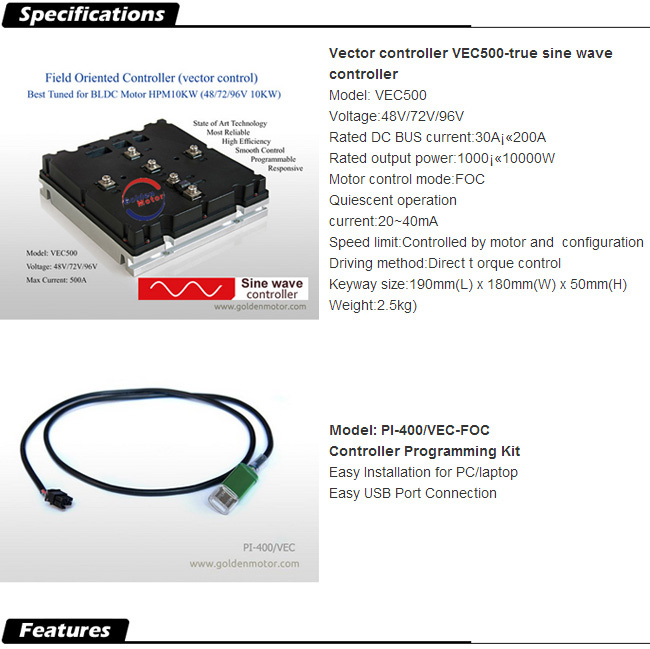

Vector controller VEC500-true sine wave controller
Model: VEC500
Voltage:48V/72V/96V
Rated DC BUS current:30A¡«200A
Rated output power:1000¡«10000W
Motor control mode:FOC
Quiescent operation
current:20~40mA
Speed limit:Controlled by motor and configuration
Driving method:Direct t orque control
Keyway size:190mm(L) x 180mm(W) x 50mm(H)
Weight:2.5kg)
Long working life (>20,000 hours)
Low noise, high torque
Excellent performance characteristics
High efficiency (>90%)
High reliability
Rated voltage : 48V-120 VDC
Rated power : 10KW
Rated speed: 2000-6000 rpm
Stepless speed control, dual-direction
10KW BLDC motor will apply for the car ,motorcycle,golf cart,ATV and UTV.
