Nanjing Willgain Power Equipment Co., Ltd. >> 10kw Pure Sine Wave Inverter (Three Phase)

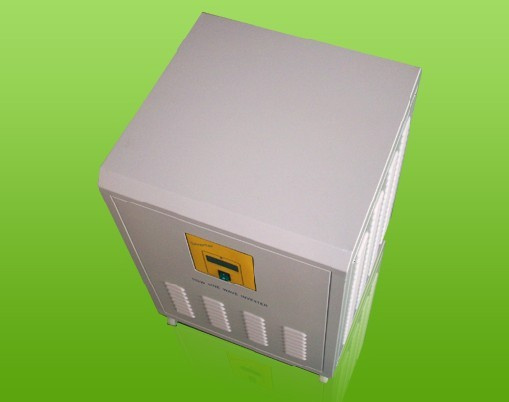

10kw Pure Sine Wave Inverter (Three Phase)

10kw Pure Sine Wave Inverter (Three Phase)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: WI50-120
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inverter Type: Pure Sine Wave Inverter

Product Description

PERFORMANCE FEATURES:
Original Mitsubishi intelligent power module assembly
Frequency toroidal transformer, which makes the inverter has high efficiency and low no-load loss
Perfect protection and alarming function, thus the system has a high stability
LCD display function, visually display battery voltageand AC output voltage
Pure sine wave output, compared with square wave or modified wave, has higher efficiency and higher loading capability
Adopts SCM to control, which makes the circuit structure simple, and the control method and control strategy more flexible
Optionalby-pass function ensures the continuity and stability of system operation
European CE certification
ModelWI100- 1 20WI100-220WI100-240
Rated Output Capacity10kVA
Rated Battery Voltage120VDC216VDC240VDC
Over Voltage Shutoff170VDC306VDC340VDC
Over Voltage Recovery165VDC297VDC330VDC
Under Voltage Shutoff105VDC189VDC210VDC
Under Voltage Recovery120VDC216VDC240VDC
No Load Loss1.04A0.55A0.5A
Output Wave FormPure Sine Wave
Display ModeLCD
Display parametersBattery Voltage, Output Voltage, State parameters
Cooling ModeFan
Rated Output Voltage380VAC
Wave Distortion≤ 4%
Output Frequency50/60 Hz± 0.05Hz
Dynamic Response5%
Overload Capacity120%1min, 150%10s
Inverter EfficiencyMaxmum90%
Noise(1m)≤ 40dB
Insulating Strenght1500VAC, 1min
Protection FunctionBattery over voltage protection, Batteryunder voltage protection,
Battery reverse-connectionprotection, Output over load protection,
Output short circuit protection, Over temperature protection.
WorkingAmbient Temperature-20-50º C
WorkingAltitude≤ 4000m
WorkingAmbient Humidity0~90%, no condensing
In order to serve our customers better. Our company can adjust parameters configuration according to customer' s requirement.
Nanjing Willgain Power Equipment Co., Ltd. is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw, and also spare parts for cable machine.

We are a new and developing corporation producing new type of permanent magnet motors and generators. Our products are widely used in electric vehicles, wind/water generating systems, oil production equipments, and other speed regulation facilities. Our products accord to the new energy policy, which are energy-saving, high efficient, clean and low-carbon, having vast market prospect. All the products have national patents and own intellectual property. Our factory has about 100 employees, having our own researcher rooms producing workshops product lines and testing rooms. Welcome customers, business associations and friends from all over the world to contact us and seek cooperation for mutual benefits.

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
