Wenzhou Bingo Imp. & Exp. Co., Ltd. >> 10L/Min Piston Flow Switch for Water Heater

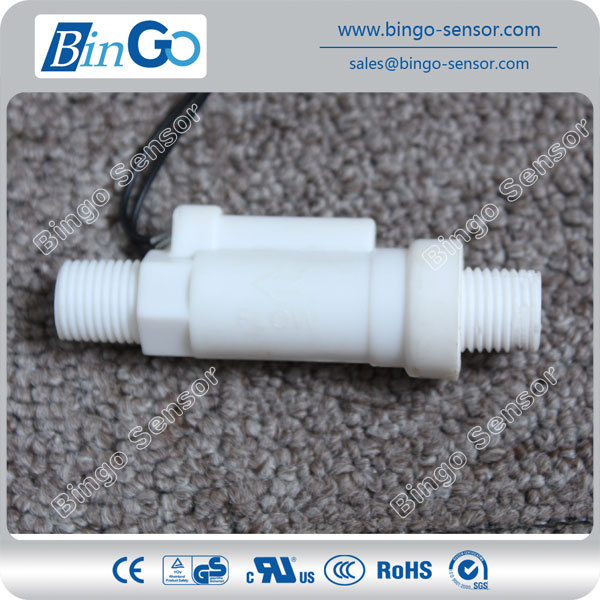

10L/Min Piston Flow Switch for Water Heater

10L/Min Piston Flow Switch for Water Heater
Price: US $ 5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: FS-M-PSP02-GB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Housing Material: PP
Medium: Clear Water and Non-Aggressive Fluid
Contact Form: Spst No
Protection Grade: IP65
Start-up Rate: 1L/Min

Product Description

Piston Type Flow Switch
Piston type flow switch has a magnetic ring inside the piston.when the water pressure pushes the piston to the position of the reed switch,the switch is triggered and generates ON/OFF signal.

Product information


ModelFS-M-PSP02-GB
MediumClear water and Non-aggressive fluid
Housing materialPP
Long time
working temperature
≤60ºC
Max.fluid
temperature
≤80ºC
Start-up flow rate1L/min
Max.flow rate10L/min
ConnectionG1/4''
Opearte pressure<0.4Mpa
Max.fluid pressureMax.1Mpa
Electrical rate0.5A/100VDC,10W
Contact formSPST NO
Protection gradeIP65

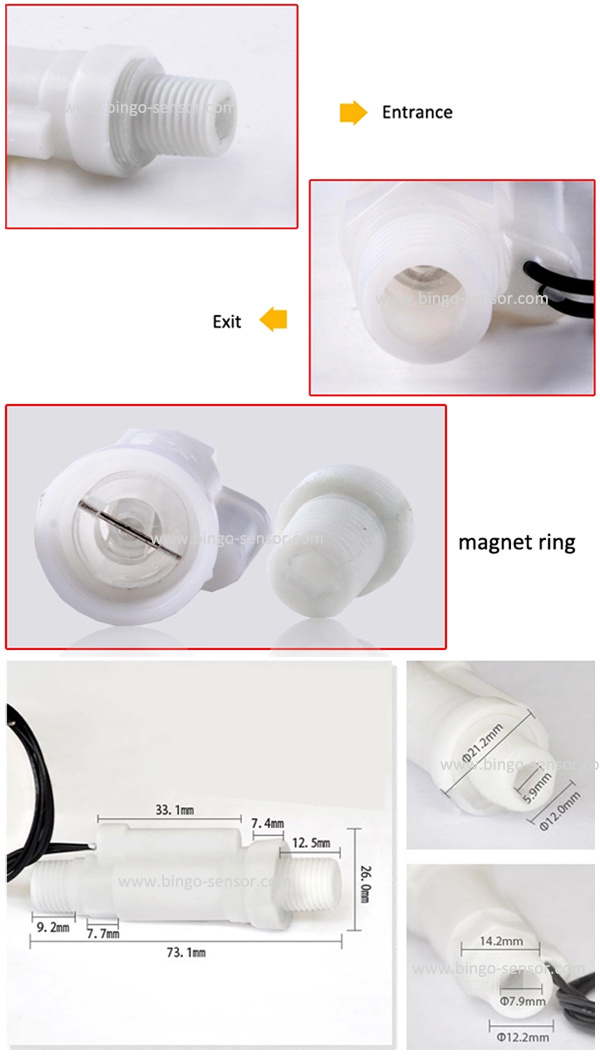

Product Detail

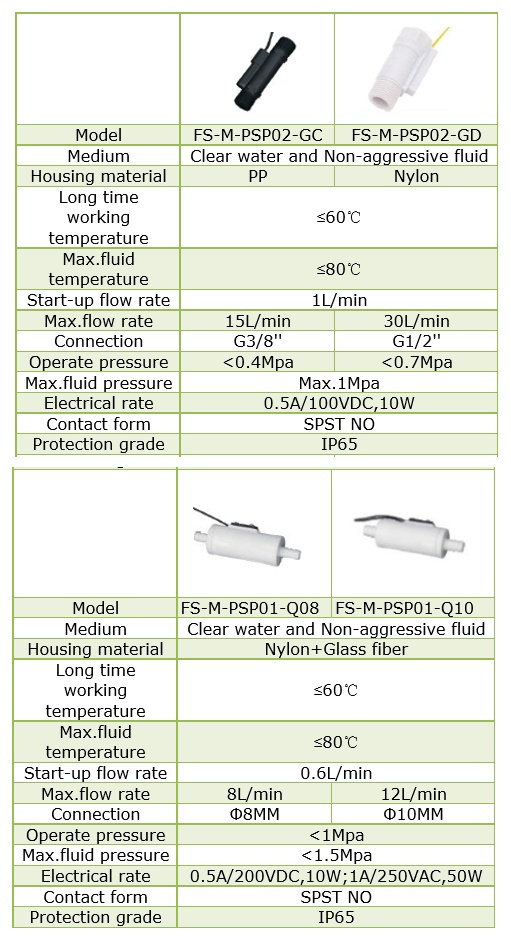

Other Type
About US

more information,you can browse our website:www.bingo-sensor.com



Bingo Industrial and Trading Company started to run businiess since 2006, which is located in Wenzhou Yueqing ---- The world-famous city for low-voltage electric apparatus.

We owns followed two subsidiary corporations:

Bingo sensor Technology Co., Ltd. ----- concentrates on pressure, level and flow control product.

Yueqing tongfa electronic Co., Ltd. ----- is engaged in electronic&electrical product, security product.

After several years development, Bingo now becomes a professional supplier for

* Pressure, level and flow control product applied to:

Water supply system

HVAC

Household appliances (refrigerator, Furnace, heater, dish-washing machine,

Water dispenser, food waste disposer and so on)

Steam control system

Vehicle

Oil transporting system

Medical equipment

* Security product

Warning light

Roadway safety

Mining safety

Alarm sire

* Electronic&Electrical product

Tact switch

Micro switch

Toggle switch

Foot switch

Earphone jacket

Industrial plug&socket

With many years' business accumulation and good cooperation with more than 150 companies, we are capable to offer our clients products with the competitive prices, satisfied quality and excellent services. Part of our products own CE, UL, TUV certificate.

At present, Bingo Industrial and Trading Company has 50-60 employees. We have set up business relationships with customers from more than 50 countries and regions. Through running business honestly, we earned the reputation from both local government and oversea clients.

We strongly insist on the principle of "quick response, the best service, satisfactory quality, and competitive price", and sincerely hope that every customer around the world would have the feeling of "Bingo" after the first business cooperation with us.

Looking forward to a win-win relationship with you!
