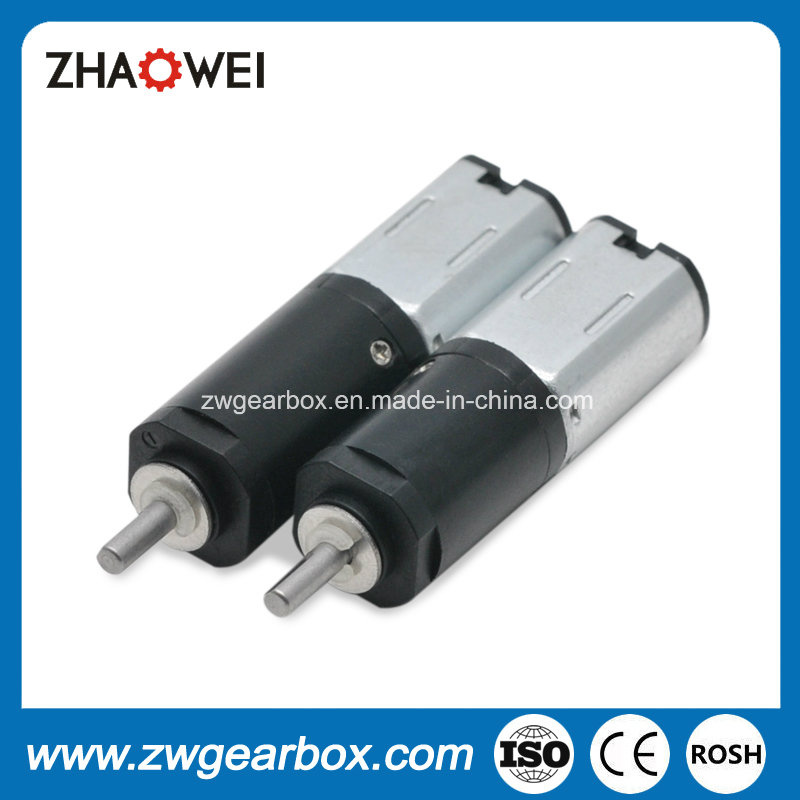

10mm 3V Small DC Geared Reduction Motor

Prod Model:	ZWBPD010010-249
Rated Voltage:	3.0V DC
No Load Speed:	66rpm
No Load Current:	80mA(Max)
Rated Load Speed:	58rpm
Rated Load Current:	220mA(Max)
Torque:	158GF.Cm
Max Rated Torque:	1,300 GF.Cm
Ratio:	249:1
Gear Box Length L1:	19mm
Gearbox Type:	Reduction Motor
Application:	Power Perfect Pore
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-Proof
Type:	Gearbox Motor
Certification:	RoHS
Brand:	Zhaowei

Product Description

10mm 3V Small DC Geared Reduction Motor

Product Description:

Model: ZWBPD010010-249
Rated Voltage: 3.0V
No Load Speed: 66 rpm
No Load Current: 80 mA MAX
Rated Load Speed: 58 rpm
Rated Load Current: 220 mA MAX
Rated Load Torque: 158 gf.cm
Max Rated Torque of Gear Box: 1,300 gf.cm
Max Instant Torque of Gear Box: 4,000 gf.cm
Overall Length L: 34 mm
Gear Box Length L1: 19 mm

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length L1
	Rated	At No Load		At Rated Load				Overall Length L
	Voltage	Speed	Current	Speed	Current	Torque
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
ZWBPD010010-13	3.0	1329	70	1115	215	17	1.6	27.8	1300	4000	13	12.8
ZWBPD010010-19	3.0	909	70	763	215	24	2.4		1300	4000	19
ZWBPD010010-28	3.0	617	70	518	215	36	3.5		1300	4000	28
ZWBPD010010-46	3.0	375	80	315	215	39	3.8	30.9	1300	4000	46	15.9
ZWBPD010010-69	3.0	250	80	210	215	58	5.7		1300	4000	69
ZWBPD010010-102	3.0	169	80	142	215	86	8.4		1300	4000	102
ZWBPD010010-151	3.0	114	80	96	215	127	12.5		1300	4000	151
ZWBPD010010-168	3.0	98	80	86	220	106	10.4	34	1300	4000	168	19
ZWBPD010010-249	3.0	66	80	58	220	158	15		1300	4000	249
ZWBPD010010-368	3.0	45	80	39	220	233	23		1300	4000	368
ZWBPD010010-546	3.0	30	80	27	220	346	34		1300	4000	546
ZWBPD010010-809	3.0	20	80	18	220	512	50		1300	4000	809

above specifications just for reference and customizable according to requirements.

2D Drawing


Application

Audio and visual equipments	notebook PC, camcorder, car DVD, kinescope DVD, car CD player, camera, digital camera, headphone stereo, cassette tape recorder
Household application	electric shaver, tooth brush, kitchen appliances, hair clipper, sewing machines, massager, vibrator, hair dryer, rubdown machine, corn popper, scissor hair machine, vacuum cleaner, garden tool, sanitary ware, window curtain, coffee machine, whisk
Office automation equipments	CD-ROM, OA equipments, scanners, printers, multifunction machines copy machines, fax, FAX paper cutter, computer peripheral, bank machine
Automotive products	conditioning damper actuator, door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, automatic vending machine
Toys and models	radio control model, automatic cruise control, ride-on toy
Medical equipments	blood pressure meter, breath machine
Industrials	air freshener, display, flow control valves
Electric power tools	electric drill, screwdriver
Precision instruments	monitor, optics instruments


Product details show
