| Prod Model: |
UL1017 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
22-8AWG Solid/Stardard Bare Copper/Tinned Cooper |
| Insulation: |
PVC |
| Color: |
Any |
| Voltage Rating: |
600V |
| Test Voltage: |
2000V |
| Temperature: |
80 Degree |
| Flame Test: |
UL VW-1 & CSA FT1 & Jqa F-MARK Flame Test |
| Application Standard: |
UL 758, UL 1581 & CSA C22.2 No.210.2 |
| Name: |
10mm UL1017 PVC Stranded Core Electric Wire and Ca |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Jiukai or OEM |
Product Description
10mm UL1017 PVC Stranded Core Electric Wire and Cable
Product Description & Parameters
For general purpose internal wiring of electronic and electrical equipment.
Standard thickness, easy to peel, easy to cut. anti-acid & anti-alkali, oil resistant, moisture proof, mould proof, environmental etc.
Part-N0 | Conductor | Insulation | Insulation | Conductor Resistance |
| AWG | No./mm | Thickness(mm) | Diameter(mm) | at 20C MAX(Ω/km) |
| 003103001 | 22 | 1/0.643 | 1.15 | 3.05 | 54.3 |
| 003103002 | | 17/0.160 | 1.15 | 3.15 | 55 |
| 003103003 | 20 | 1/0.813 | 1.15 | 3.2 | 33.9 |
| 003103004 | | 26/0.160 | 1.15 | 3.35 | 34.6 |
| 003103005 | 18 | 1/1.024 | 1.15 | 3.4 | 21.4 |
| 003103006 | | 41/0.16 | 1.15 | 3.55 | 21.8 |
| 003103007 | 16 | 1/0.29 | 1.15 | 3.7 | 13.5 |
| 003103008 | | 26/0.254 | 1.15 | 3.95 | 13.7 |
| 003103009 | 14 | 1/1.63 | 1.15 | 4.05 | 8.45 |
| 003103010 | | 41/0.254 | 1.15 | 4.3 | 8.62 |
| 003103011 | 12 | 1/2.05 | 1.15 | 4.6 | 5.32 |
| 003103012 | | 65/0.254 | 1.15 | 4.9 | 5.43 |
| 003103013 | 10 | 1/2.59 | 1.15 | 5.2 | 3.34 |
| 003103014 | | 105/0.254 | 1.15 | 5.7 | 3.41 |
| 003103015 | 8 | 168/0.254 | 1.15 | 6.8 | 2.23 |

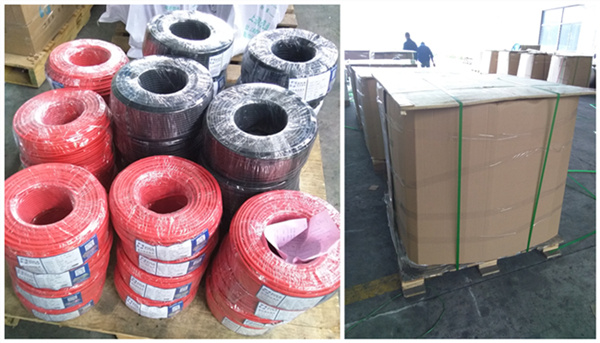

Packaging & Shipping
Packaging Details: Detail:
Package:1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requirement. |
| Delivery: 7-15 days |

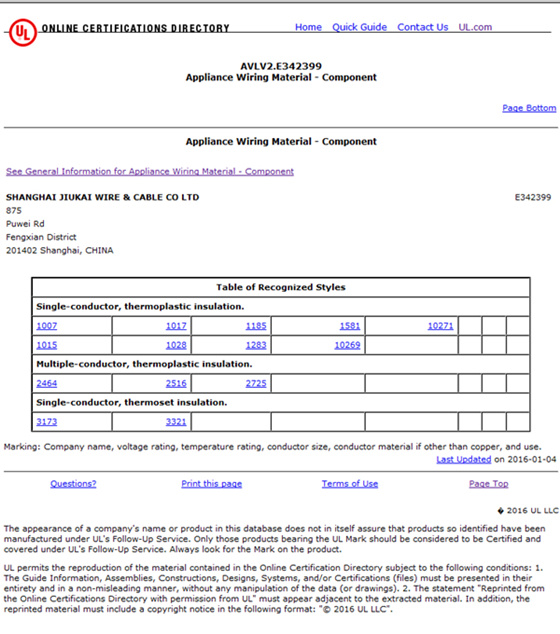

Certification
We passed UL, CCC, CE, VED etc. UL-E342399
I will give you copy of certification if you need more information.

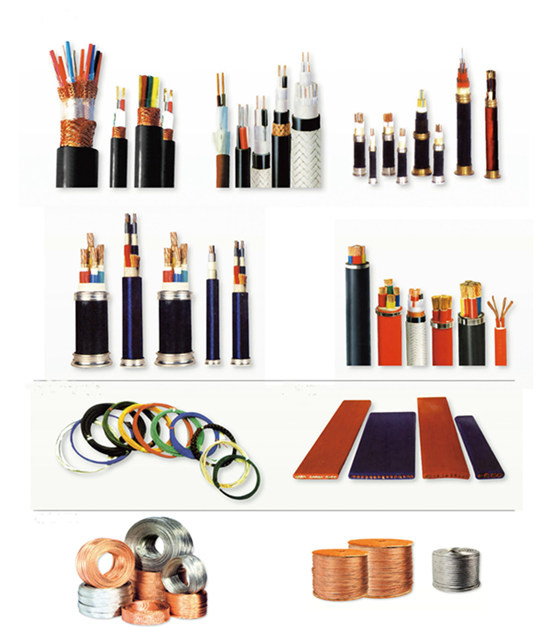

Related Produce
1: Solar Cable
2: Electric Vehicle Charging Cable
3: Elevator Cable
4: Coaxial Cable
Why Choose Us:
We are a professional wire and cable manufacturer
Quality control: Our defective products rate is 0.01%
Economically priced, exquisitely made
Adequate supply capacity, punctual delivery time
Best of sales service are provided

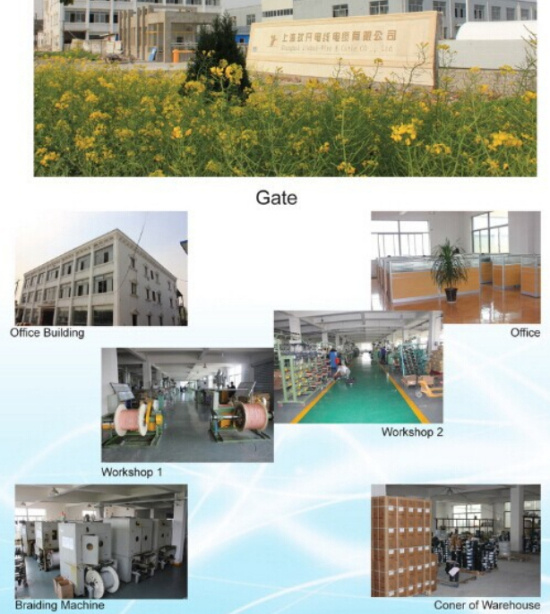

Company information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Contact Us
If you have another question, pls feel free to contact us as below:
10mm UL1017 PVC Stranded Core Electric Wire and Cable
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
