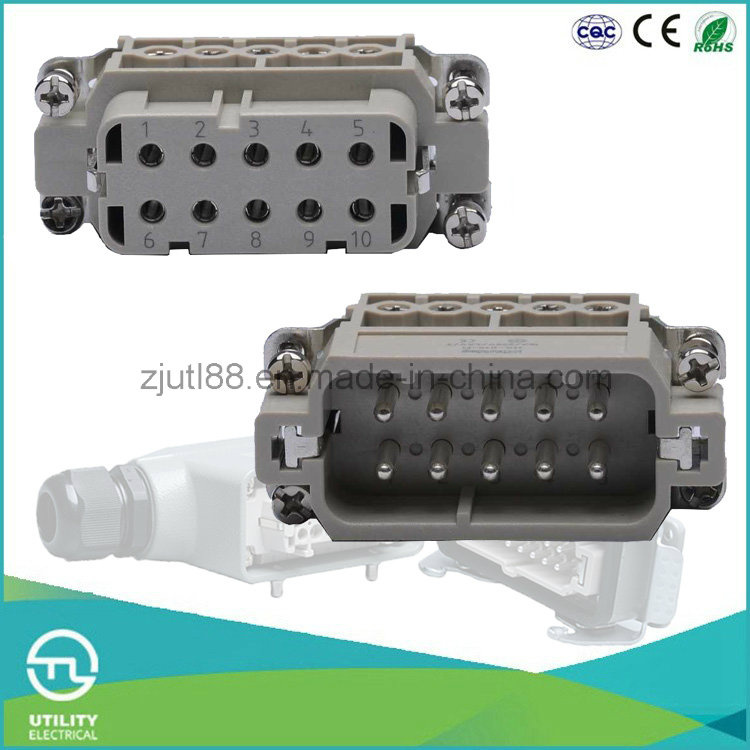

10p Compact Size Heavy-Duty Connector Insert 250V/16A

10p Compact Size Heavy-Duty Connector Insert 250V/16A
Price: US $ 3.4-3.8/Piece
Min Order: 10/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: UTL-HA-010-F/M
Type: Socket Terminals
Material: Silver-Plated Copper
Application: Waterproofing Heavy-Duty Application
Certification: Ce, CQC, RoHS
Brand: Utl

Product Description

UTL- Waterproofing Heavy-duty Connector

HA series- Compact (mini) size  Male-Female Inserts

UTL-HA-010-Male-Female Inserts with 10 contacts+PE

Product Description:

Heavy duty connectors are specifically designed for applications in extremely rough environments. Their modular design makes the distribution of power and signals simple.

HA series is the lessened size for smaller space and for up to 250V/16A. The number of contacts include 3/4/10/16/32+PE. The cost is also lower than HE series(Standard size).

Parameters:
Product Co.UTL-HA-010-F/M
Product descriptionMale/ Female plugable Insert
Number of contacts10+PE
Electrical
Rated Current16A
Rated Voltage250V
Rated Voltage conductor-conductor400V
Rated Impulse Voltage4kV
Pollution degree3
Working temperatures-40ºC to +125ºC
Flammability UL94- V-0
Material
Housing materialPolycarbonate
Insulation Resistance≥10^10Ω
Contact materialCopper Alloy(hard-silver plated)
Contact resistance≤1mΩ
ColorGrey-white
Mechanical working life-mating cycles≥500
Connection Capacity
Wire size1.0 -2.5mm²
AWG18-14
Tightening Torque0.5Nm
Stripping length7.0mm
clamping methodScrew-clamping
CertificationCE,CQC

For more infomation and product spec, please feel free to contact me. UTL is a professional manufacturer with 30-year experience in providing wiring solution in premium quality and affordable price.

OEM/ODM/Custom product can be made upon request!
