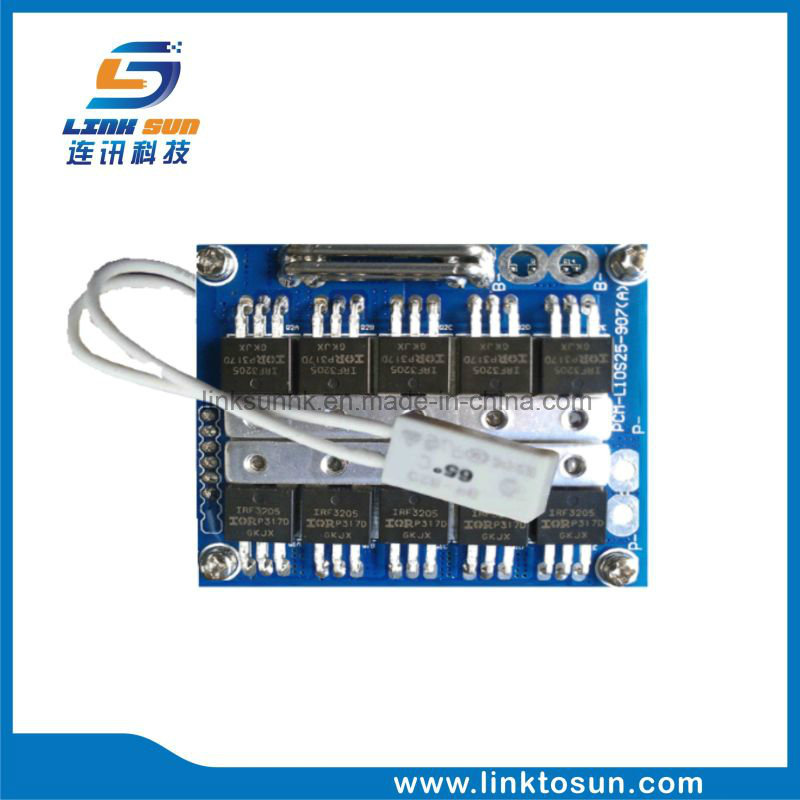

10s 30A BMS/PCB/PCM for E-Bike Battery Pack

Name: 10s 30A BMS/PCB/PCM for E-Bike Battery Pack
Brand: all-electronics-online.com
SKU: 732629752
Availability: InStock
Rating: 4.8 (62 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Series:	10s
Work Current:	30A
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

We have over six hundreds of PCM/BMS series products for your choice, most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.

Our main PCB/BMS normally adopt imported raw material for reliable quality, IC from Japan, MOS from USA, Components from Sumsang, Almost Zero RMA.

PCM-L10S25-907(10S)

No.

Test item

Voltage

Charging voltage

DC:42V CC/CV

Balance voltage for single cell

4.20±0.05V

Current

Balance current for single cell

84±10mA

Current consumption

≤20μA

Maximal continuous charging current

30A

Maximal continuous Discharging current

30A

Over charge Protection

Over charge detection voltage

4.25±0.05V

Over charge detection delay time

0.5S-2S

Over charge release voltage

4.05±0.05V

Over discharge protection)

Over discharge detection voltage

2.50±0.1V

Over discharge detection delay time

10mS-200mS

Over discharge release voltage

3.0±0.1V

Over current protection

Over current detection voltage

0.62V

Over current detection current

130±20A

Detection delay time

5ms-60ms

Release condition

Cut load, Auto release

Short protection

Detection condition

Exterior short circuit

Detection delay time

200-800us

Release condition

Cut load, Auto release

Resistance

Protection circuitry

≤20mΩ

Temperature

Operating Temperature Range

-40~+70ºC

Storage Temperature Range

-40~+125ºC

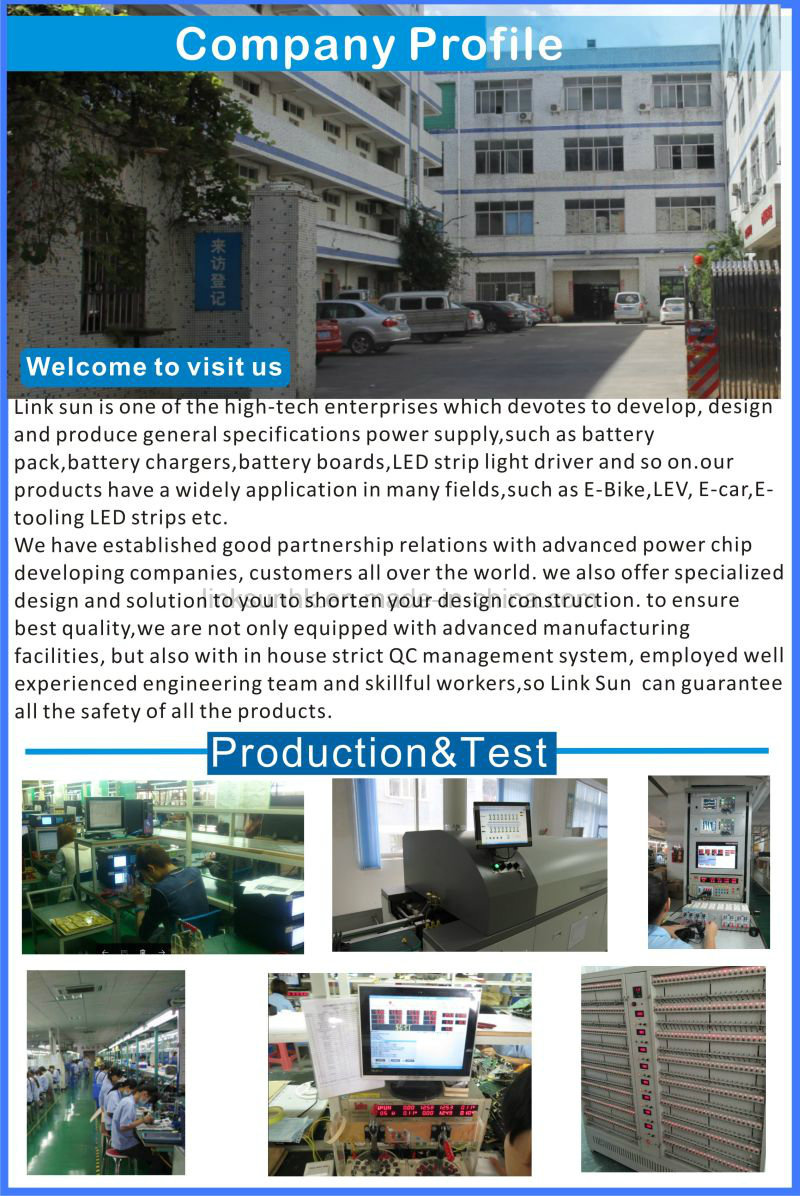

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
