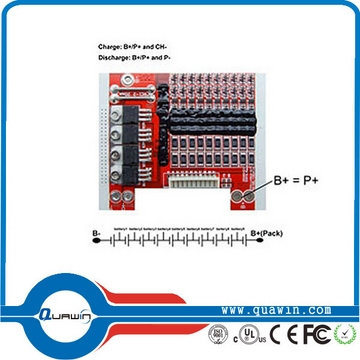

10s Battery PCM / BMS for 32V Lithium Battery/LiFePO4 Battery

Name: 10s Battery PCM / BMS for 32V Lithium Battery/LiFePO4 Battery
Brand: all-electronics-online.com
SKU: 724273345
Availability: InStock
Rating: 4.3 (142 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PCM-L10S10-317
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Red
Size:	L93W76.5T9mm .
Delivery Date:	10days
Warranty:	12months
Metal Coating:	Silver
Mode Of Production:	SMT
Customized:	Non-Customized
Condition:	New

Product Description

Lithium battery/LiFePO4 battery PCM/BMS 10S for 32V E-bike Li-ion Battery Pack

PCM-L10S10-317 BMS/PCM for 10S 32V LIFEPO4 battery pack Maximal continuous charging and discharging current: 10A

No.	Test item		Criterion
1	Voltage	Charging voltage	DC:36V 3.6V/Cell
1	Voltage	Balance voltage for single cell	Li-ion: 4.20 V±0.025V
2	Current	Balance current for single cell	72±10mA
		Current consumption for single cell	≤20μA
		Maximal continuous charging and discharging current	Charging :10A,discharging:10A
3	Over-charge Protection	Over charge detection voltage	3.90±0.025V
		Over charge detection delay time	0.96S_1.4S
		Over charge release voltage	3.80±0.05V
4	Over-discharge Protection	Over discharge detection voltage	2.00±0.05V
		Over discharge detection delay time	115mS_173mS
		Over discharge release voltage	2.3±0.05V
5	Over-Current Protection	Over current detection voltage	0.62V
		Over current detection current	45±10A
		Detection delay time	7.2ms_11ms
		Release condition	Cut load
6	Short Protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(B- to P-)	≤20mΩ
8	Temperature	Operating temperature range	-40~+85°C
8	Temperature	Storage temperature range	-40~+125°C
9	Size		L93W76.5T9mm
