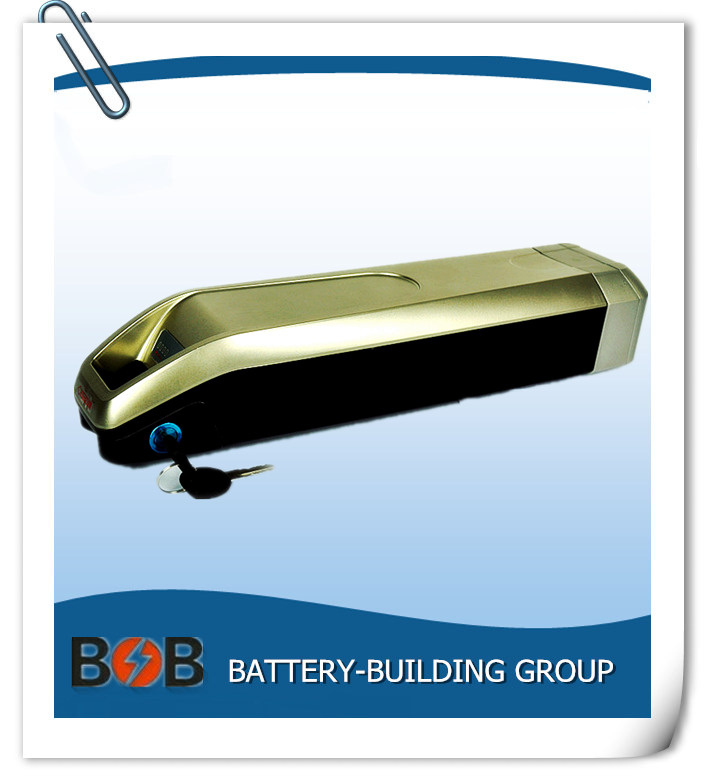

10s4p 36V 11.6ah Lithium Battery Pack

Prod Model:	BBG-HL-3611
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	E-Bike, E-Scooter
Color:	White, Black
Material:	Li-ion
Case Material:	Plastic
Structure:	Inr18650-29e 2900mAh 10s5p
Charger:	2.5A Aluminum Case Charger
MOQ:	5PCS
Lead Time:	7 Working Days
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Usage:	E-Bike, Escooter
Standard Voltage:	36V
Electrolyte:	Li-ion

Product Description

10S4P 36V 11.6Ah Lithium Battery Pack

Specification:
1. Nominal voltage: 36Volts.
2. Rated capacity: 11.6Ah.
3. Lifecycle: 800Cycles.
4. Dimension: 80mm X 96mm X 395mm.
5. Operating temperature: - 20 °C to 60 °C
6. Charge temperature: 0 °C to 45 °C
7. Storage temperature: -20 °C to 45 °C
8. Operating humidity: 5% to 90%

BMS Specification:
1. Operating current: 15A
2. Peak current: 30A
3. Charge current: 2.5A
4. Over-voltage protection: 3.8 V/cell
5. Under-voltage protection: 2.8 V/cell
6. Over-temperature protection: 60°C

Feature:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly
9. Lighter weight smaller size

Shipping:
1. We will ship the products within 15 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsiblility of the shipping service.

Payment:
1. We accept T/T, PAYPAL, Western Union, Cash and so on.
2. If you prefer other payment terms, please contact us.

Notes:
1. If shelve a long time suggested that the battery voltage 25.2-29.2V, need for regular recharging (even if not use), must charge and discharge for three months one time;
2. Do not expose the battery to extreme heat or flame.
3. Do not short circuit, over-charge or over-discharge the battery;
4. Do not disassemble or modify the battery.
5. Do not handle or store with metallic like necklaces, coins or hairpins, etc.
6. Do not reverse the polarity of the battery for any reason.
7. Do not immerse the battery in water or sea water, or get it wet.
8. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
