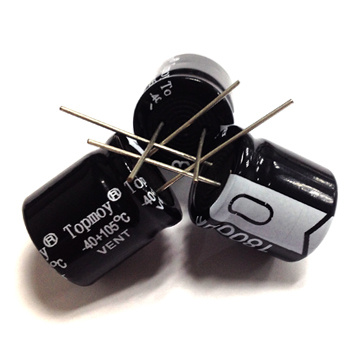

10UF 400V Aluminum Electrolytic Capacitor

Name: 10UF 400V Aluminum Electrolytic Capacitor
Brand: all-electronics-online.com
SKU: 737199245
Availability: InStock
Rating: 4.4 (30 reviews)

Price:	US $ 0.0059kpcs
Trade Terms:	FOB,EXW
Min Order:	30kpcs
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TMCE02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Aluminum Electrolytic Capacitor
Application:	General Purpose
Package Type:	Through Hole

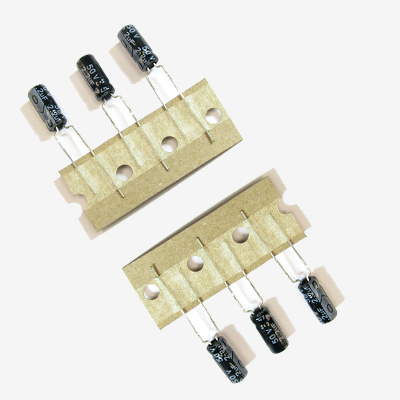

Product Description

Aluminum electrolytic capacitor KS series

85ºC 2000 hours standard product , for general purposes.
rohs compliant

Specifications

Items	characteristics
Capacitance tolerance	±20%(120Hz,20ºC)
Operating temperature range	-40 ~ 85ºC				-40 ~ 85ºC				-25 ~ 85ºC
Rated voltage range	6.3 ~ 100V				160~250V				350~450V
Leakage current	W V≤ 100V I≤0.01CV or 3uA (after 2 minutes application of DC working voltage,at 20ºC)
	W V > 100v I≤0.03CV + 20(uA) (after 3 minutes application of DC working voltage,at 20ºC)
Dissipation factor(tgδ)	Measurement frequency :120Hz. Temperaute : 20ºC
	Rated voltage(V)	6.3	10	16	25	35	50	63		100	160-250	350~450
	Tanδ(max)	0.24	0.20	0.16	0.15	0.12	0.10	0.09		0.08	0.20	0.25
	When nominal capacitance exceeds 1000uF, add 0.02 to the value above for each 1000uF increase
Low temperature stability Impedance ratio(max)	Measurement frequency :120Hz.
	Rated voltage(V)	6.3	10	16	25	35	50-100		160-250		350-400	450
	Z(-25ºC)/ Z(20ºC)	5	4	3	2	2	2		3		6	8
	Z(-40ºC)/ Z(20ºC)	12	10	8	6	4	3		4		/	/
Load life	2000 hours ,with application of working voltage at 85ºC.
	Capacitance change				Within ±20% of initial value
	tanδ				200% or less of initial specified value
	Leakage current				initial specified value or less
Shelf life	1000 hours , no voltage applied , at 85ºC
	After test :Ur to be applied for 30 minutes ,24 to 48 hours before measurement
	Capacitance change				Within ±20% of initial value
	tanδ				200% or less of initial specified value
	Leakage current				initial specified value or less
standards	JIS C5101-4-1 and JIS C5101-2

permissible ripple current

Temperature coefficient

Temperature (ºC)	40	60	85
coefficient	1.30	1.25	1.00

Requency coefficient

WV(V)	Capacitance(uF)	Frequency(Hz)
WV(V)	Capacitance(uF)	50	120	1K	≥10K
≤100	<100	0.75	1.0	1.57	2.0
	100~470	0.80	1.0	1.34	1.5
	> 470	0.85	1.0	1.1	1.15
≥160	0.1~220	0.80	1.0	1.4	1.6
≥160	330~1000	0.90	1.0	1.13	1.15

dimensions (mm)

ΦD	5	6.3	8	10	13	16	18	22	25
P	2	2.5	3.5	5	5	7.5	7.5	10	12.5
Φd	0.5	0.5	0.5	0.6	0.6	0.8	0.8	0.8	1.0

α	(L<16) 1.0
	(L≥16) 2.0

Standard ratings

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
6.3	22	5*11	0.24	65
	33	5*11	0.24	80
	47	5*11	0.24	95
	100	5*11	0.24	139
	220	6.3*11	0.24	240
	330	6.3*11	0.24	300
	470	8*12	0.24	380
	1000	10*13	0.24	580
	2200	10*16	0.24	950
	3300	10*20	0.24	1250
	4700	13*21	0.24	1500
	6800	13*25	0.24	1900
	10000	16*26	0.24	2050
	15000	16*36	0.24	2680
	22000	18*40	0.24	3220
	33000	22*50	0.24	3900

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
10	22	5*11	0.20	65
	33	5*11	0.20	80
	47	5*11	0.20	95
	100	5*11	0.20	180
	220	6.3*11	0.20	250
	330	6.3*11	0.20	330
	470	8*12	0.20	400
	1000	10*13	0.20	630
	2200	10*20	0.20	1100
	3300	13*21	0.20	1400
	4700	13*25	0.20	1800
	6800	16*26	0.20	2050
	10000	16*36	0.20	2500
	15000	18*35	0.20	3120
	22000	22*40	0.20	3710
	33000	22*50	0.20	4500

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
16	10	5*11	0.16	50
	22	5*11	0.16	75
	33	5*11	0.16	90
	47	5*11	0.16	120
	100	6.3*11	0.16	185
	220	6.3*11	0.16	300
	330	8*12	0.16	360
	470	8*12	0.16	470
	1000	10*16	0.16	790
	2200	13*21	0.16	1350
	3300	13*25	0.16	1700
	4700	16*26	0.16	2000
	6800	16*32	0.16	2300
	10000	18*35	0.16	2880
	15000	22*40	0.16	3850
	22000	22*50	0.16	4410
	33000	25*50	0.16	4800

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
25	4.7	5*11	0.15	35
	10	5*11	0.15	55
	22	5*11	0.15	80
	33	5*11	0.15	95
	47	5*11	0.15	130
	100	6.3*11	0.15	190
	220	8*12	0.15	320
	330	8*14	0.15	420
	470	10*16	0.15	540
	1000	10*20	0.15	950
	2200	13*25	0.15	1550
	3300	16*26	0.15	1750
	4700	16*32	0.15	2160
	6800	18*35	0.15	2650
	10000	22*40	0.15	3620
	15000	22*50	0.15	4200
	22000	25*50	0.15	4500

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
35	4.7	5*11	0.12	35
	10	5*11	0.12	60
	22	5*11	0.12	95
	33	5*11	0.12	115
	47	6.3*11	0.12	140
	100	8*12	0.12	230
	220	10*13	0.12	370
	330	10*16	0.12	490
	470	10*16	0.12	640
	1000	13*21	0.12	1100
	2200	16*26	0.12	1800
	3300	16*32	0.12	2220
	4700	18*35	0.12	2570
	6800	22*40	0.12	3210
	10000	22*50	0.12	3900
	15000	25*50	0.12	4300

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
50	0.1	5*11	0.10	10
	0.22	5*11	0.10	10
	0.33	5*11	0.10	10
	0.47	5*11	0.10	10
	1.0	5*11	0.10	15
	2.2	5*11	0.10	28
	3.3	5*11	0.10	35
	4.7	5*11	0.10	40
	10	5*11	0.10	65
	22	5*11	0.10	100
	33	6.3*11	0.10	125
	47	6.3*11	0.10	150
	100	8*12	0.10	250
	220	10*16	0.10	440
	330	10*20	0.10	580
	470	13*21	0.10	760
	1000	13*25	0.10	1350
	2200	16*36	0.10	2100
	3300	18*35	0.10	2510
	4700	22*40	0.10	3000
	6800	22*50	0.10	3500
	10000	22*50	0.10	4000

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
63	10	5*11	0.10	10
	22	5*11	0.10	100
	33	6.3*11	0.10	125
	47	8*12	0.10	150
	100	8*14	0.10	250
	220	10*16	0.10	440
	330	10*20	0.10	580
	470	13*21	0.10	760
	1000	16*26	0.10	1350
	2200	18*35	0.10	2100
	3300	22*40	0.10	2510
	4700	22*50	0.10	3000
	6800	25*50	0.10	4000

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
100	0.1	5*11	0.08	2.1
	0.22	5*11	0.08	4.7
	0.33	5*11	0.08	7
	0.47	5*11	0.08	8
	1.0	5*11	0.08	14
	2.2	5*11	0.08	24
	3.3	5*11	0.08	33
	4.7	5*11	0.08	42
	10	6.3*11	0.08	74
	22	8*12	0.08	125
	33	10*13	0.08	168
	47	10*16	0.08	220
	100	10*20	0.08	380
	220	13*25	0.08	600
	330	16*26	0.08	750
	470	16*32	0.08	920
	1000	18*40	0.08	1300
	2200	25*50	0.08	2010

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
160	0.47	5*11	0.20	13
	1.0	5*11	0.20	17
	2.2	6.3*11	0.20	25
	3.3	8*12	0.20	35
	4.7	8*12	0.20	45
	10	10*13	0.20	80
	22	10*16	0.20	130
	33	10*20	0.20	180
	47	13*21	0.20	230
	100	16*26	0.20	385
	220	16*36	0.20	640
	330	18*40	0.20	800
	470	22*40	0.20	1000
	1000	22*50	0.20	1380

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
200	0.47	5*11	0.20	14
	1.0	5*11	0.20	18
	2.2	6.3*11	0.20	27
	3.3	8*12	0.20	40
	4.7	8*12	0.20	50
	10	10*16	0.20	85
	22	10*20	0.20	135
	33	13*21	0.20	190
	47	13*21	0.20	235
	100	16*26	0.20	400
	220	22*30	0.20	660
	330	22*35	0.20	830
	470	22*50	0.20	1100

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
250	0.47	5*11	0.20	15
	1.0	6.3*11	0.20	18
	2.2	8*12	0.20	28
	3.3	8*12	0.20	45
	4.7	10*13	0.20	54
	10	10*16	0.20	90
	22	13*21	0.20	160
	33	13*21	0.20	195
	47	13*21	0.20	250
	100	16*32	0.20	450
	220	22*30	0.20	810
	330	22*35	0.20	910
	470	25*50	0.20	1230

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
350	0.47	5*11	0.25	7
	1.0	8*12	0.25	19
	2.2	8*12	0.25	26
	3.3	10*13	0.25	36
	4.7	10*16	0.25	40
	10	10*20	0.25	65
	22	13*21	0.25	120
	33	16*26	0.25	150
	47	16*36	0.25	220
	100	18*40	0.25	400
	220	22*50	0.25	800

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
400	0.47	6.3*11	0.25	7
	1.0	8*12	0.25	19
	2.2	10*13	0.25	28
	3.3	10*13	0.25	35
	4.7	10*16	0.25	45
	10	13*21	0.25	70
	22	16*26	0.25	130
	33	16*32	0.25	160
	47	16*36	0.25	225
	100	22*35	0.25	410
	220	25*50	0.25	800

WV (VDC)	Capacitance (uF)	Case size ΦDxL(mm)	tanδ (max)	RC (Arms/85ºC,120Hz)
450	0.47	6.3*11	0.25	7
	1.0	8*12	0.25	21
	2.2	10*13	0.25	30
	3.3	10*16	0.25	40
	4.7	10*20	0.25	50
	10	13*21	0.25	75
	22	16*26	0.25	140
	33	16*36	0.25	170
	47	18*40	0.25	230
	100	22*40	0.25	420
