0-10V Electric Valve Actuator (CK52)

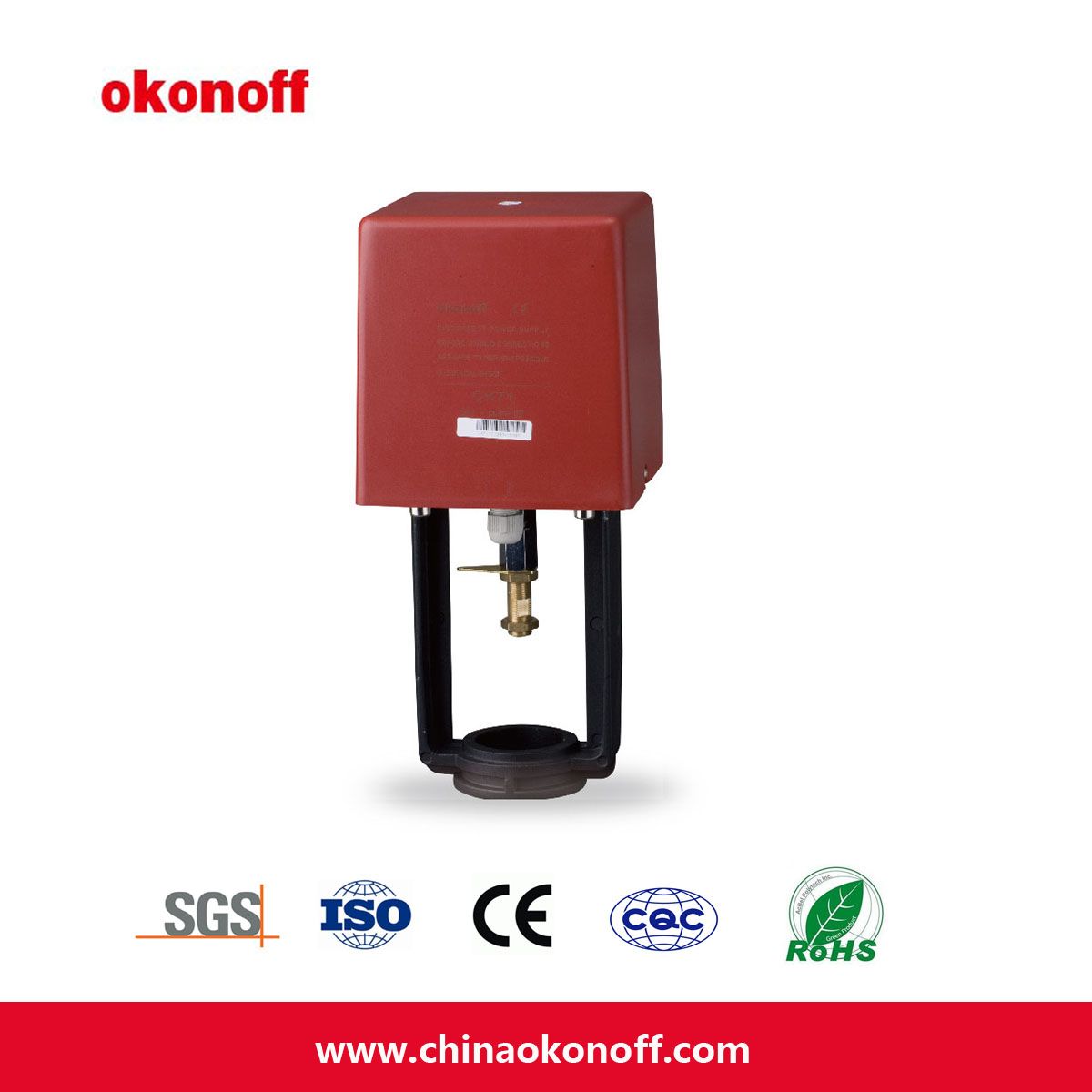

0-10V Electric Valve Actuator (CK52)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: CK52
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Task: Adjust
Structure: Combination
Signal: Continuous
Mathematical Model: Linear
Electric Valve Actuator: Electric Valve Actuator
Electric Actuator: Electric Actuator
Valve Actuator: Valve Actuator

Product Description

0-10V Electric Valve Actuator (CK52)
1. Product Summary:
CK50/CK70/CK80/CK90 series of valve driver are direct journey drivers. They are applied in adjusting and controlling water flux of heating, aeration or air-conditioning system. It is used with DN65-DN200 adjusting valves of CF series or DN65-DN150 adjusting valves of CV series together.
0-10V Electric Valve Actuator (CK52)

2. Characteristic:
AC, bidirectional&synchronous motors, auto limit at terminal. Low noise, with strong output driving force (details pls refer to technique parameter in manual). Direct journey, suit to the modulating valve whose journey is less than 45mm. Added manual controlling equipment. Driving Force: CK50~1800N CK70~2800N CK80~3500N CK90~3800N Convenient to be installed. Valve position with high controlling precision, reaction with quick speed CK52/CK72/CK82/CK92 with digital CPU circuit, LED display, can be programmable at scene. (Details pls refer to the point 8, 9 in the manual).
ModelCK51CK71CK81CK91CK52CK72CK82CK92
Working Voltage24VAC/50HZ24VAC/50HZ
Power Consumption12W11W12W11W14W13W14W13W
Control Signal24VAC/50HZ0-10V or 4-20mA
Feedback SignalN/AN/AN/AN/A0-10V(0.5mA)
Driving Force1800N2800N3500N4000N1800N2800N3500N4000N
Whole Journey Time140S200S200S300S140S200S200S300S
Environment ConditionWorking Temperature: -5~+50º CWorking Temperature: -5~+50º C
Storage Temperature: -20~+65º CStorage Temperature: -20~+65º C
Humidity: < 92% (Anti-Dewfall)Humidity: < 92% (Anti-Dewfall)
Grade of ProtectionIP54IP54
MaterialGearwheel: Brass/Stainless SteelGearwheel: Brass/Stainless Steel
Support: AluminumSupport: Aluminum
Outer Cover: ABSOuter Cover: ABS
Okonoff Company was founded in 2002, whose headquarter of Asia-Pacific areas is in Shanghai, China. It is an enterprise with new and high technology and integrates with design, manufacture and distribution of the HVAC auto-controlling products\heating (floor heating) auto-controlling products, building (accounting) auto-controlling systems, intelligent home systems and so on.

Okonoff has about 200 workers, plant area reach 26680 M2. Having 30 research staff, it is 15% of all staff. Investment of R&D is about 600 thousands RMB, it is about 20% of total investment. In many cities, okonoff set up offices, like Beijing, Hang Zhou, Guangzhou and so on.

Okonoff Company persists in enhancing the capacity of scientific and technological innovation as basis, humanistic knowledge-based as their duty and try best to make the living environments be comfortable and economic. Besides the present R & D team.

Okonoff Company set up okonoff Auto Control. INC in the United States by cooperating with some famous university and research institutions, the main purpose is to study and master the advanced auto-controlling technology and latest information about products. Now, the product developmental system has been in sync with international level and successfully developed six major productions ranges, more than 1, 000 varieties of products.

Okonoff Company treats the quality as the main principle of survival and development, strictly implements the IS9001 quality management system, increases the investment of advanced manufacturing and testing facilities, tries hard to structure accurate production system. Okonoff Company has been authorized the Quality-Trust Enterprise, one of ten Famous Brands in the industry, Shanghai High-Tech Enterprise, Scientific and Technological Demonstration Enterprise and so on. Most of our products have got CE, UL, TUV, RoHS certifications, test licenses, test reports, and over fifty products got patent protections, three products won High-tech Transformation Award, also we established the fund for the projects support and two products got "Software Copyright Registration" certification.

Okonoff Company always treats customers as the important core, we believe quality + service = customer satisfaction, and always remembers that "Serve every customers sincerely" is our first guideline, improves the marketing system gradually and makes the sale network cover the major cities. Now, our products have been widely applied in some large and important projects in China. The marketing aim of Okonoff Company is to achieve the simultaneous growth both on the domestic and international markets. Through the sustained investments, we gain good effects in the overseas markets; Products have been exported to Europe, the United States, Southeast Asia, Africa and so on.

Facing the global economy, we persist in the spirit of "Hard Work, Insist Principles, Keep Innovation, and Pursue Excellence". Now, Okonoff Company is carrying out the development strategy of "Specialization, Science and Technicalization, Internationalization ", try our best to enhance our company from the End-controlling device to the whole system integration.

We expect that in the HVAC area in the world, there is famous brand comes from China, her name is "okonoff
