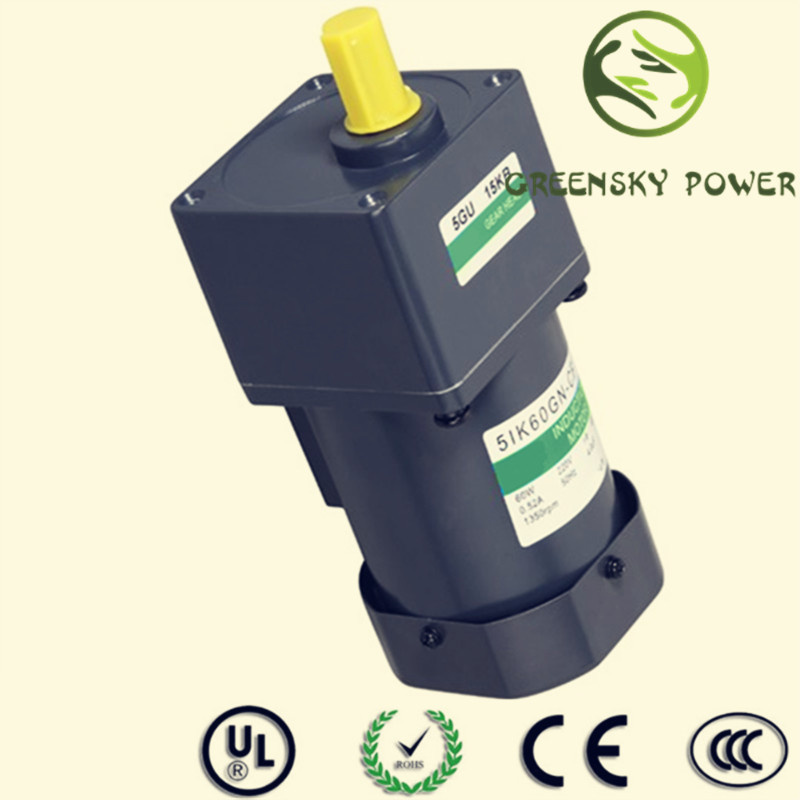

10W 15W 20W 25W AC Induction Motor with Different Size

Name: 10W 15W 20W 25W AC Induction Motor with Different Size
Brand: all-electronics-online.com
SKU: 743456445
Availability: InStock
Rating: 4.5 (67 reviews)

Price:	US $ 41.3-49.7/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	4IK25GN-A (4IK25A-A)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	10/15/20/25/40/60/90/120/140/180W
Size:	60/70/80/90/100mm
All Technical Data:	Can Be Customized
Function:	Control
Number Of Stator:	Single-Phase
Brand:	GS
Certification:	UL, CE, RoHS

Product Description

25W 80mm ac induction motor

Introduction
Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specifications
1. Dimensions of device: 80mm
2. Rated Power: 25W
3. Voltage: 110/120/220/230V
4. CCC, CE, UL, CU
5. Can be customized

OTHER MODEL:

Size: 60 / 70 / 80 / 90 / 100mm
Power: 10 / 15 / 20 / 25 / 40 / 60 / 90 / 120 / 140 / 180W
Voltage: 1ph100 / 1ph110 / 1ph120 / 1ph220 / 1ph230 / 3ph220 (50/60Hz)
Gear Ratio: 3 / 3.6 / 5 / 6 / 7.5 / 9 / 12.5 / 15 / 18 / 25 / 30 / 36 / 50 / 60 / 75 / 90 / 100 / 120 / 140 / 180 / 200

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire Type	Terminal Box Type
4IK25GN-A (4IK25A-A)	4IK25GN-AT (4IK25A-A)	25	1ph100	50	0.45	120	200	1250	8.0
				60	0.50		165	1550
4IK25GN-E (4IK25A-E)	4IK25GN-ET (4IK25A-ET)	25	1ph110	60	0.45	120	165	1550	7.0
			1ph120		0.50
4IK25GN-C (4IK25A-C)	4IK25GN-CT (4IK25A-CT)	25	1ph220	50	0.25	120	200	1250	1.8
			1ph230		0.23
4IK25GN-H (4IK25A-H)	4IK25GN-HT (4IK25A-HT)	25	1ph220	60	0.23	120	165	1550
			1ph230
4IK25GN-S (4IK25A-S)	4IK25GN-ST (4IK25A-ST)	25	3ph220	50	0.185	350	200	1250	_
				60	0.170	250	165	1550
