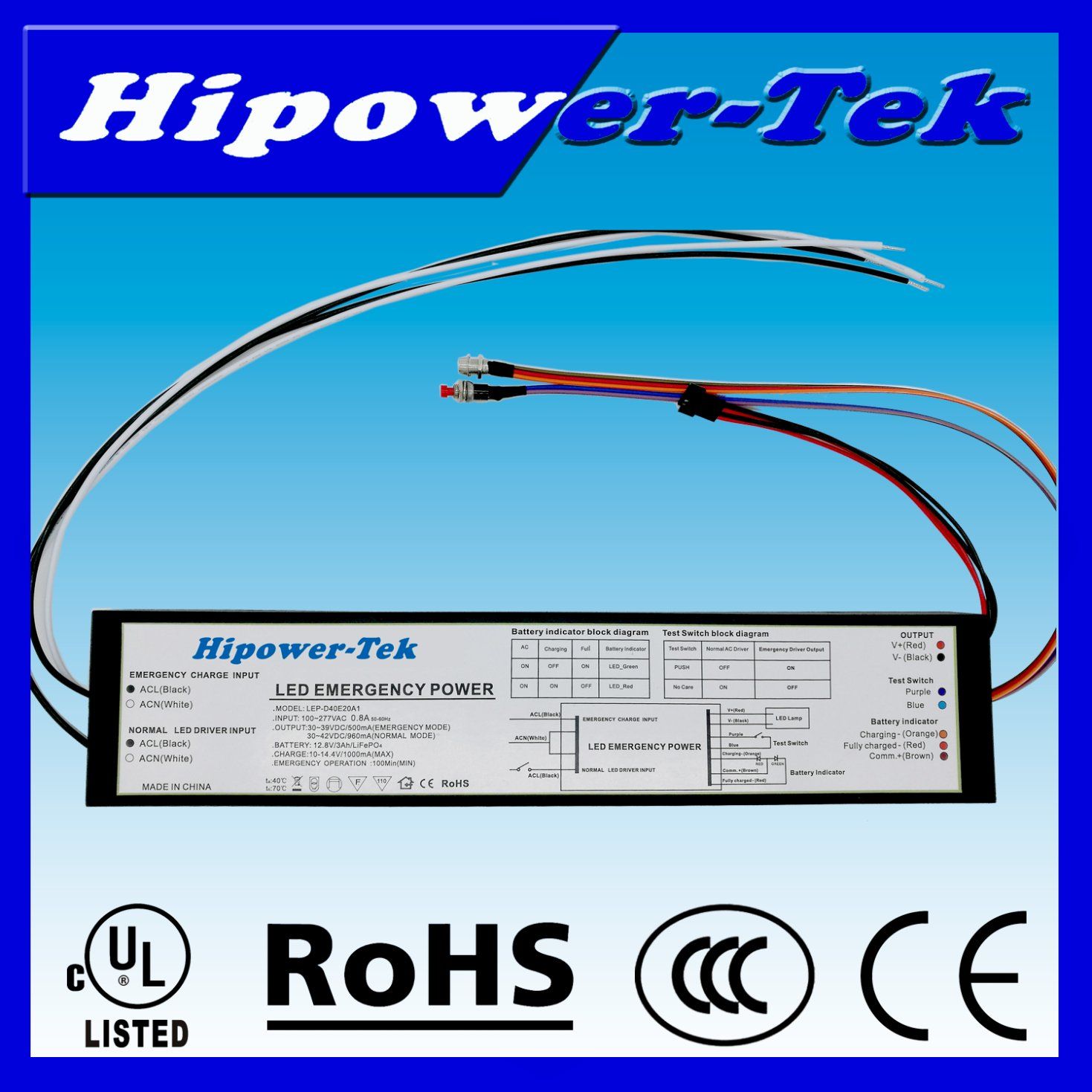

10W-60W Output LED Lighting Emergency Driver

Name: 10W-60W Output LED Lighting Emergency Driver
Brand: all-electronics-online.com
SKU: 802116315
Availability: InStock
Rating: 4.3 (38 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LEP Series
Bulb Type:	LED
Battery Type:	LiFePO4
Material:	Aluminum
Charging Type:	Rechargeable
Emergency Power:	10W-60W
Output Type:	Single
Starting Mode:	Separate-excited Switching Power Supply
Certification:	Ce, RoHS, UL, ISO
Warranty:	3 Years
Output Power:	10W-60W
Input Voltage:	120V-277V
Connection Mode:	None
Brand:	Hipower-Tek

Product Description

Features:

Emergency power: 10-100%
Up to 2 hours emergency lighting time
DC-DC conversion Efficiency: up to 92%
Over 1500 charge-discharge times
High-efficiency emergency respond speed, less than 800ms.
Led driver, control module and battery pack in one integrated designed case
Protections: Short circuit/ Over current/ Over voltage/ Over temperature
5 years warranty

Input Characteristic	Normal Power Supply	Emergency Power Supply
		LiFePO4		Li(NiCoMn)O2
Input Voltage	AC 120-277VAC 50/60 Hz	12.8 VDC/3.3Ah		14.8VDC/2.5Ah
Input Current [mA]	800
Power Factor ( PF)	0.96
Line Current Harmonics (THD) [%]	8 (277VAC)
Tol. [%]	±1
R&N [mV]	100
In Rush Current [A]	Cold start, 30A at 230V
Battery Charging Time [mA] (from empty electricity state)		120		100
Battery Charging Current [mA]		1000
Setup time	500ms at full load and 230VAC	800ms
Withstand voltage	I/P-O/P:3.75kVAC
Output Characteristic
Output Current [mA]	960	500
Output Voltage [V]	25-42	30-39
Output Power Rating [W]	40	20
Minimum Illumination Time[min]		100		90
Battery Protection		YES
DC-DC Efficiency		92%
AC-DC Efficiency	89.5%
Others
Operating Temp. [°C]	-20~60°C, 65+20% RH
Safety Standards	Design refer to UL8750, EN60335-1
EMC Standards	Refer to EN55015, EN61000-3-25 class C, EN61000-4-2,3,4,5,6,8,11, EN61547, FCC Part 15A Non-Consumer
Weight [g]			1400		1200
Size	405mm77mm38mm
Product Life	50000 Hours (1500 charge-discharge times)

Note: The emergency power supply circuit works only when the battery pack has charged for 30mins (from empty electricity state)

Hipower-tek is a leading edge LED manufacturing company, specializing in the development and production of high end commercial and industrial lighting products. Since the establishment in 2012, our company's performance has improved rapidly year by year. And also, we have become a recognized technologic-leading company in LED industry.

Hipower-Tek have self-developed various specifications and wide input voltage range LED drivers. Our products possess features such as high efficiency, superior reliability and long durability. Our professional R&D team guarantees the advancement and diversity of our technology. We have expanded our products to PLC dimming control, emergency power supply, LED retrofit kit etc.

Hipower-Tek always holds the concept that constant innovation, satisfying service and good credibility mark the excellence of a company, so we intend to provide you the best solution, customized service and quick respond.

The talented crew, advanced technology and scientific management contributes to Hipower-Tek 's rapid development, along with our pragmatic and aggressive entrepreneurship comprise the core competence of our company.

We may not have a glory history, . But we believe that with our ideas and incredible products we will be making history in the near future
