Zhejiang Yixiong M&E Manufacturing Co., Ltd. >> 10W Condenser Fan Motor with Copper Wire

10W Condenser Fan Motor with Copper Wire

10W Condenser Fan Motor with Copper Wire
Price: US $ 2.6-6/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T
Prod Model: YJ8219
Motor Type: Shaded Pole Motor
Supply Voltage: 220-240V 50Hz
Bearing Type: Sleeve Bearing
Wire Material: Copper Wire
Structure: Electromagnetic
Certification: Ce
Brand: Yixiong

Product Description

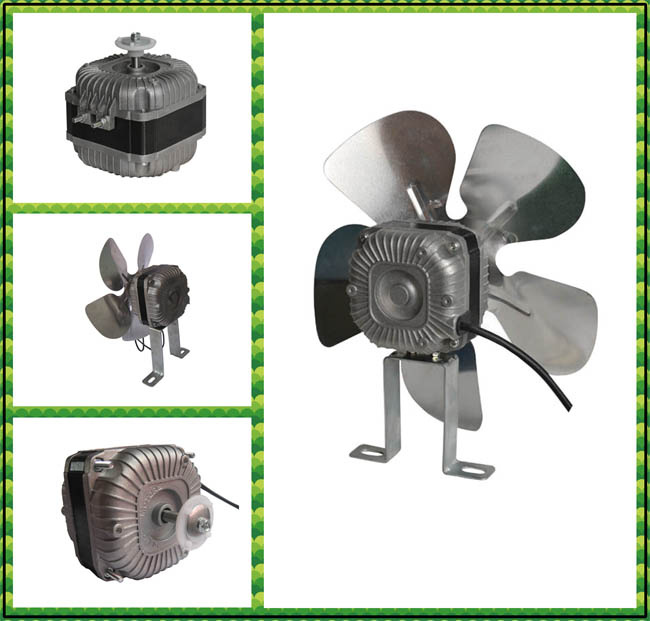

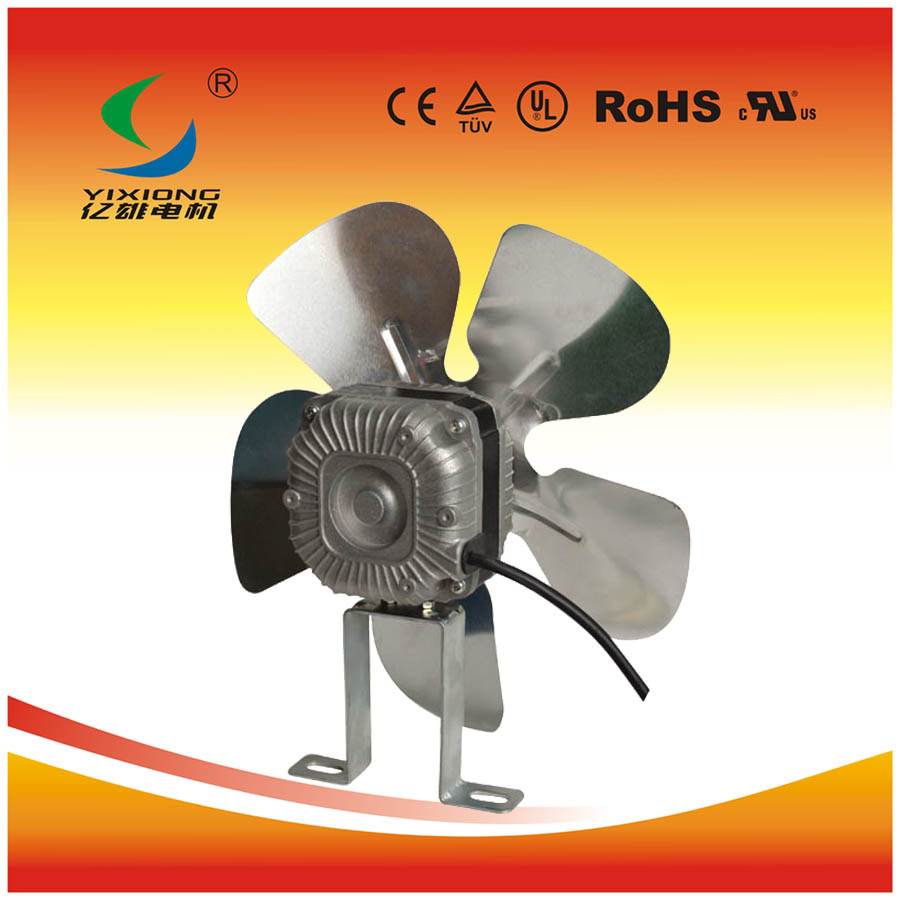

10W Condenser Fan Motor with Copper Wire

Supply voltage: 110-240V AC; 50-60Hz;  110/220V 50-60Hz
Suitable Shaft Dia.:6,7,8 mm,  Shaft length as your request
Stack size: 83 *83 mm,  thickness :13-25 mm;
Bearing : Sleeve bearing
Mounting size: M4 Threading,  disctance is17.9 mm,  or M3 threading.

Rotation from shaft extention : CW or CCW;
Lead wire: model and length are as your request
Bearing style:Sleeve bearing is available;
Insulation Class: E / B  /  F
Internation of Protection : 42
Protection type: Temperature protection
Sound level:≤45 dB(A);
Life:3000 Hours Min;

Application
1. Refrigerator, Ice chest, Condensing Plant, Fanners etc.,
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc
3. It can be designed and produced as your request.
ModelVoltageFrequencyCurrentPowerSpeedClass
YJ82-13110/220 VAC50-60 Hz  0.35 A  36.0 W  1400 RPM E/B/F
YJ82-16110/220 VAC50-60 Hz  0.42 A  42.0 W  1300 RPME/B/F
YJ82-19110/220 VAC50-60 Hz  0.48  A  48.0 W  1550 RPME/B/F
YJ82-25110/220 VAC50-60 Hz  0.56 A  54.0 W  1350 RPME/B/F
YJ82-30110/220 VAC50-60 Hz  0.65 A  65.0 W  1400 RPME/B/F
YJ82-40110/220 VAC50-60 Hz  0.75 A  78.0 W  1300 RPME  /B/F

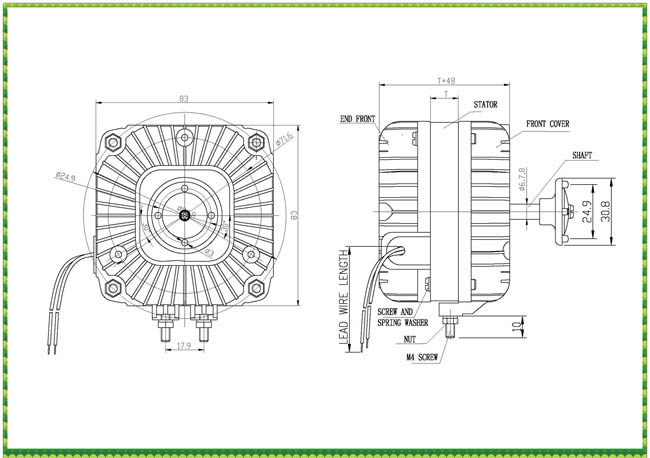

Drawing and Image







Certificate

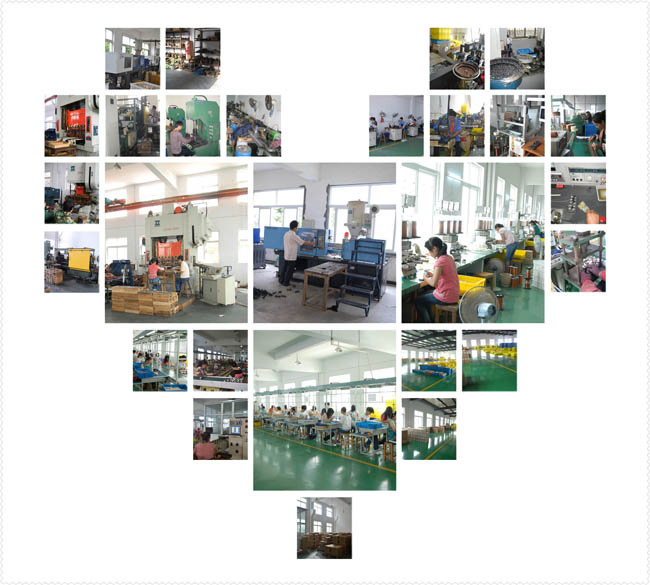

Production




Contact us





Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
