10W Mini AC to DC Switching Power Supply LED Driver CCTV PSU

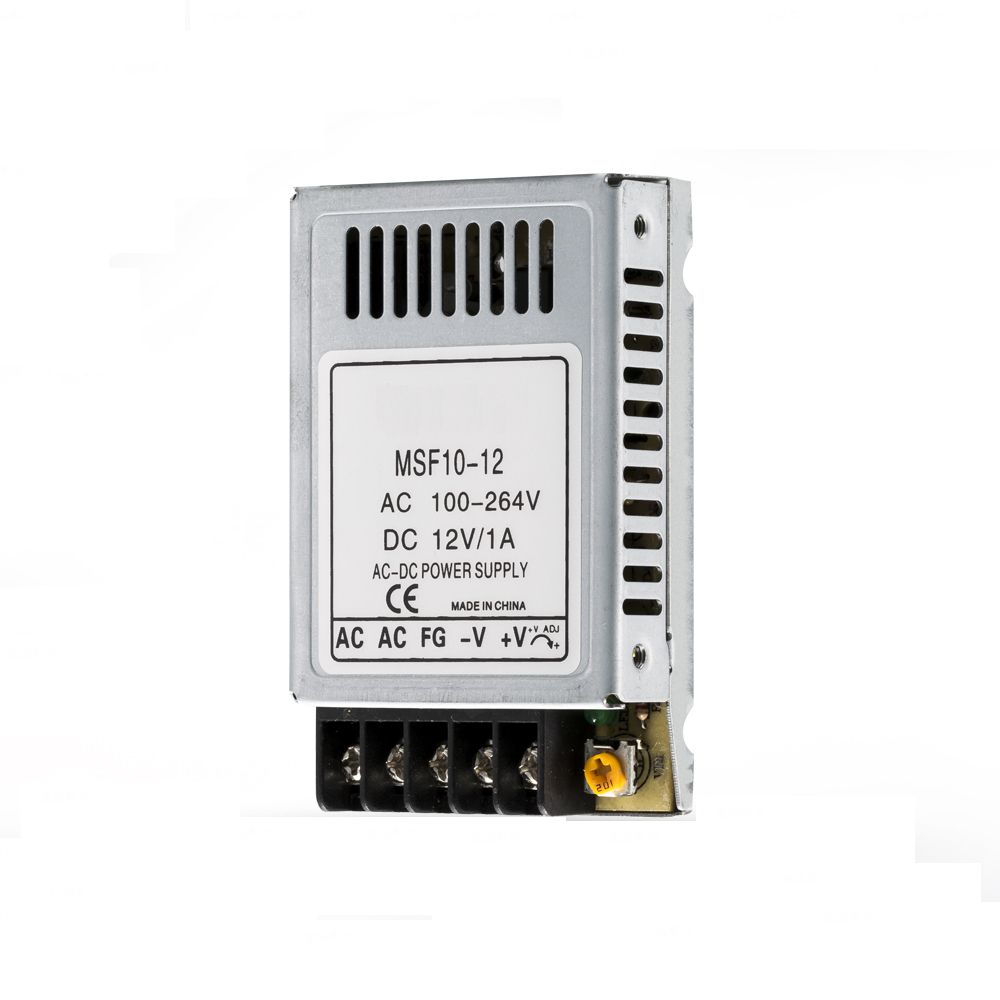

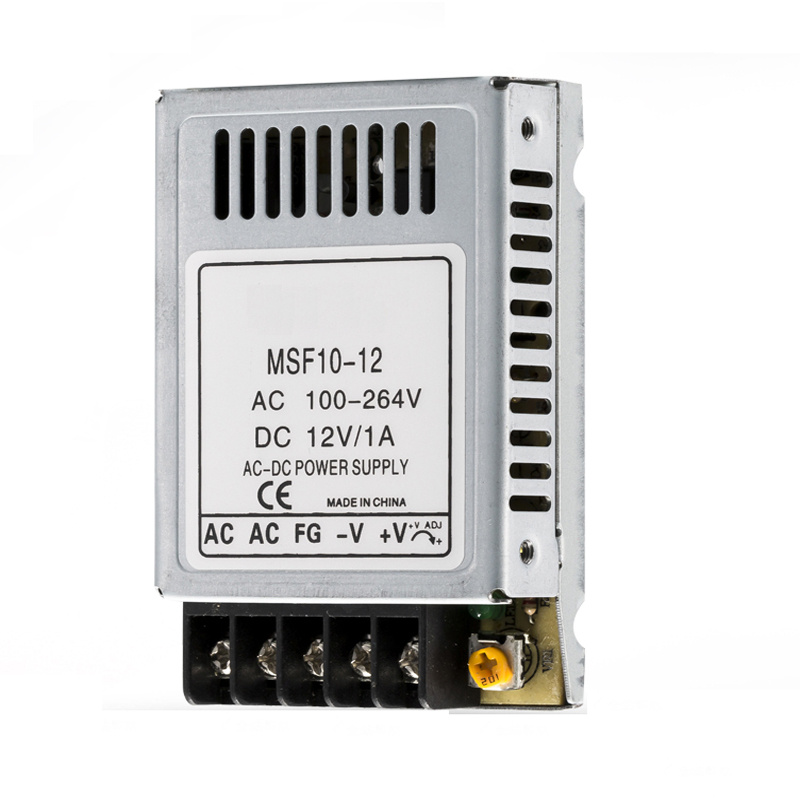

Name: 10W Mini AC to DC Switching Power Supply LED Driver CCTV PSU
Brand: all-electronics-online.com
SKU: 820843435
Availability: InStock
Rating: 4.6 (46 reviews)

Price:	US $ 3.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSF-10W
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	ISO
Power Supplying System:	AC
Brand:	CNC

Product Description

Industrial power supply 10w 24v 12v high-efficiency led light driver

1. China Top 500 Enterprise
2. 26 years rich experience in manufacturing electrical products
3. Sales in over 100 countries

Model		MSF-10-5	MSF-10-12	MSF-10-15	MSF-10-24
output	DC output voltage	5V	12V	15V	24V
	DC Current range	0~2A	0~1A	0~0.8A	0~0.5A
	Wave&noise	50mvp-p	50mvp-p	50mvp-p	50mvp-p
	Inlet wire stability	±0.5%	±0.5%	±0.5%	±0.5%
	Load stability	±1%	±0.5%	±0.5%	±0.5%
	Adjustable range for DC voltage	±10%	±10%	±10%	±10%
	Input Voltage range	85~264VAC,120~370VDC
	Impact current	Cold start current 30A/230VAC
	frequency	47~63HZ
	efficiency	68%	71%	72%	75%
	Overload protection	105%~135% cut off the output,automatic recovery
Setup,rise,hold up time	200ms ,50ms , 20ms/230VAC at full load
environment	Working temperature	-10°C- +50°C
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KV 1minute
safety	Isolated resi stance	I/P-O/P,I/P-FG,O/P-FG:500VDC/100MΩ
others	Dimension	784821mm(LWH)
	weight	0.15kg
	packing	24.517.526.5CM/100PCS/15g

WHY US?
1. We Are Suppler of Three Gorges Project,China National Petroleum,Sinopec Group;
2. China Famous Export Enterprise, Our Products Sale in Over 100 Countries;
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.

CNC Electric Group Co.,Ltd.
Add:CNC High-tech industrial zone, north Baixiang,Wenzhou, Zhejiang province, China.325603
Fax: 0086-577-61891122

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
