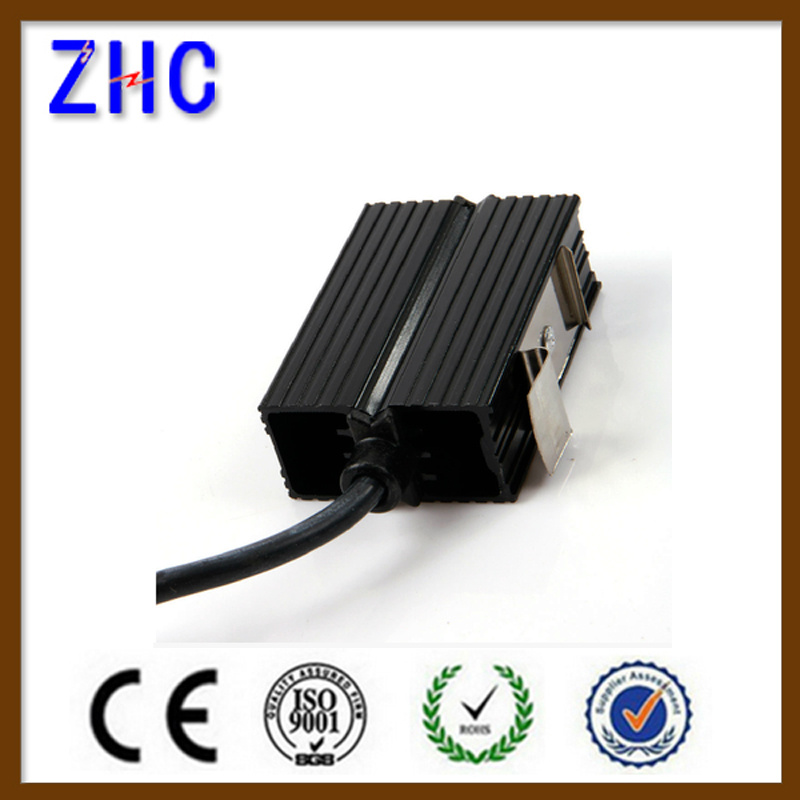

10W to 150W PTC Small Semiconductor Electric Heater
| Price: |
US $ 1-2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
HGK 047 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating Element: |
PTC Resistor, Self Regulating and Temperature Limi |
| Heater Body: |
Extruded Aluminum Profile, Anodised |
| Mounting: |
Clip for 35mm DIN Rail, En 60715 |
| Fitting Position: |
Vertical |
| Operating/Storage Temperature: |
-20 to +70°c(-4 to +158°f) |
| Protection Type: |
IP54/I (Earthed) |
| Accessories: |
Screw Fixing |
| Weight: |
0.2kg |
| Color: |
Black |
| Length: |
50-100mm |
| Installation: |
Portable |
| Ventilation: |
With Ventilation |
Product Description
10w to 150w PTC Small Semiconductor Electric Heater
Description of product The heaters are used in enclosures where condensation is to be prevented or the temperature may not fall below a minimum value. In this way corrosion is avoided and an even temperature is ensured.
Product advantage1. Dynamic heating up
2. Energy saving
3. Wide voltage range
4. Temperature limiting
5. Clip fixing
Technical Data
| Heating element | PTC resistor, self regulating and temperature limiting |
| Heater body | Extruded aluminum profile, anodised |
| Mounting | Clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical |
| Operating/Storage temperature | -20 to +70°C(-4 to +158°F) |
| Protection type | IP54/I (earthed) |
| Accessories | Screw fixing |
| Weight | 0.1kg, 0.2kg |
1) at 20°C (68°F) ambient temperature2) (min. 110V, max 265V) Operating with voltages below 140V AC/DC reduces heating performance by approx, 10%.Art. No. | Operating voltage | Heatingcapacity | Inrush current max. | Lenth | Weight (approx.) | Connecting |
04700.0-00 | 120-240V AC/DC | 10W | 1.0A | 50mm | 0.10kg | 3×0.5mm2×300mm sheather cable(silicone) |
04701.0-00 | 120-240V AC/DC | 20W | 2.5A | 60mm | 0.20kg | 3×0.5mm2×300mm sheather cable(silicone) |
04702.0-00 | 120-240V AC/DC | 30W | 3.0A | 70mm | 0.20kg | 3×0.5mm2×300mm sheather cable(silicone) |
04700.9-00 | 110-120V AC/DC | 10W | 1.0A | 50mm | 0.10kg | 3×AWG 20×300mm sheather cable |
04701.9-00 | 110-120V AC/DC | 20W | 1.5A | 70mm | 0.20kg | 3×AWG 20×300mm sheather cable |
04702.9-00 | 110-120V AC/DC | 30W | 1.5A | 100mm | 0.20kg | 3×AWG 20×300mm sheather cable |
Product show

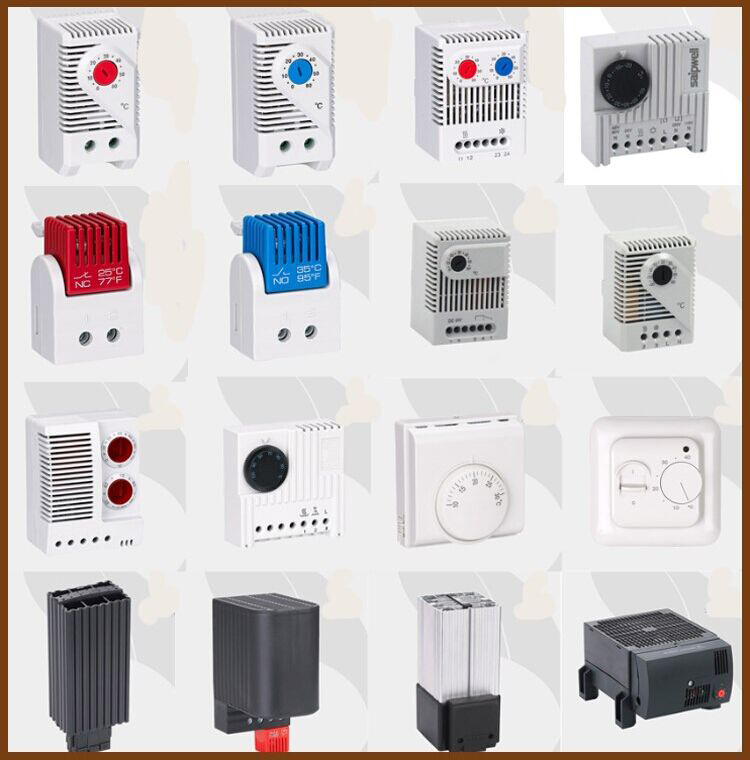

Similar product

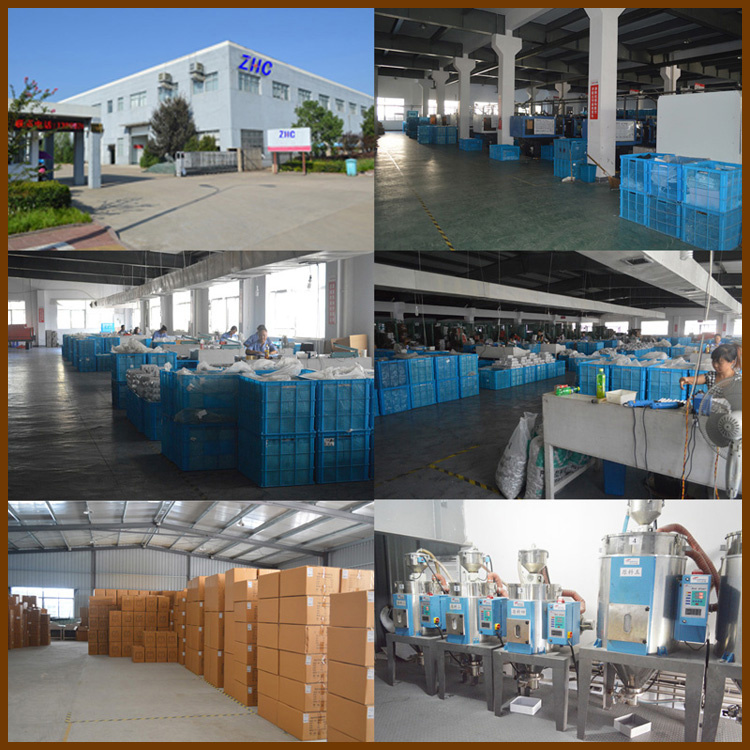

Our company
FAQ:
1. Q:How can I get the samples?
A:If you need some samples to test,please pay for the transportation freight of samples and our samples will be counted on the next order .
We send the samples to you only after receipt of your payment.
2.Q:How much the transportation freight will be for the samples?
A:The freight depends on the weight and packing size and your area.
3.Q:How can I get your Price list?
A:Please send us your email or fax and order information,then I can send you price list.
4.Q:Can we have our logo or company name to be printed on your products or the package?
A:Sure.Your Logo can be puted on our products by sticker.And if you want your logo and company name to be printed on the cartons
for the products,you can send us the artwork by email.
5.Q:How to order?
A:Please send us your purchase order by email or fax or you can ask us to send you a proforma invoice for your order.
About US:
Our company in the R&D, manufacture and sale of low voltage electric applicants, such as industrial plug, aerial fittings, switches, distribution box and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.
1. We already get the certificate of ISO9001, CE, SGS, RoHS
2. We have 10 years of manufacture and 8 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia, Spain, India, Thailand, south American, MID-east market and so on.
How to Order?
1. Please let us know what kind of model.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay the discussed deposit soon.
5. After getting your deposit payment, all goods will be sent to you in by sea or air within one month.
6. OEM/ODM is welcomed...
Shipping:
1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we can declare lower value if needed.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:
1. TT or L/C at sight.
2.30% deposit and 70% against shipping documents.
Warranty:
1. We provide 2 year quality warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.
Based on mutual benefit, our company development business with more than 50 countries, our main market is south amercian, north Africa, Middle East Asian, south east Asian, east Europe.
