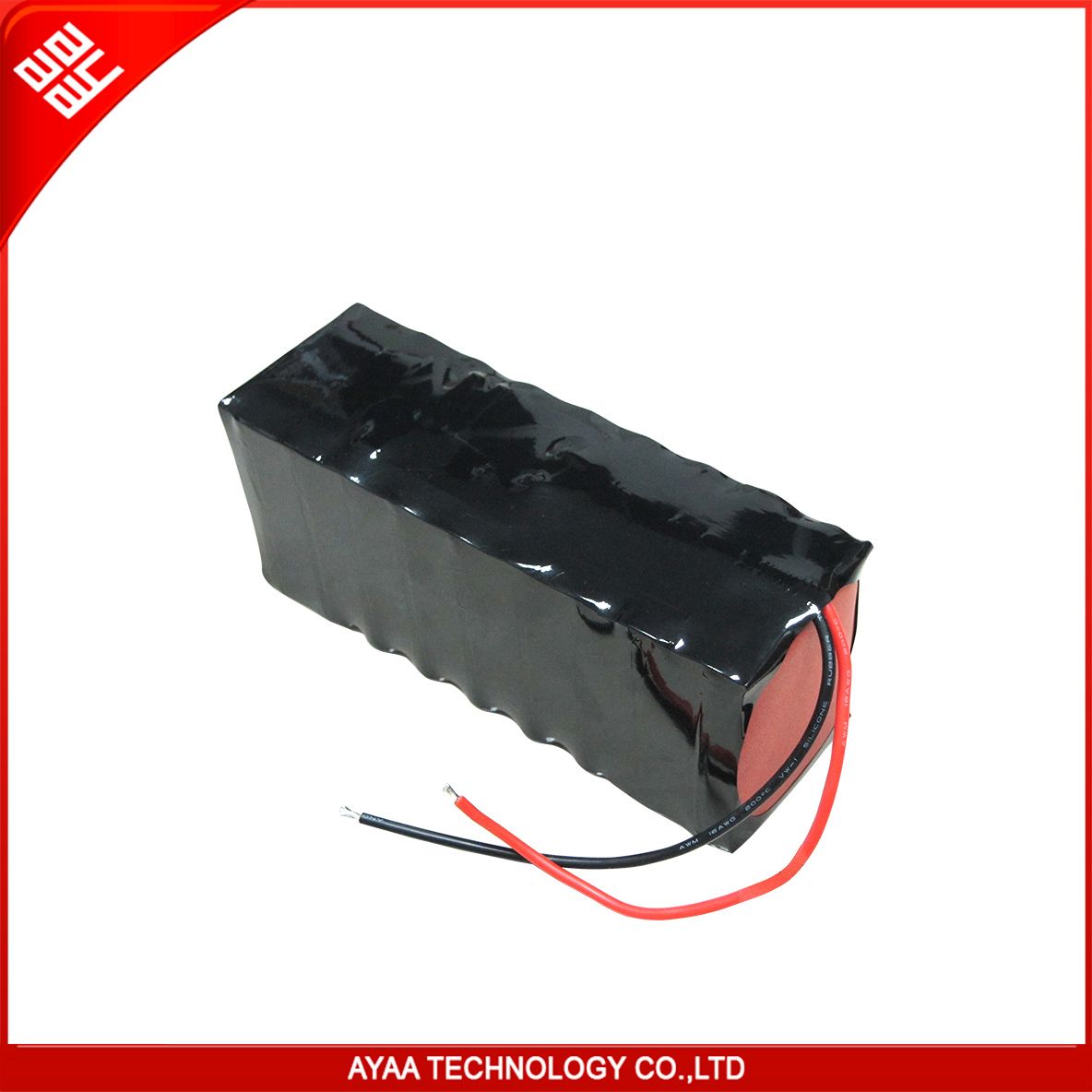

11.1V 19.8ah 3s9p Sprayer Storage Lithium Ion Battery Pack

Name: 11.1V 19.8ah 3s9p Sprayer Storage Lithium Ion Battery Pack
Brand: all-electronics-online.com
SKU: 731032775
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 1.8-2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	AYAA-3S9P-187
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Weight:	1.4kg
Series:	3s
Voltage:	11.1V
Parellel:	9p
Capacity:	19.8ah
Cell:	18650 2200mAh
Input/Output:	Same Port
Consists Of:	Cell, PCM, Wire, PVC. ...Ets
OEM/ODM:	Yes
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Accessories Type:	None
Usage:	Light

Product Description

11.1V19.8ah 3s9p Lithium Ion Battery Pack with ayaa-3s9p-187
AYAA-3S9P-187
Assemble: With safety board PCM-B04S10-187

Max. Dimension(mm): 164*56*72mm
Normal voltage: 3.7v
Typical Capacity: 23.4Ah
Battery cell: 2.2Ah
Single cell size is about SIZE: W18*L65mm Battery pack size is about L164*W56*T72mm

Inspection Item	Remark
Charge current	8A
Discharge current	12A
Charge voltage	12.6V
Overcharge Protection Voltage	4.35V±0.025V	Test the protection voltage of each cell
Over discharge Protection Voltage	2.40V±0.08V	Test the protection voltage of each cell
Short circuit Protection Voltage	Auto Release	after short circuit
Resistance	100mΩ	As the wire for our test is very long.
Over current	18±3A
Continuous working current	12A
