110 Connecting Blocks Cat. 5e 4 Pair

Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Voice
Certification:	ISO
Condition:	New

Product Description

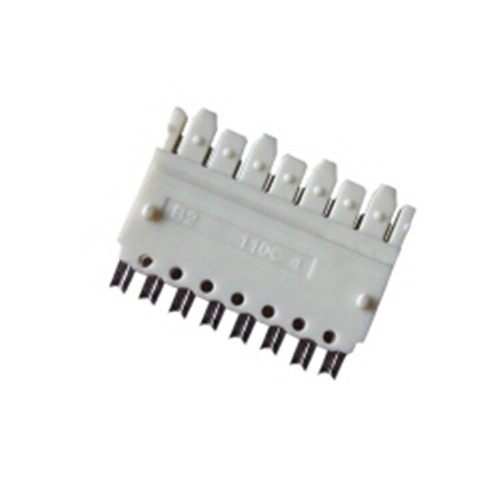

110 Connecting Blocks Cat.5e 4 Pair

Description
110 Connecting Blocks from Cenyarak are terminated to the 110 Wiring Blocks using 110/5 pair terminting tool. Exceeds Category 5e channel performance when used in conjunction with Category 5e systems. Meets ANSI/EIA/TIA-568-A connecting hardware reliability requirements. 110 Connecting Blocks are available in 3 pairs,4 pairs and 5 pairs.

Features
Accepts discrete wire or 110-type patch cord
Exceeds ANSI/TIA-568-C.2 Category 5e standard
Available in 3, 4, or 5-pair connection blocks
Dual IDC terminates UTP cable on 110 base and UTP cable or 110 patch cords for cross-connecting
Highly visible color-coded wiring slots ease wiring
Can be used with single or multiple punchdown tools
Can be utilized with discrete wires or Pan-Punch® Patch Cord Connector
Constructed of UL 94V-0 high impact polycarbonate material

Material specification
polycarbonate UL 94V-0
Contact Material : Phosphor Bronze
Conductor Type: Solid or Stranded
Conductor: Solid or Stranded 26-22 AWG

Standards/Compliance
Meets ANSI/TIA/EIA-568-B.2 Category 6 Requirements
Meets ISO/IEC Generic Cabling Standard 11801:2002 ed.2.0
Meets GENELEC Generic Cabling standard EN50173-1:2002 Electrical Specs according to UL 1863
RoHS Compliant

Company profile
Cenyarak is a high-tech enterprise specialized in manufactureing computer network cables, connectors, fiber optic transmissions and other communication products. Cenyarak has a rich experience in providing services to top tier insistutions in the enterprise, health-care, education and carrier industries.
We have our own independent import and exports rights and we design and produce the products according to customer's requests. The prices of our products are evidently lower than the others which are the same grade on the condition of high quality.
