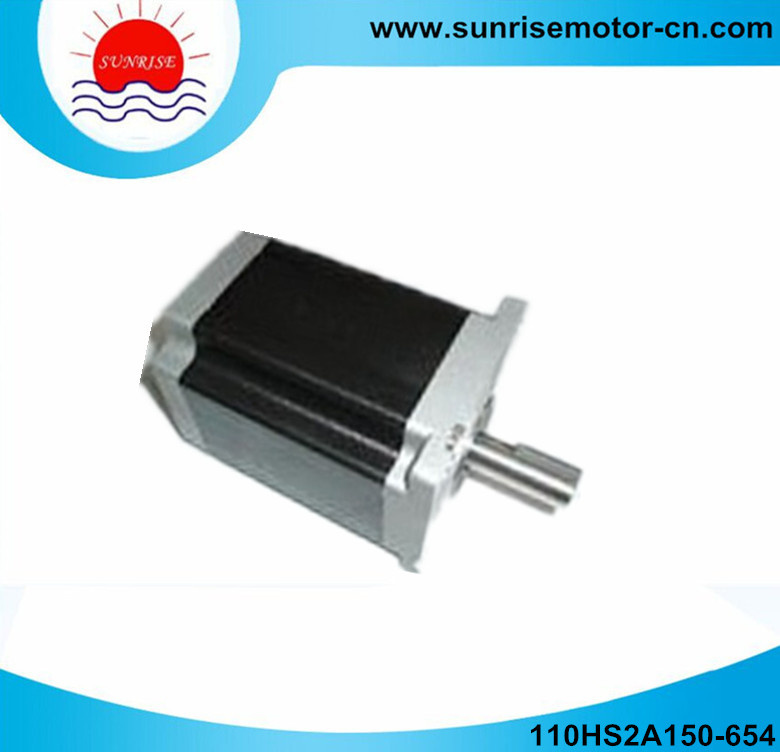

110hs2a150 21n. M 5A NEMA42 1.8deg. CNC Stepper Motor

Name: 110hs2a150 21n. M 5A NEMA42 1.8deg. CNC Stepper Motor
Brand: all-electronics-online.com
SKU: 670506985
Availability: InStock
Rating: 4.7 (52 reviews)

Price:	US $ 85.48-88.71/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	110HS2A150-654
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	110hs2a150-654
Holding Torque:	21n.Cm
Current:	6.5A
Resistance:	1.15ohms
Inductance:	18.9mh
Length:	150mm
Weight:	8.4kg
Wire:	8
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Certification:	SGS
Brand:	Sunrise Motor

Product Description

2Phase Hybrid Stepping Motor
1.8° NEMA42

Model: 110HS2A150-654
Holding torque: 21N. M
Current: 6.5A.
Resistance: 1.15ohms
Inductance: 18.9mH
Length: 150mm,
Weight: 8.4kg
Wire:4

Remark:
We can produce motor according to customer's requirements.

Motor specifications:

Model	Holding Torque (N@m±10%)	Current /Phase (A)	Resistance /Phase (ohms±10%)	Inductance /Phase (mH±20%)	Rated Torque (N@m)	Rotor Inertia (g-cm 2)	Length (mm)	Weight (Kg)
110HS2A100-504	12.7	5.0	0.95	15	12	5500	99	5.0
110HS2A150-654	21	6.5	1.15	18.9	20	11000	150	8.4
110HS2A165-604	26	6.5	0.65	14	24	13000	165	9.5

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
