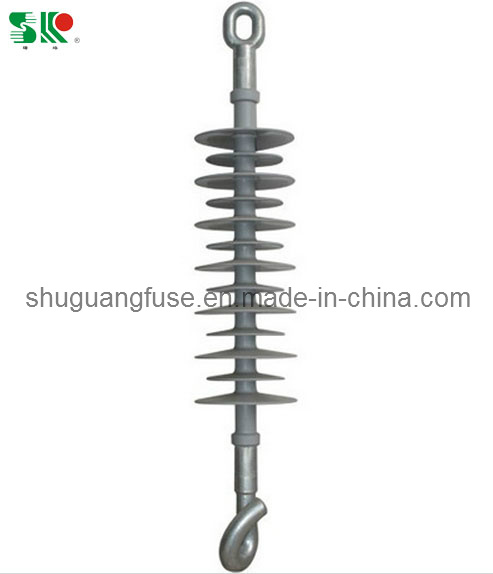

110kv 10kn Suspension Composite Polymer Post Insulators

Prod Model:	FZ-110/10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating Voltage:	110kv
Specialized Mechanical Tension Load:	10kn
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Connection Method:	Other
Size Of Bearing Capacity:	10kn
Certification:	ANSI
Color:	Grey

Product Description

Model: FZ-110/10
Manufacture and test Standard: IEC, ANSI, GB

Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop DIP galvanized cast steel for metal fittings

Key Specifications/Special Features:
*Rating voltage: 110kV
*Specialized mechanical bending load: 10KN
*Structure height: 1260mm
*Insulating distance: 1100mm
*Min creepage distance: 3150mm
*Lightning impulse voltage: 550kV
*Power frequency wet withstand voltage: 230kV


Condition Of Use
1. Ambient Temperature: -4 to +40
2. Altitude: Do not exceed 1000m; (1000m and above can be amend base on GB311.1-1997)
3. Frequency: Do not exceed 100Hz
4. Mechanical Load: Do not exceed the rated value of each product
