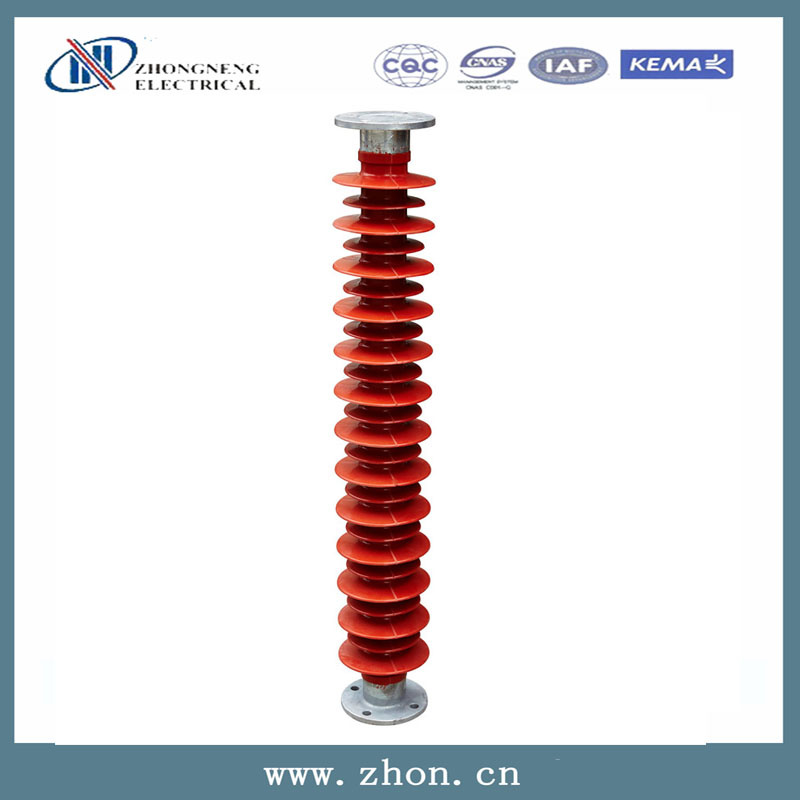

110kv Composite Post Insulator

Name: 110kv Composite Post Insulator
Brand: all-electronics-online.com
SKU: 829015095
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	US $ 98.5-109.99/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FZSW-110
Maximum Voltage:	>100kv
Chemistry:	Organic Insulation
Thermal Rating:	250 250
Certificate:	CNAS
Application:	Insulators
Material:	Composite Polymer
Structure:	Post Insulator
Type:	Soild
Size Of Bearing Capacity:	8kn
Brand:	Zhon
Color:	Red or Gray or as Per Customer's Requirement
Certification:	CNAS.Cnal

Product Description

Composite Suspension Insulator

Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.

Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking

Product Model	Rated voltage (kV)	Rated mechanical bending load (kN)	Structure height (mm)	Min. arcing distance (mm)	Min. nominal creepage distance (mm)	Diameter of shed (mm)	Uimp wts (peak) (kV)	Uw. 1min wts (peak) (kV)
FZSW-10/4	10	4	215	215	290	100/90	75	42
FZS-20/8	20	8	360	320	750	142	150	65
FZSW-35/6	35	6	450	360	946	148/118	180	95
FZSW-66/8	66	8	760	630	2010	220/190	410	185
FZSW-110/10	110	10	1220	1080	3530	220/190	500	230

Zhejiang Zhongneng Electrical Co., Ltd., located in Zhejiang Province, is the key medium/high voltage electric productive enterprise of FATO Mechanical and Electrical Equipment Group Co., Ltd.And a provincial advanced enterprise, mainly producing 220kV and below high voltage electro ceramic products, especially lightning arrester series, composite insulator series and drop-out fuse cutout series, and low-voltage surge protective device series.Our products have complete testing devices and strict quality and production management systems.Our products are known for the characteristics of solid power, advanced science and technology, considering service and solid quality.Moreover, for some core products, we have the independent intellectual property right.

Our corporation has the independent corporate capacity.Our progenitor is the division store of Suzhou Surge Arrester Co., Ltd.Which is founded in 1989, and after joined into FATO Mechanical and Electrical Equipment Group Co., Ltd.In 2003, we changed the name to Zhejiang Zhongneng Electrical Co., Ltd.

Zhejiang Zhongneng Electrical Co., Ltd.Is the professional over-voltage protectors manufacturing enterprise, and a member unit of China Electric Industry Association.We passed the certification of ISO9001 quality system and confirmed to standards such as IEC 60099-4, 61643-1, 291, 282 issued by international electric and industrial committee.Moreover, we have a long-term technical cooperation with many technical and research institutes and core enterprises in this industry line, and the qualities of our products can stand long-time decimation.

Following the technical and economical developing step, and the globalization process, in the merger process of global advantage resources, we constantly expect the cooperation coming from global partner.We are looking forward to cooperating with you!
