110mm 3phase Hybrid Stepper Motor with 12 N. M for CNC Machine

Name: 110mm 3phase Hybrid Stepper Motor with 12 N. M for CNC Machine
Brand: all-electronics-online.com
SKU: 676440202
Availability: InStock
Rating: 5 (104 reviews)

Price:	US $ 55-106/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	110H3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	3
NEMA:	110mm (NEMA42)
Step Angle:	1.2°
Holding Torque:	12 N. M
Number Of Stator:	Three-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Type:	Electromechanical
Certification:	CE and RoHS
Brand:	Jk

Product Description

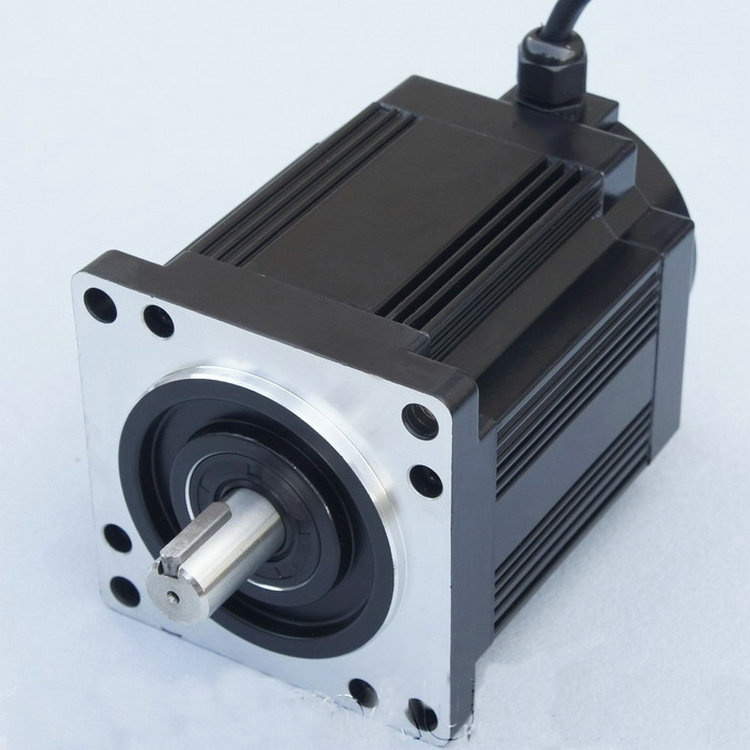

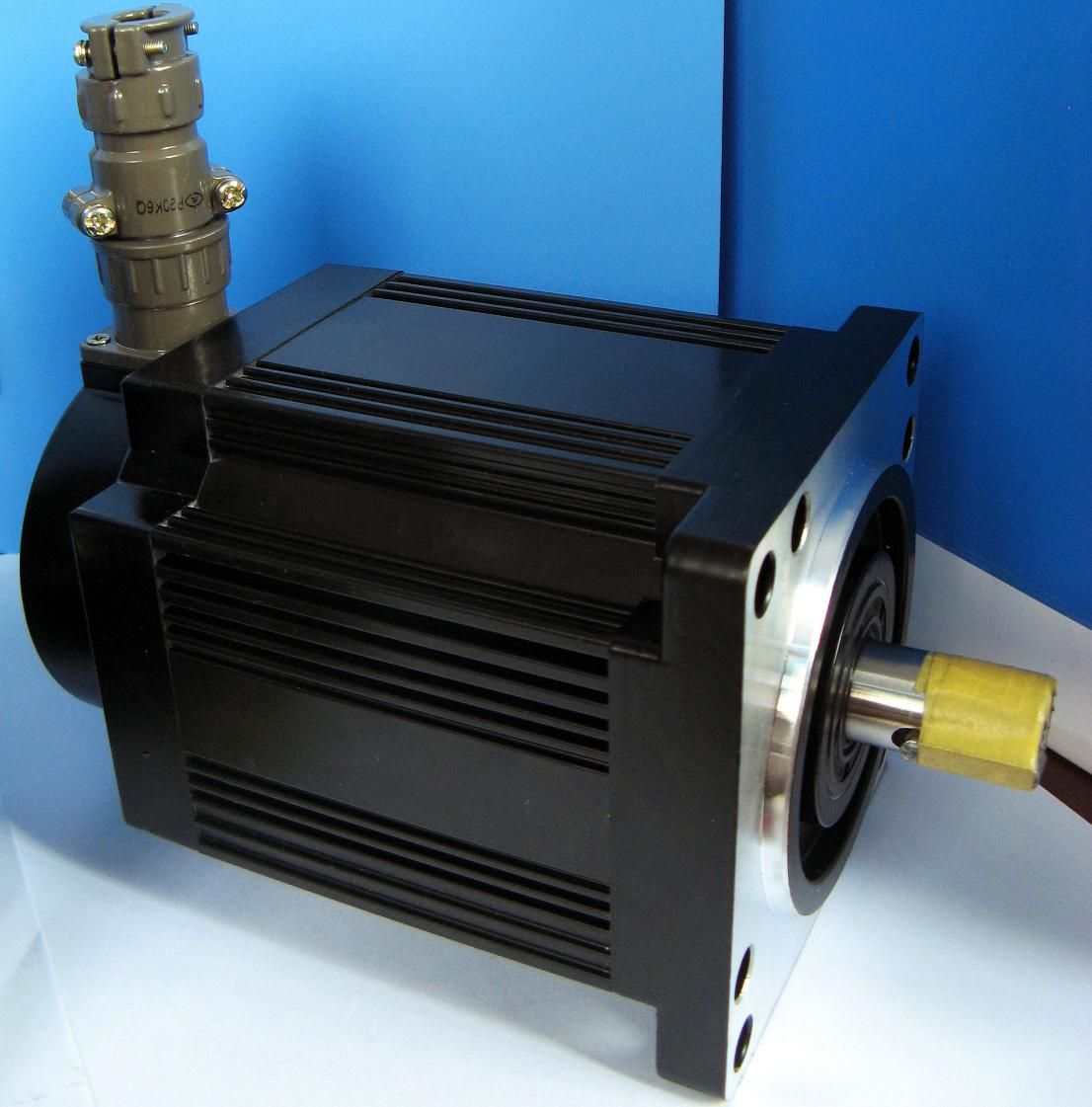

110mm 3phase Hybrid Stepper Motor with 12 N. M for CNC Machine

3 phase hybrid stepper motor, NEMA42 ,3 phase hybrid stepping motor
110mm 3phase hybrid stepping motors. 1.2 degree NEMA42 stepper motors.
we are also have stepper motor driver JK3M2208 for it .

Model	Step Angle	Drive voltage	Phase/ current	Phase/ resistance	Phase/ indutance	Holding torque	Weight	length
	degree	V	A	Ω	mH	N. m	Kg	mm
110BYGH3012	1.2°	80-325	3	2.0	12	12	10	150
110BYGH3018		80-325	3	1.8	11	18	12	202
110 BYGH3024		80-325	3	1.9	13	24	14	246
* *We can produce it according your requests.

Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 3000 square meters. Now we are already passed RoHS and CE testing.

We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.

We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.

We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor. Spindle motor,

For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.

Competotive price and high quality. Hope can cooperate with you.
