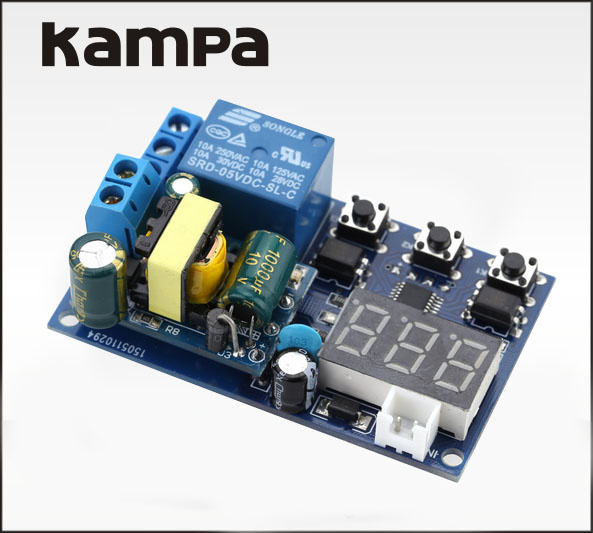

110V 220V 5A LED Display Self-Lock Trigger Cycle Delay Time Relay PLC Home Automation Delay Timer Switch Module

Name: 110V 220V 5A LED Display Self-Lock Trigger Cycle Delay Time Relay PLC Home Automation Delay Timer Switch Module
Brand: all-electronics-online.com
SKU: 824632115
Availability: InStock
Rating: 4.6 (30 reviews)

Price:	US $ 5.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KP005
Dimension:	64.2mm34.8mm18.5mm.
Timing Range(Settable):	0.1s to 999 Minutes
Signal Source:	10~16V
Output Capacity:	Can Control The Load Within DC 30V 3A or AC 220V 3
Static Current:	20mA
Working Current:	50mA
Working Temperature:	-40-85°c

Product Description

110V 220V 5A LED Display Self-lock Trigger Cycle Delay Time Relay PLC Home Automation Delay Timer Switch Module

Features:

New upgrades to simplify, meeting the users' needs.

Increase the power supply anti-reverse function.

The use of opto isolated input and output, enhanced anti-jamming capability and consumption.

The setting parameters can be memorized after power off.

Signal terminal voltage signal can be maintained for a long time.

To ensure stability, industrial grade PCB board.

Notice:

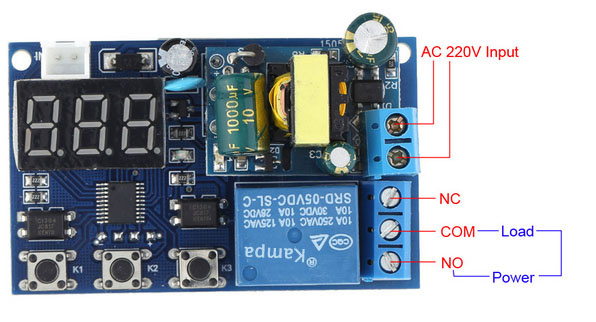

Relay output is passive contact without charge output, and it control the on and off of the line.

Working modes selection: after power on, long press K1 for 2s, later into the selection of modes: P1~4; K2 to enter the mode.

P-1: Monostable trigger delay, a signal to trigger relay, time is up, the relay disconnect;

P-2: A signal trigger and countdown begins, T1 seconds after, the relay open T2 seconds, then close;

P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set the relay time T1 and T2;

P-4: The relay opens when a signal triggers, when the trigger signal disappears, digital countdown begins, and the relay closes when the time is up.

Specifications:

Display: LED Digital Display

Timing Range(Settable): 0.1~99.9 seconds; 1~999 seconds; 1~999 minutes

Working Voltage: AC 110V-250V

Signal Source: Low Level Efficient

Output Capacity: Can Control the Load within DC 30V 5A or AC 220V 5A

Static Current: 20mA

Working Current: 50mA

Working Temperature: -40-85°C

PCB Size: 64 * 38 * 18mm / 2.52 * 1.5 * 0.7in (L * W * H)
