| Prod Model: |
YDS360 |
| Product: |
24V 15A Power Supply |
| Output: |
24V 15A |
| Power: |
360W |
| Adjustable Range Of Voltage: |
DC 24V-24.5V |
| Weight: |
740g |
| Certificate: |
Ce FCC RoHS |
| PCS/CTN: |
20PCS/40PCS/CTN |
| CTN Size: |
455*285*255/570*460*260mm |
| Gw/CTN: |
19.3/37.7kg |
| Inputtvoltage: |
AC 110V or 220V by Switch |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
301 - 400W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
FCC |
| Input Voltage: |
110V-240V |
| Brand: |
OEM |
Product Description

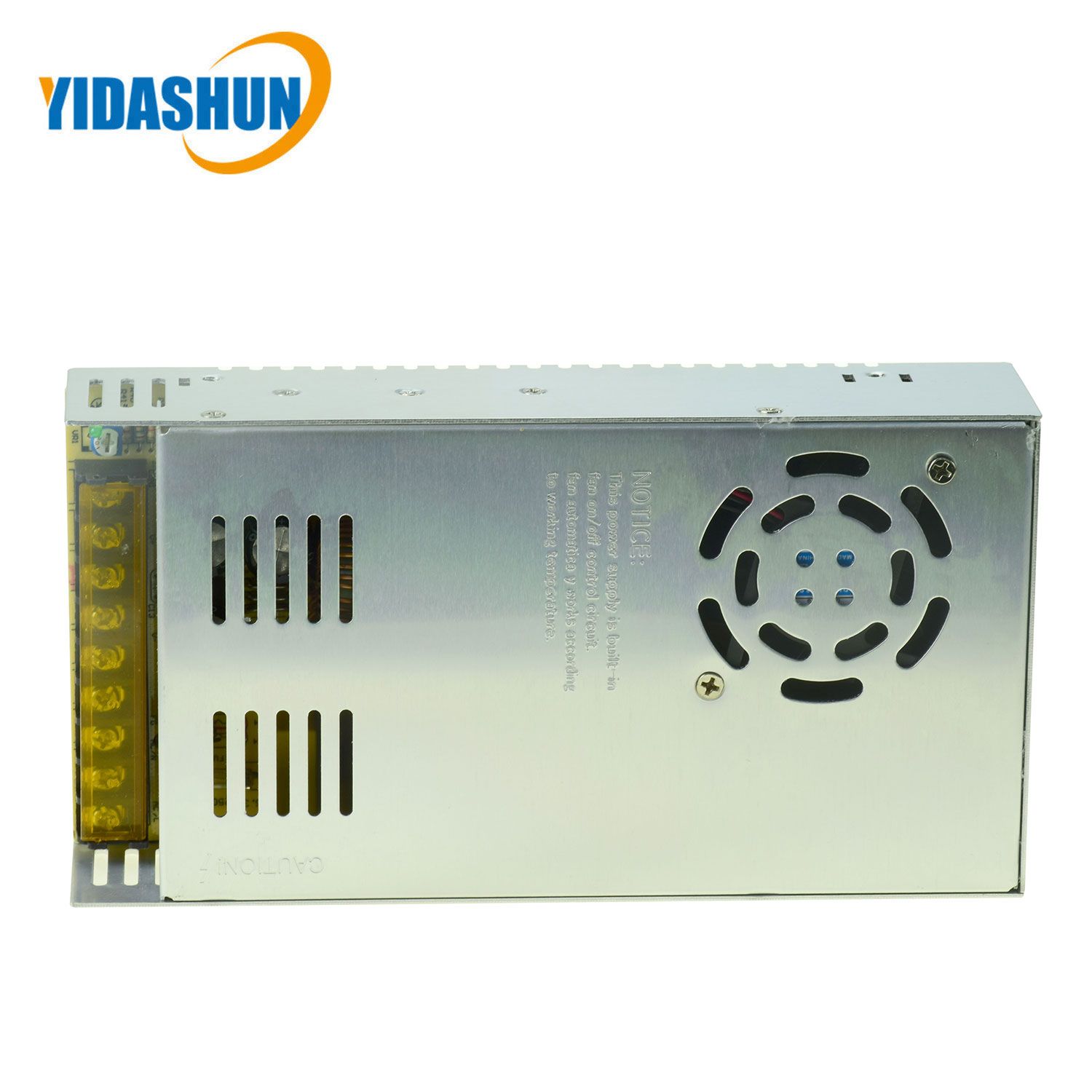

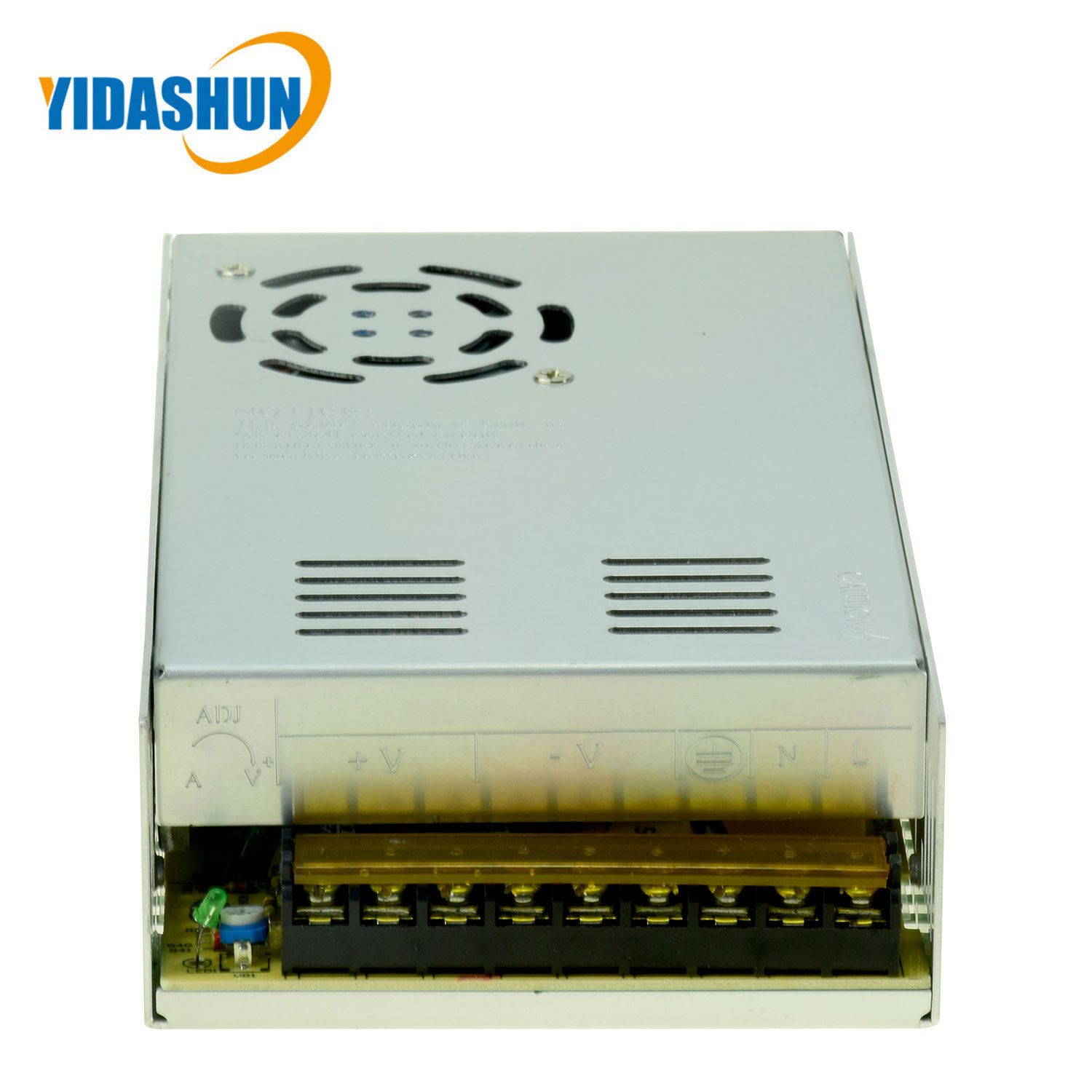

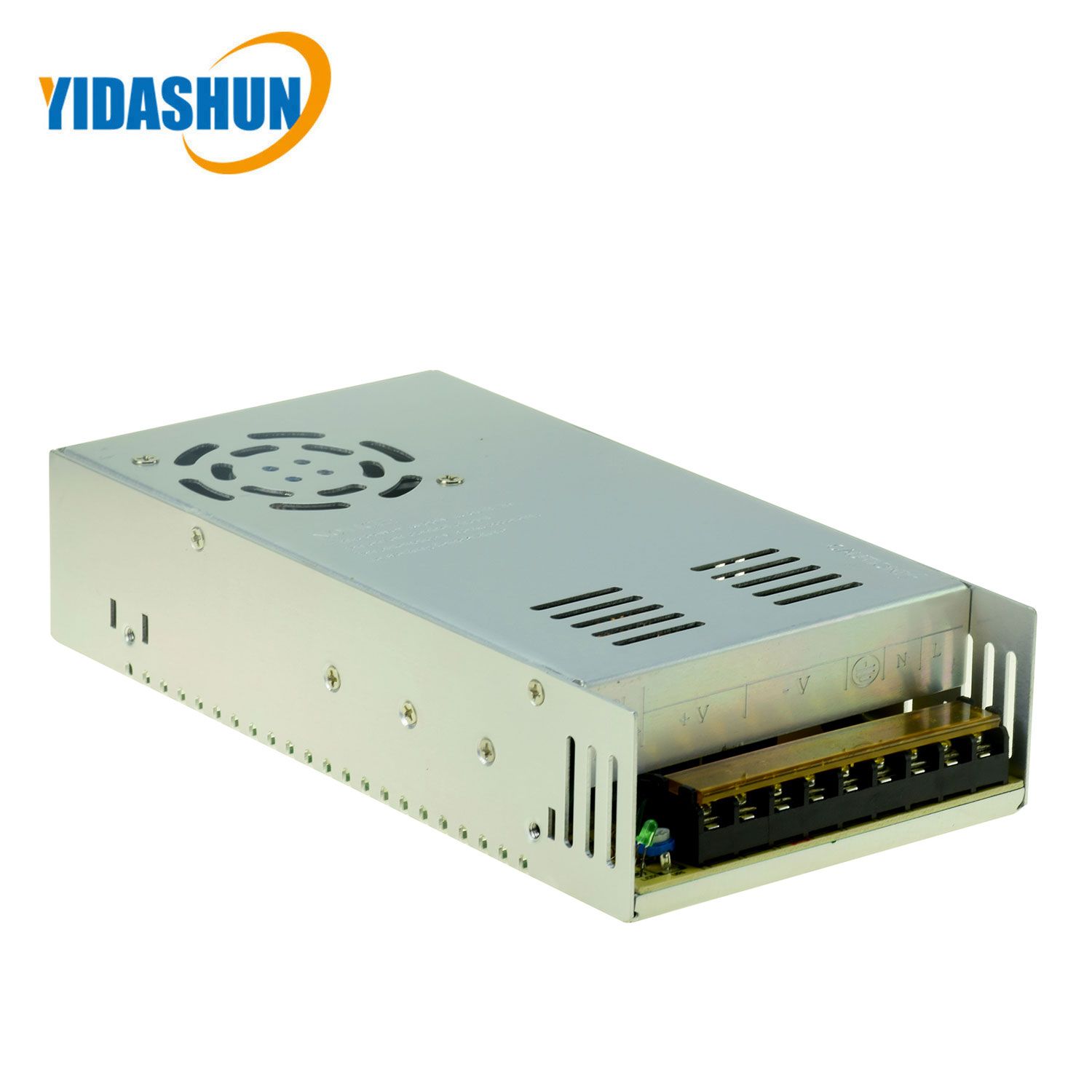

110V/220V AC DC led transformer 24V 15A 360W switching power supply Specification: | 24V 15A Technical Specification |
| Model No. | YDS360 |
| Input | Voltage | AC 110V or 220V(with switch) |
| Frequency | 50-60Hz |
| Output | Voltage | DC 24V |
| Current | 15A |
| Power | 360W |
| Typical Efficiency | 73% |
| Adjustable Range of Voltage | DC 24V-24.5V |
| Max. Ripple & Noise | 250mV |
| Protection | Over Load | 105-115% of Rated Output Power |
| Short Circuit | Protection Type: Auto Recovery |
| Electric Strength | High-pot test | 3KV AC |
| Environment | Working temperature and humidity | -10°C~+60°C,20~90%RH |
| Store temperature and humidity | 20°C~+85°C,10~95%RH |
| MTBF | >200K hrs.@25°C(MIL-HDBK-217F) |
| Warranty | 1 year |
| Feature | Dimension(L*W*H) | 215*113*48mm |
| Weight | 740g |
| Inner box size | 220*118*56mm |
| Inner box weight | 45g |
| PCS/CTN | 20/40PCS/CTN |
| CTN size | 455*285*255/570*460*260mm |
| GW/CTN | 19.3/37.7kg |
| Safety & EMC | Safety Standards | EN55015/EN61000-3-2/EN61000-3- |
package details: Each power supply into white box,then 50ps in one carton
Products features:♦ DC 24V 15A POWER SUPPLY - Input: AC 110/220V Switchable; Output: DC +24V (Adjustable±10%)15A ,Maximum Power:360Watts;
♦MULTIPLE PROTECTION - With Over-voltage Protection, Overload Protection, Overheating Protection and Prevent Short Circuit;
♦Widely Application: widely used in Industrial automation, LED display, led light,CCTV camera,3D Printer, communications
♦IN-DOOR use only! IP20 Non-waterproof.
Company information:About us:Shenzhen Yidashun Technology Co., Ltd. was founded in 2007.We are a manufacturer specialized in laptop adapter and ac dc power supply for 10 years. And dedicated to producing laptop adapter ,universal laptop adapter,AC DC power adapter, wall adapter , Metal case switching power supply for LED/CCTV ,car charger,USB wall socket, mobile charger&cable and so on. Our products with CE,FCC, ROHS, ERP,CB certificate. OEM/ODM orders are welcome. for more about us, you can visit our official website:www.ydspower.com
Our service:1.10 years focus on charger Research and development, Production;
2.For control the quality ,we have professional test from the raw material to finished products to control the quality seriously;
3.can offer wholesale Factory prices, After-sale guaranteed;
4.Flexible and fast delivery, bulk orders usually delivery within one weeks, General small batch orders can be arranged delivery within 2-5 days,cause we usually have large quantity of PCB in stock;
5. All our high quality adapters with OCP/OVP/SCP/OTP protection;
6.Full power: our charger with full output Voltage/current/Power;
7.Certificate:CE/FCC/ROHS
FAQ
1.Q: What is your MOQ?
A:we can accept small quantity for your trial order, like 50pcs tec.
2.Q: How about your prices? can you offer better prices?
A: We always offer our customers the most competitive factory price. if the quantity you need is big, we can offer you more discount prices.
3.Q: What's the package of your products?
A:usually brown box or in white box then into carton, we can customized the package as your demands.
4.Q: Can you print our logo on your new cases Or the package?
A: Yes, of course. We can print your artwork designs for example logo, company name, label etc as your request, and the MOQ depend on exact model. You can discuss it with us or send us the original artwork by email in JPG, TIF.
5.Q:Could I get a sample before making order?
A: Our company offers samples for quality test or other business purposes,but we kindly ask you to pay for samples and the freight.
6.Q:What is your production time?
A:Normally for small order 2-5 days,for big order in 7-10 days.
7.Q: How long will it take to deliver the goods?
A:For small order We usually ship the goods by DHL, UPS, FEDEX (take about 3-5 working days to the destination), for big order by sea or by air.
8..Q:What are the terms of payment you offer?
A:T/T, Western Union, paypal or cash.
welcome to send us inquiry at anytime! If you have skype, pls add my skype yidashun809 for direct talk!

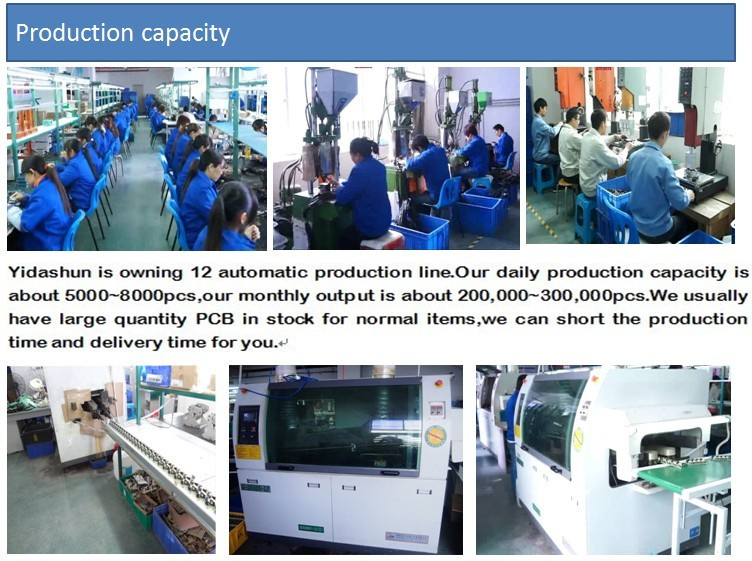

SHENZHEN YIDASHUN TECHNOLOGY Co., Ltd. Shenzhen Yidashun Technology Co., Ltd. Is a high-tech enterprise approved by government, dedicated to the R&D, manufacture and sales of laptop adapters, other AC/DC adapters, universal laptop adapters, swiching power supply and waterproof LED driver. The company is founded in 2007, it has a R&D team with 10 engineers, who can provide the whole solution of power adapters and power supplies for clients; Excellent sales team export our products to European and American countries, Middle East countries, HK, Southeast Asia countries and Oceania. The company is located in shenzhen, there are more than 300 staffs, owning more than 5, 000 square meters of development and production base.
Currently we start new projects selfie stick monopod, USB patch board and USB socket, we make our own special mould and our own color box to make them different in the market! And we offer cost prices to expand the market and support our each client! Welcome to inquiry!
QC Team: A QC team with more than 20 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.

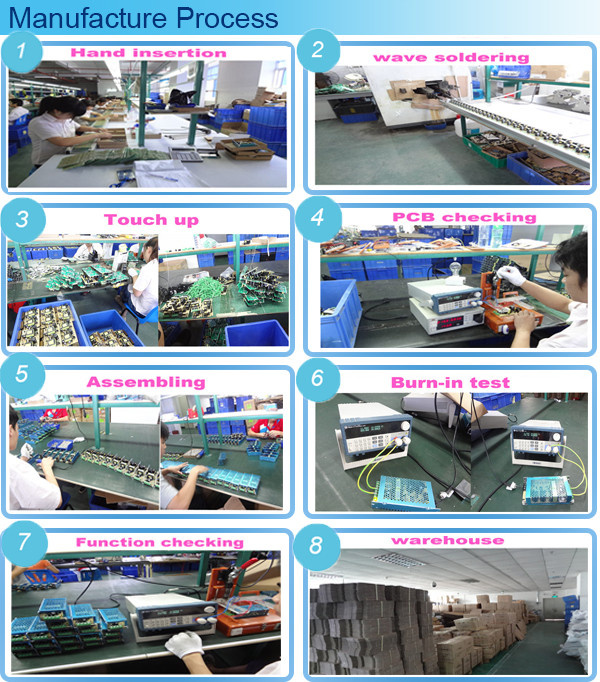

Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Cercificate: CE, RoHS, REACH, FCC, ERP, CB, GS, TUV, UL, cUL, CCC, PSE
WARRENTY
♥ Normal Production according to eth sample that confirmed by customers or customer's instruction. So please do give us right and confirmed instruction as well as check the sample carefully before you confirm.
♥ Should you need any assistance with product problems or for warranty claims please feel free to contact us. We are here 7 days a week to help. You will receive a prompt reply from us.
♥ If the product specification above is some different from what you required actually, pls kindly let us know the details, we will be pleased to re-offer you as per your requirement asps.
