110V 230V RGB Touch Remote Controller
| Price: |
US $ 22-25/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
YH-HC04 |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Material: |
Metal |
| Battery Type: |
AAA Battery |
| Type: |
RF Remote Control |
| Voltage: |
110V/230V |
Product Description
High Voltage LED Controller User manual (RF touch controller)
Summary:
The procuct is a smart LED controller using wireless RF touch remote control color and brightness variations of the high-pressure lamps.the choice of color,pattern and pace of change can be carried out by using the remote control RGB lamps;while dimming,power-down memory function.the appearance of fine products,easy to use and can meet the application requirements of a variety of high-pressure light bar.
Technical parameters: | Controller |
| Output channels(Optional) | R G B 3Channels |
| Supply voltage | AC 100-240V |
| Loadable current | 6A |
| Output power | 660W(AC110V)~1320W(AC220V) |
| Control method | RF touch remote control |
| Connection mode | Common anode |
| Changing pattern | 11 (7 static color modes,4 dynamic changing pattern) |
| Dimmering mothod | PWM |
| Grey steps | 8 |
| Protection | The power input polarity protection |
| Product size | L148×W83×H35 |
| Remote |
| Working voltage | DC 4.5V |
| Remote control way | RF 433.92Hz |
| Controlable distance | More than 20 meter |
| Battery types | Alkaline batteries,3pcs |
| Key Number | 5 Keys,1Touch of coler ring |
| Product size | L114×W56×H22 |
| Whole machine |
| Working temperature | -20~60 ºC |
| Ldentification | RoHS |
| Weight | 420g |
| Packing size | L168×W160×H42mm |
Features:
1.The newest PWM control technology,delicate light performance,no flicker.
2.More than 20 meters RF touch remote control distance.
3.Color mode changes and more flexible control.
4.Multi-type menory functions for color,modes,speed,and brightness.
5.Smart appearance,standard in put and output port,easy installation and high cost performance.
Applications:
1. Construction decoration:commercial buildings,airports or subways.
2. Indoor decoration:hotels,shopping malls,squares,restaurants,bars,houses.
3. Outdoor decoration:advertising boards,parks,bridges,roads and overpasses,scenic spots.
4. Others:decorating for motor vehicles,samples reveal ark and the places needing RGB lights.

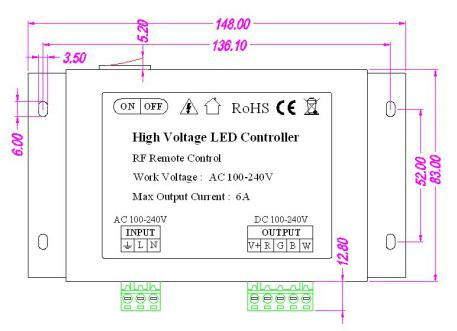

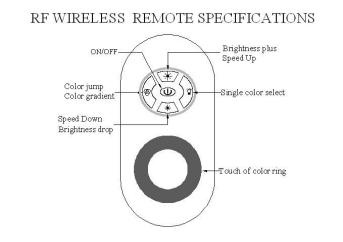

Panel and interface specifications and Product dimensions:
Modes table:| | Mode | | Mode |
| 1 | Static red | 1 | 3 base color jumpy changing |
| 2 | Static green | 2 | 7 base color jumpy changing |
| 3 | Static blue | 3 | 3 base color fade change |
| 4 | Static yellow | 4 | 7 base color fade change |
| 5 | Static cyan | | |
| 6 | Static purple | | |
| 7 | Static RGB | | |
The wiring and the typical product apply diagram:
Installing caution:
1.Please install the products by professional electrician.
2.This product can not waterproof,please put into water-proof tank if the clients want to use it outdoor.
3.Always be sure to mount this unit in an area that will allow proper ventilation to ensure a fitting temperature.
4.Please don't install this controller in lightening,intense magnetic and high voltage fields.
5.Check if the voltage and power adapter suit the controller and LED lights.
6.Please make sure the wires can sufficiently load the LED lights for avoiding accident.
7.Please make sure all the wires are connected correctly before switching on the power.
